4. Operating controls and functional elements

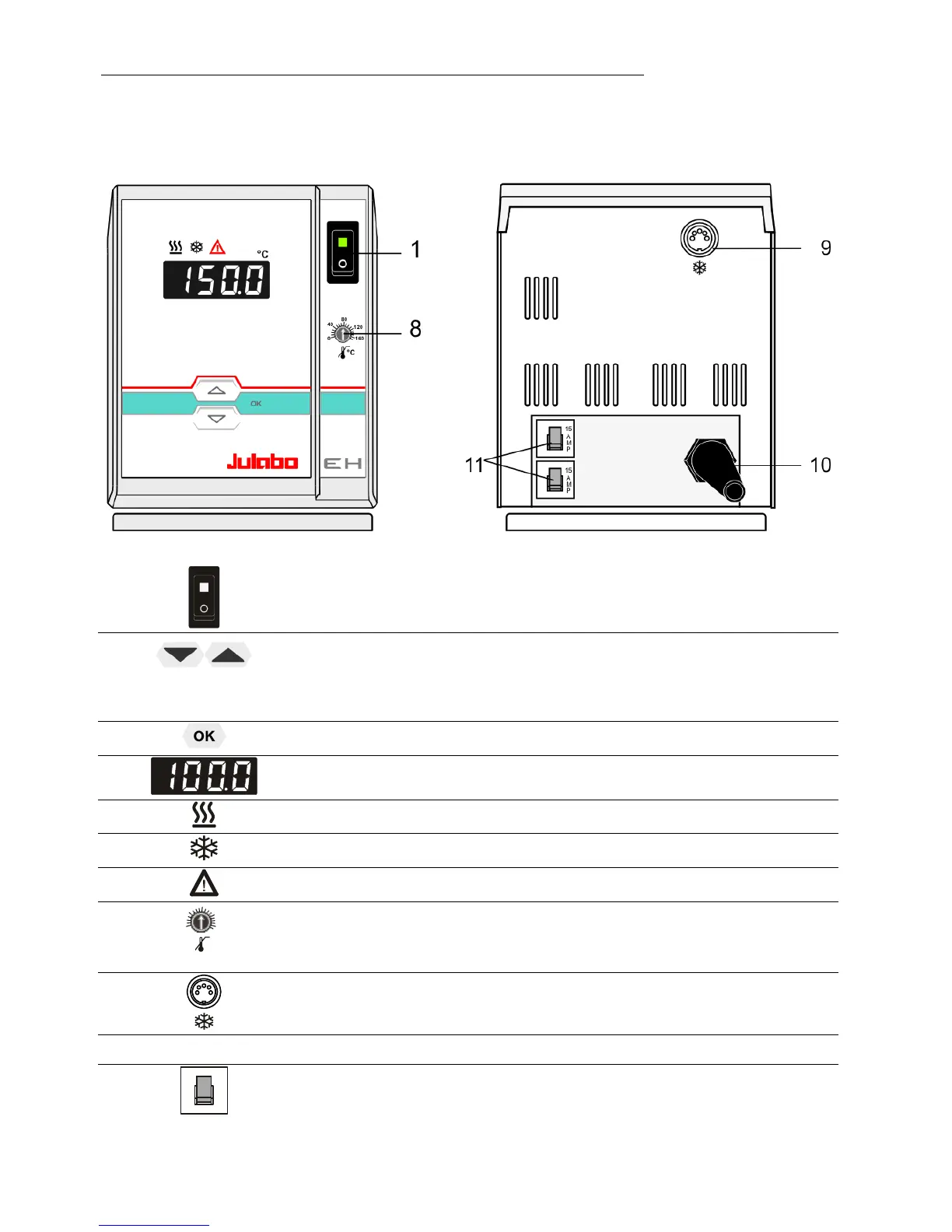

Front view Rear view
1 Mains power switch, illuminated
2 Edit keys
Setpoint increase or decrease
Press keys shortly for step-by-step changes,
Keep the keys pressed for fast change of setpoint
3
OK key (store)
4 LED temperature display, menu indication
5
Control indicator –Heating
6
Control indicator – Cooling
7 Control indicator – Alarm
8
°C
40
80
160
120
0
Adjustable excess temperature protection
according to IEC 61010-2-010
9 Socket: control cable of JULABO refrigerated circulator
or output for alarm messages
10 Mains power cable with plug
11
15
A
M
P
Mains fuses: Safety cutout 15 A
