Remote control
/ Control output
The
connector may be used for control of JULABO refrigerated
circulators or as output for alarm messages.

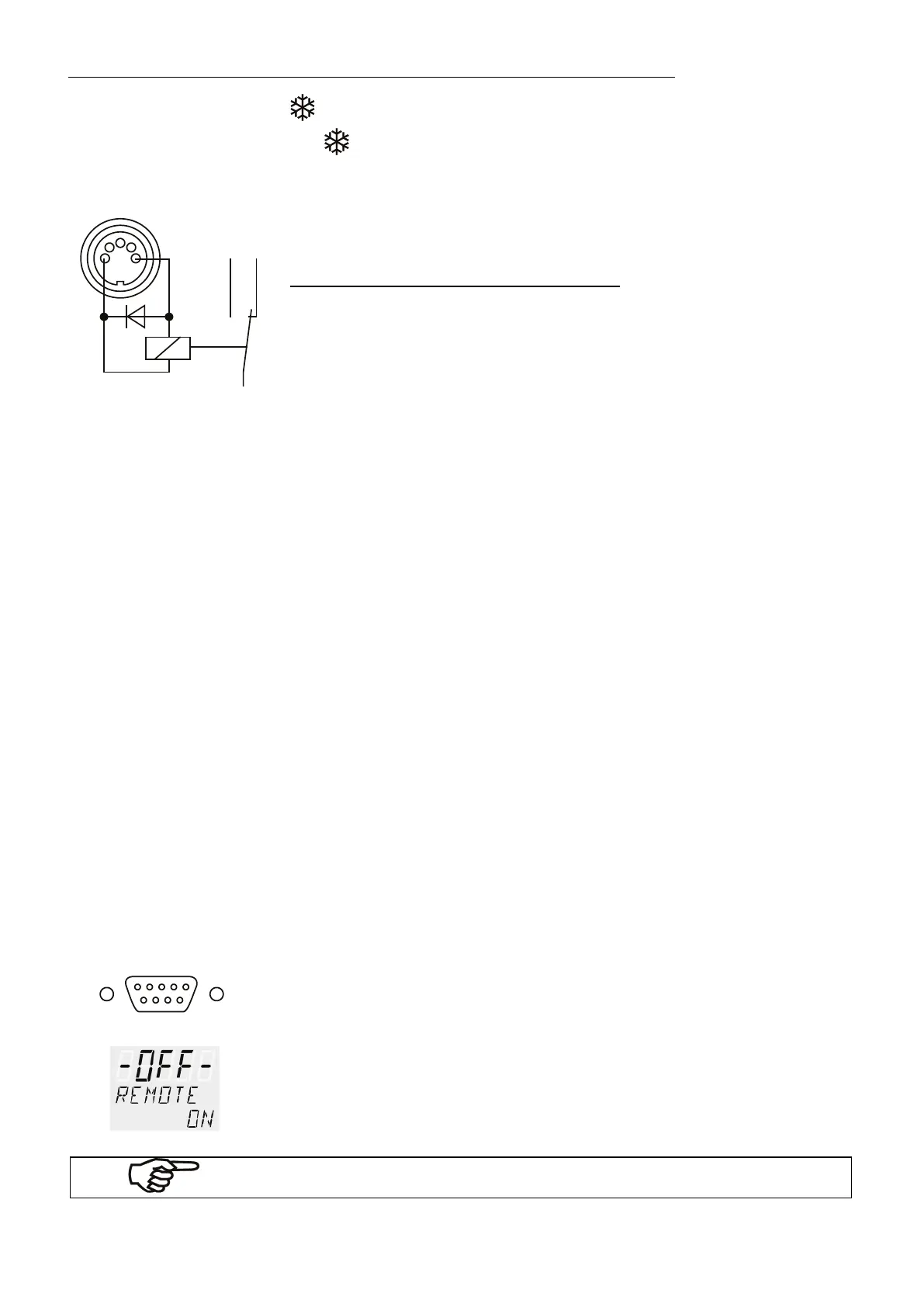

Circuit: Operation = relay powered
Alarm = relay not powered
Pin assignment:
Pin Signal
1 +24 V (I max. current 25 mA)
2 0 V
3 Alarm relay
4 Reserved - do not use!
12. Remote control
12.1. Setup for remote control
RS232C
1. Check the interface parameters for both interfaces (on circulator and PC)
and make sure they match.
(Serial interface refer to page 42)
2. In the menu > MENU CONFIG < set the menu item > REMOTE < to
> ON < .
3. Connect both units with an interface cable..
Like all parameters which can be entered through the keypad, interface
parameters are stored in memory even after the circulator is turned off.
