Easytech - planting
}
}
AVAILABLE TO
THE OPERATOR
AVAILABLE ONLY FOR
AUTHORIZED TECHNICIANS
ATTENTION:
Only The basic and necessary congurations are accessible to the Easytech system user. The other
congurations are protected by passwords so that the equipment misuse does not occur. Only authorized and
properly trained and qualied Technicians can have access to the respective changes.
4.1 - Test Mode - RPM off Motors
The motors test mode serves to analyze if the hydraulic motors operation and rotation sensors (encoder) are
operating correctly with the machine stopped (static tests).
That test is also important to analyze if the tractor ow is being enough to command the motors.
To start the test, just select the motor you intent to operate and change the “working mode” state to “tests
mode” (the tractor hydraulic system must be powered on in working rotation).
ATTENTION:
When selecting the motor you intend to operate, make sure that there is nobody nearby to prevent
accidents.
As soon as the test is concluded, return to the “working mode”. It will be extremely important for the
implement good operation.

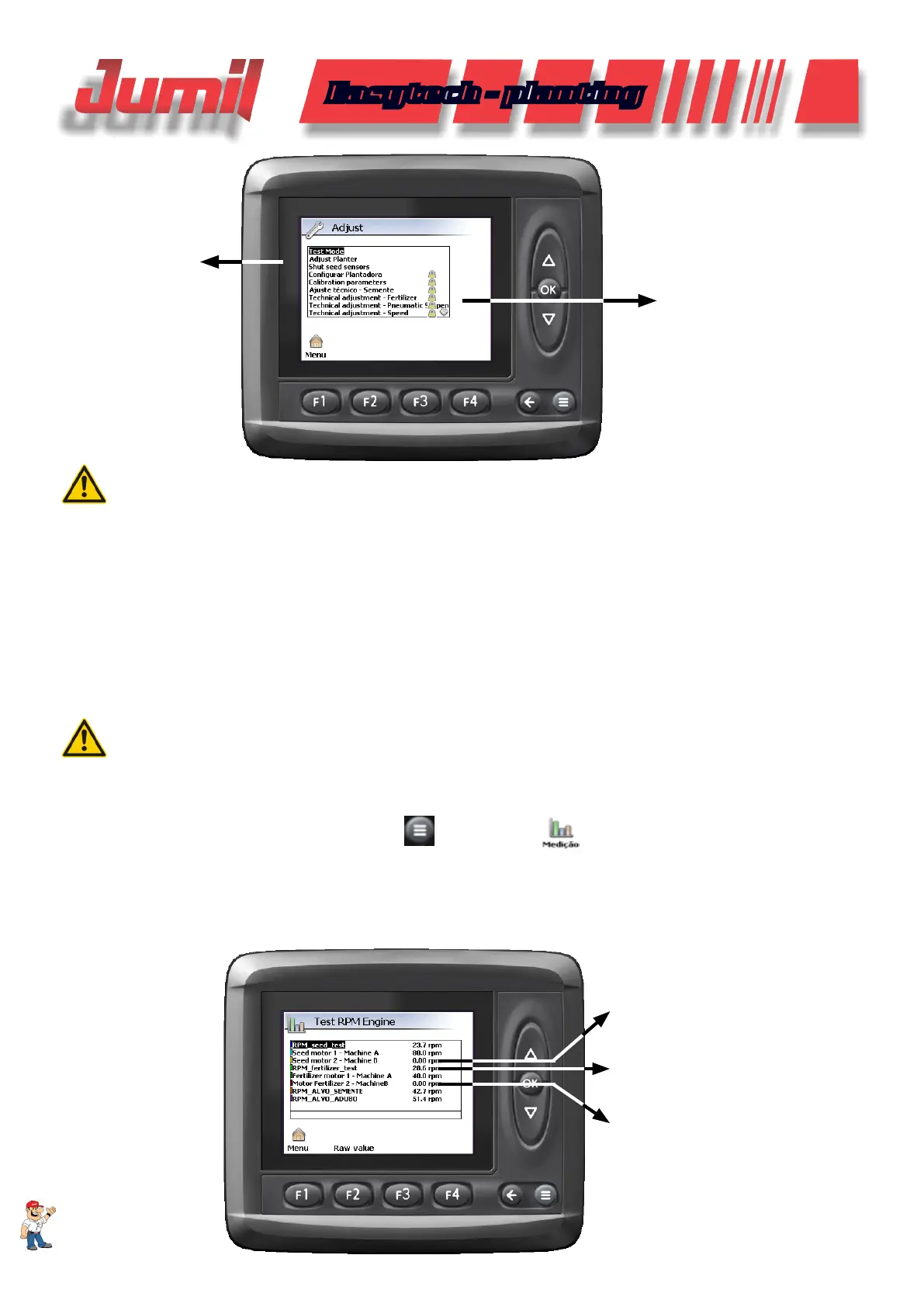

To analyze the encoders reading, go to
, then click on Measurement and select the option Test
motors RPM.
In this measurement, you can observe problems such as lack of ow in the tractor hydraulics (practical RPM
does not reach the theoretical RPM) or problems with the encoder reading (practical RPM zero or oscillating with the
motor in xed rotation).
In the display, both practical RPM and theoretical RPM are displayed, established by comparing the system
functionality.
PROBLEM OF
ENCODER
READING
PROBLEM OF
ENCODER
READING
PROBLEM OF
HYDRAULIC FLOW
(if not reach)
SYSTEM CONFIGURATION
