JUMO diraTRON 108 Brief Instructions

3 Electrical connection
18

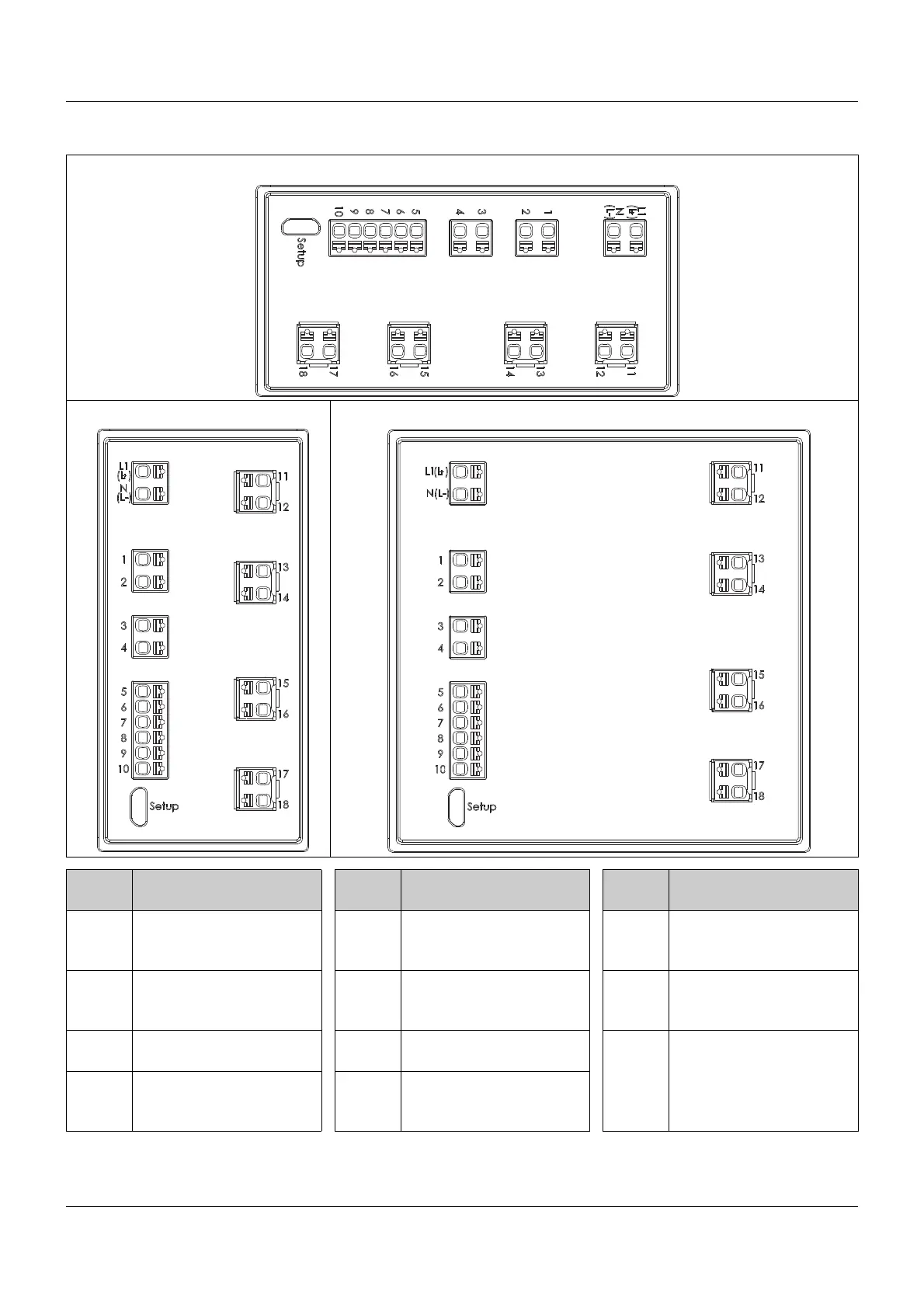

Types 702112 (format 108H), 702113 (format 108Q), 702114 (format 104)
Type 702113 (96 mm × 48 mm)
Type 702112 (48 mm × 96 mm) Type 702114 (96 mm × 96 mm)
(1)
(2)
(3)(4)
(1)
(2)
(3)
(4)
(1)
(2)
(3)
(4)
Termi-
nals
Connection Termi-
nals
Connection Termi-
nals
Connection
1, 2 Output 1 (relay) 9, 10 Input 1 (for potential-free
contact) or output 3 (logic
output)
17, 18 (4) = option 4: output 7 (re-
lay, logic output or
PhotoMOS
®
relay)
3, 4 Output 2 (relay) 11, 12 (1) = option 1: output 4
(logic output) or RS485 in-
terface
L1(L+),
N(L-)
Voltage supply
5-8 Analog input 13, 14 (2) = option 2: output 5 (re-
lay, logic or analog output)
Setup
(USB)
PC (setup program)
8, 10 Input 2 (for potential-free
contact)
15, 16 (3) = option 3: output 6 (re-
lay, logic output or
PhotoMOS
®
relay)
