JUMO diraTRON 132 Brief Instructions

13

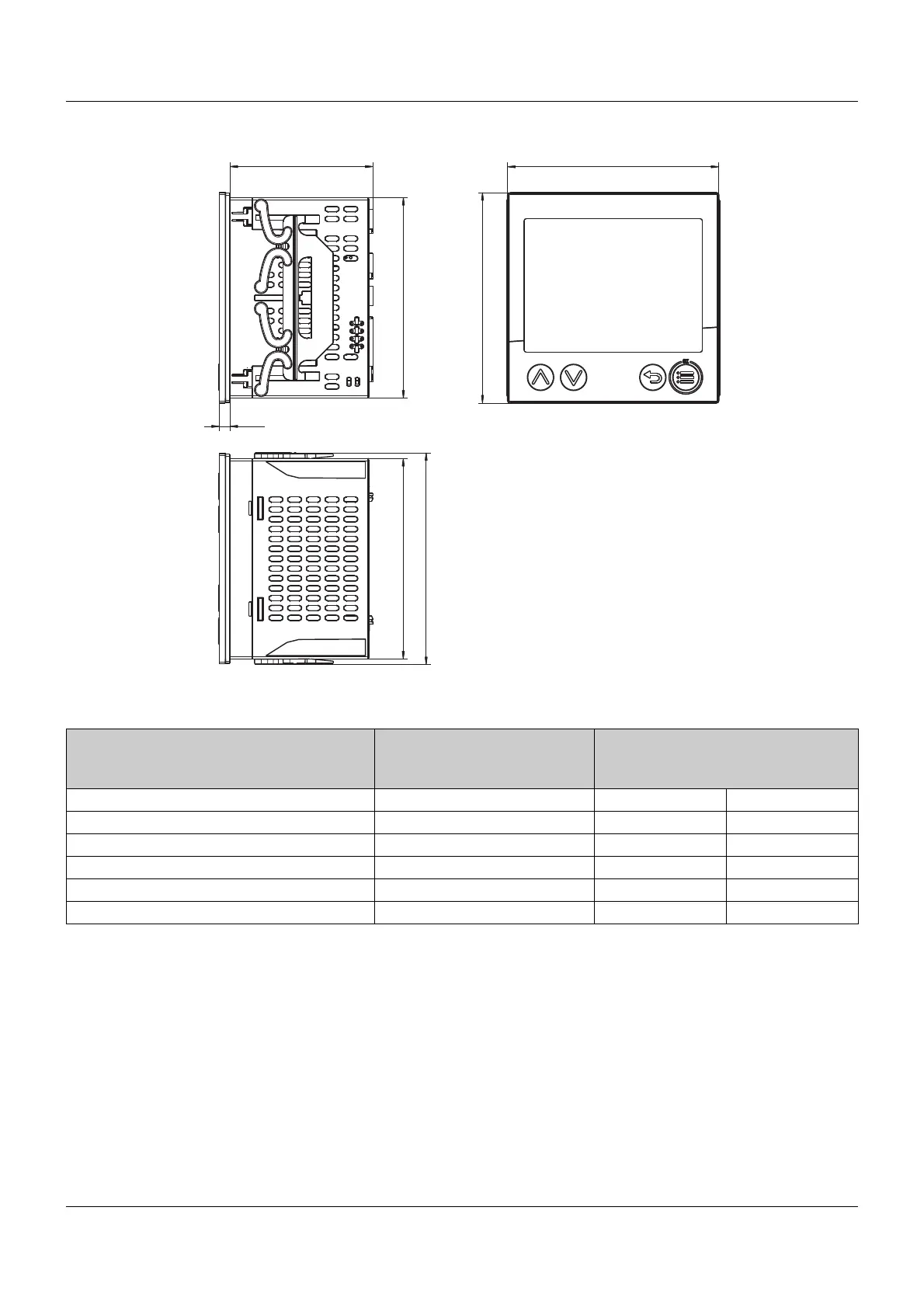

2 Mounting
Type 702114 (format 104: 96 mm × 96 mm)
Panel cut-out according to DIN IEC 61554
91.5
65
4.8
96
96
96.7 91.5
Type (format; front frame dimensions) Panel cut-out
(width x height)
Minimum spacing of panel cut-
outs (for tightly packed installa-
tions)
Horizontal Vertical
702110 (132; 48 mm × 24 mm) 45
+0.6
mm × 22.2
+0.3
mm 15 mm 30 mm
702111 (116; 48 mm × 28 mm) 45
+0.6
mm × 45
+0.6
mm 15 mm 30 mm
702112 (108H; 48 mm × 96 mm) 45
+0.6
mm × 92
+0.8
mm 20 mm 30 mm
702113 (108Q; 96 mm × 48 mm) 92
+0.8
mm × 45
+0.6
mm 20 mm 30 mm
702114 (104; 96 mm × 96mm) 92
+0.8
mm × 92
+0.8
mm 20 mm 30 mm
