4 Operation
4 Operation
The device is configured, parametrized, and operated using the four buttons on the front. A setup pro-
gram is also available for convenient configuration of the device using a PC. Some functions can only
be configured with the setup program.
The individual parameters for device setting are organized in different levels that can be inhibited. The
level inhibit helps to prevent accidental or unauthorized operation.

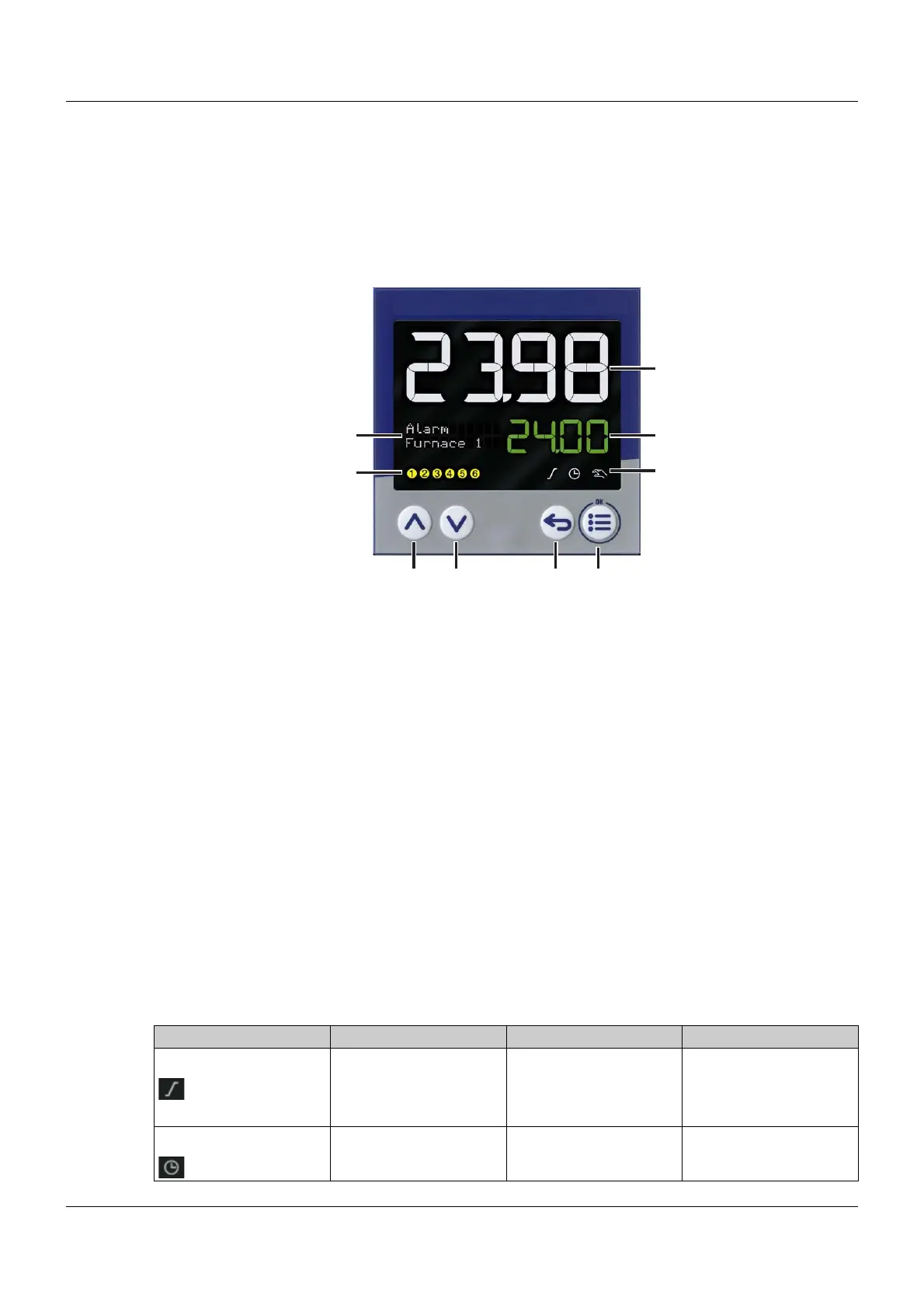

4.1 Display and control elements
(1) 18-segment LCD display (e.g. actual value), 4-digit, white;
for types 702110 (132) and 702111 (116) also for displaying menu items, parameters and text)
(2) 18-segment LCD display (e.g. setpoint value), 4-digit (702110 (132): 5-digit, 702111 (116): 8-digit),
green;
for types 702110 (132) and 702111 (116) also for displaying menu items, parameters, values and
text);
display "OK" when exiting editing mode (with change)
(3) Activity display for ramp function/program, timer, manual mode
(4) For types 702112 (108H), 702113 (108Q) and 702114 (104): pixel matrix LCD display for displaying
menu items, parameters and values as well as customer-specific text
(5) Switching of the digital outputs (yellow = active)
(6) Up (in the menu: increase value, select previous menu item or parameter; in basic status: increase
setpoint value)
(7) Down (in menu: reduce value, select next menu item or parameter; in basic status: reduce setpoint
value)
(8) Back (in menu: back to previous menu level, exit editing mode without change; in basic status: con-
figurable function)
(9) Menu/OK (call up main menu, switch to submenu/level, switch to editing mode, exit editing mode
with change)
Symbols (activity displays)
(1)
(2)
(3)
(4)
(5)
(6) (7) (8) (9)
Symbol Off Lights up Flashes
Ramp function/program Ramp function or pro-
gram controller is not ac-
tive and also not
configured
Ramp function or pro-
gram controller is config-
ured but not active
Ramp function or pro-
gram controller is active
Timer Timer is not active and
also not configured
Timer is configured but
not active
Timer is active (running)
