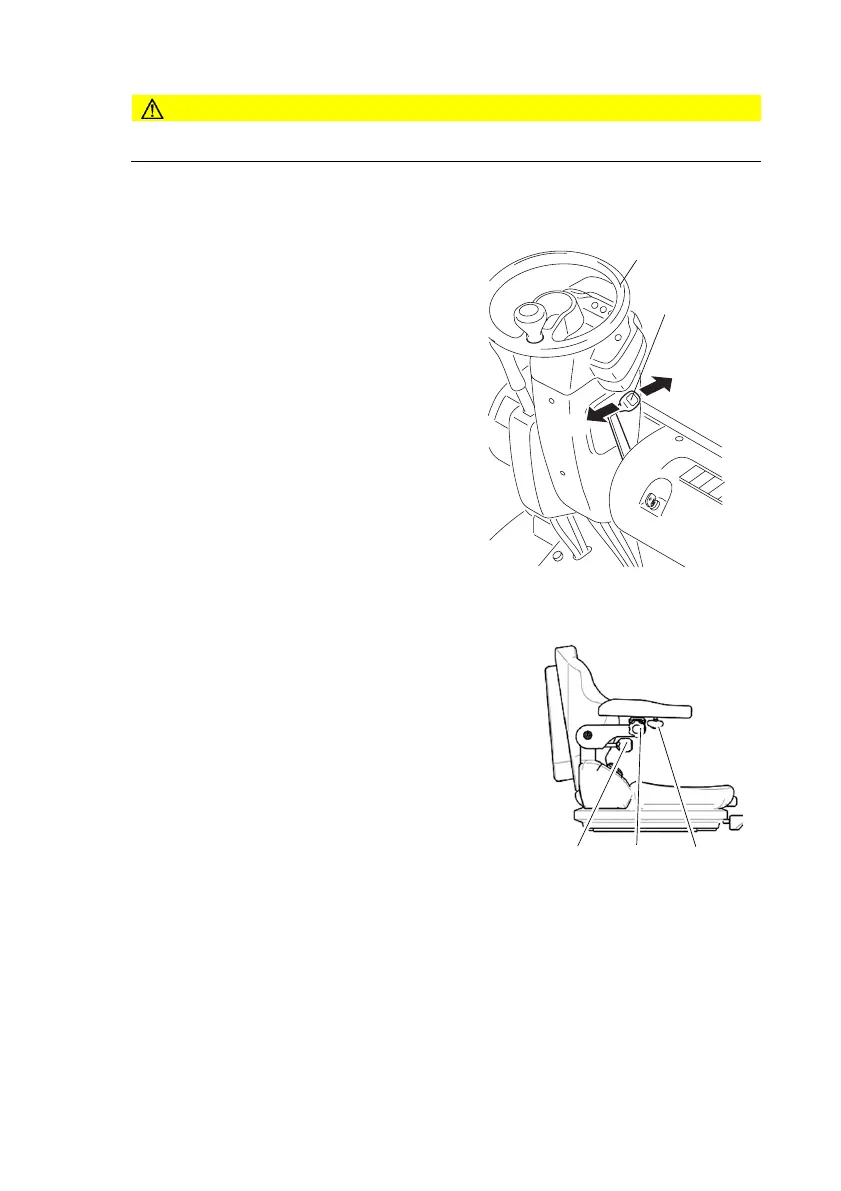

3.4.2 Adjusting the steering wheel / steering column
CAUTION!
Do not adjust the steering wheel while travelling
Individual steering wheel position
Z The tilt of the steering wheel can adjusted to suit the operator.
Procedure
• Pull the steering wheel adjusting lever
(103) in the direction of the arrow (105).
• Tilt the steering wheel (3) forward or
backward as required.
• Push the steering wheel adjusting lever
(104) in the direction of the arrow.
3.4.3 Adjusting the armrest (o)
Procedure
• Loosen the screw (106) and tilt the armrest up
or down.
• Re-tighten the screw (106).
• Loosen the screw (107) and set the armrest
vertical.
• Re-tighten the screw (107).
• Loosen the screw (108) and set the armrest
horizontal.
• Re-tighten the screw (108).
The armrest is now positioned.
