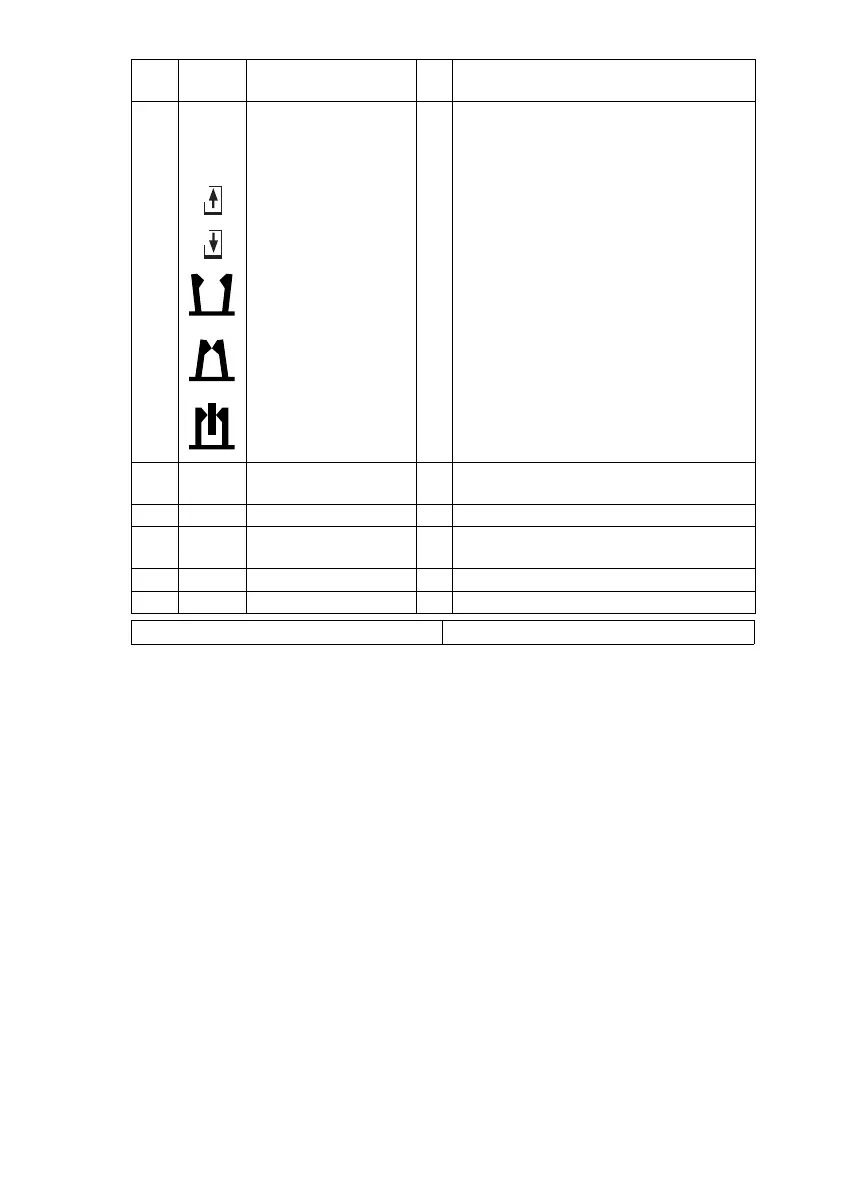

E 3
1005.USA
14 Display for
“Overall lift”
“Referencing re-
quired” display: Main
lift - lift
Main lift - lower
Pallet clamp
open
Pallet clamp
closed
Pallet clamped
t Displays the height of the forks
Requests operating position to raise
Requests operating position to lower
Appears when the pallet clamp is open
Flashes when the pallet clamp is closed
but the pallet is not clamped.
Appears when a pallet is clamped
15 Display for
service hours
t Displays the number of service hours
since the truck was commissioned
16 “Time” display t Shows the time
17 Battery discharge-
indicator
t Displays the battery charge condition
(residual capacity as a percentage)
20 Option o
21 Option o
RG = Rail guidance WG = Wire / inductive guidance
Item Symbol Control /
Display
Function
E 3
1005.USA
14 Display for
“Overall lift”
“Referencing re-
quired” display: Main
lift - lift
Main lift - lower
Pallet clamp
open
Pallet clamp
closed
Pallet clamped
t Displays the height of the forks
Requests operating position to raise
Requests operating position to lower
Appears when the pallet clamp is open
Flashes when the pallet clamp is closed
but the pallet is not clamped.
Appears when a pallet is clamped
15 Display for
service hours
t Displays the number of service hours
since the truck was commissioned
16 “Time” display t Shows the time
17 Battery discharge-
indicator
t Displays the battery charge condition
(residual capacity as a percentage)
20 Option o
21 Option o
RG = Rail guidance WG = Wire / inductive guidance
Item Symbol Control /
Display
Function
