Jungheinrich EKS 314 User Manual

E 45
1005.USA
5.13.2 Adjust the steering angle
QwW The battery must be
disconnected when adjusting
the steering angle.
QwK Remove the electronic
compartment cover at the back.
Using an Allen key set the steered wheel
to the required direction via the screw in
the steering motor (63).
NOTICE It is advisable to relieve the
wheel by lifting / jacking up the
truck if setting an angle greater
than 4 degrees.
5.13.3 Emergency recovery in drive di-
rection:
QwK Remove the electronic
compartment cover at the
back.
– Release the magnetic brake
– Guide the tow rope (67), tow force
> 5 tons, around the counter-
weight (65) by the left or right
sides of the antenna (66).
IMPORTANT Note the wire routing in the
drive compartment and the
antenna (66)!
– Carefully and slowly pull the truck
out of the narrow aisle.
QwW After recovery, prevent the truck from accidentally moving.
To do this, unscrew the setscrews on the magnetic brake above the drive
motor. If the brake is not working, place blocks or chocks underneath the
wheels of the truck to prevent it from moving.

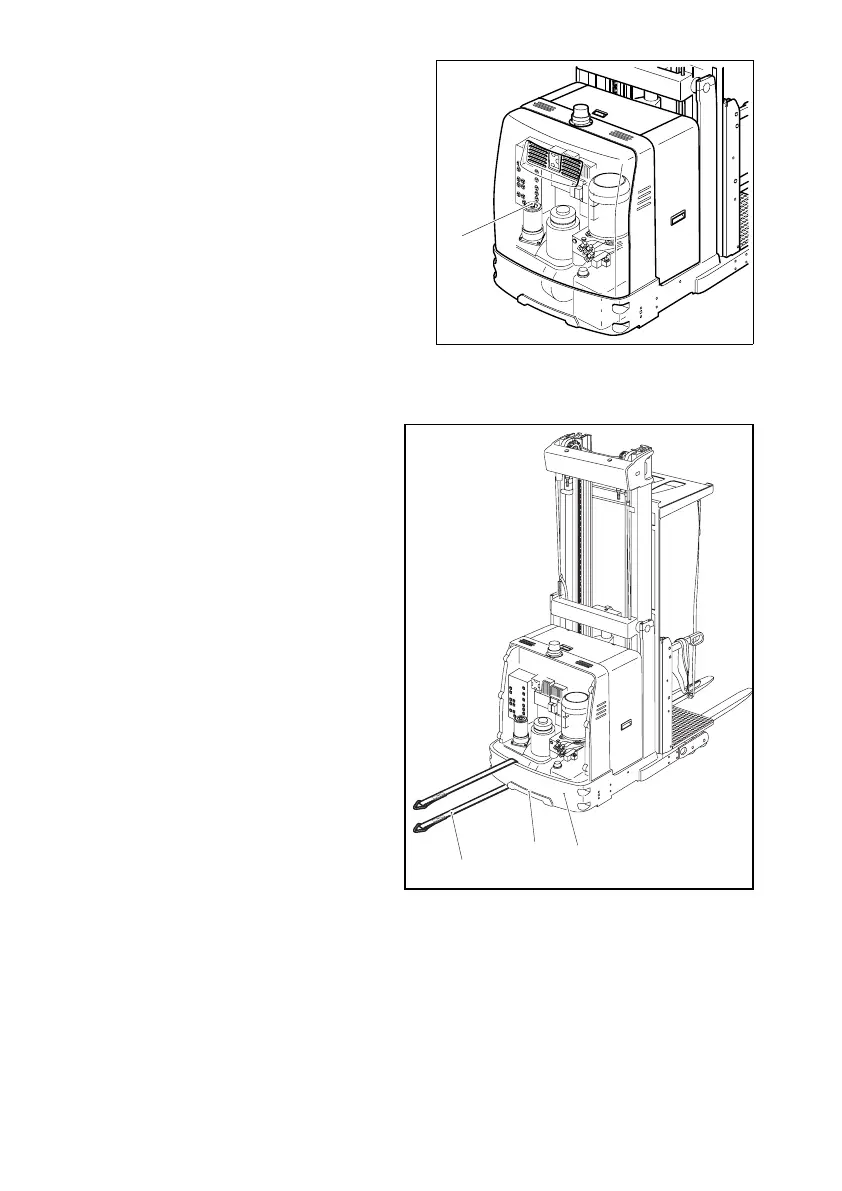

63
66
67
65
E 45
1005.USA
5.13.2 Adjust the steering angle
QwW The battery must be
disconnected when adjusting
the steering angle.
QwK Remove the electronic
compartment cover at the back.
Using an Allen key set the steered wheel
to the required direction via the screw in
the steering motor (63).
NOTICE It is advisable to relieve the
wheel by lifting / jacking up the
truck if setting an angle greater
than 4 degrees.
5.13.3 Emergency recovery in drive di-
rection:
QwK Remove the electronic
compartment cover at the
back.
– Release the magnetic brake
– Guide the tow rope (67), tow force
> 5 tons, around the counter-
weight (65) by the left or right
sides of the antenna (66).
IMPORTANT Note the wire routing in the
drive compartment and the
antenna (66)!
– Carefully and slowly pull the truck
out of the narrow aisle.
QwW After recovery, prevent the truck from accidentally moving.
To do this, unscrew the setscrews on the magnetic brake above the drive
motor. If the brake is not working, place blocks or chocks underneath the
wheels of the truck to prevent it from moving.
63
66
67
65
