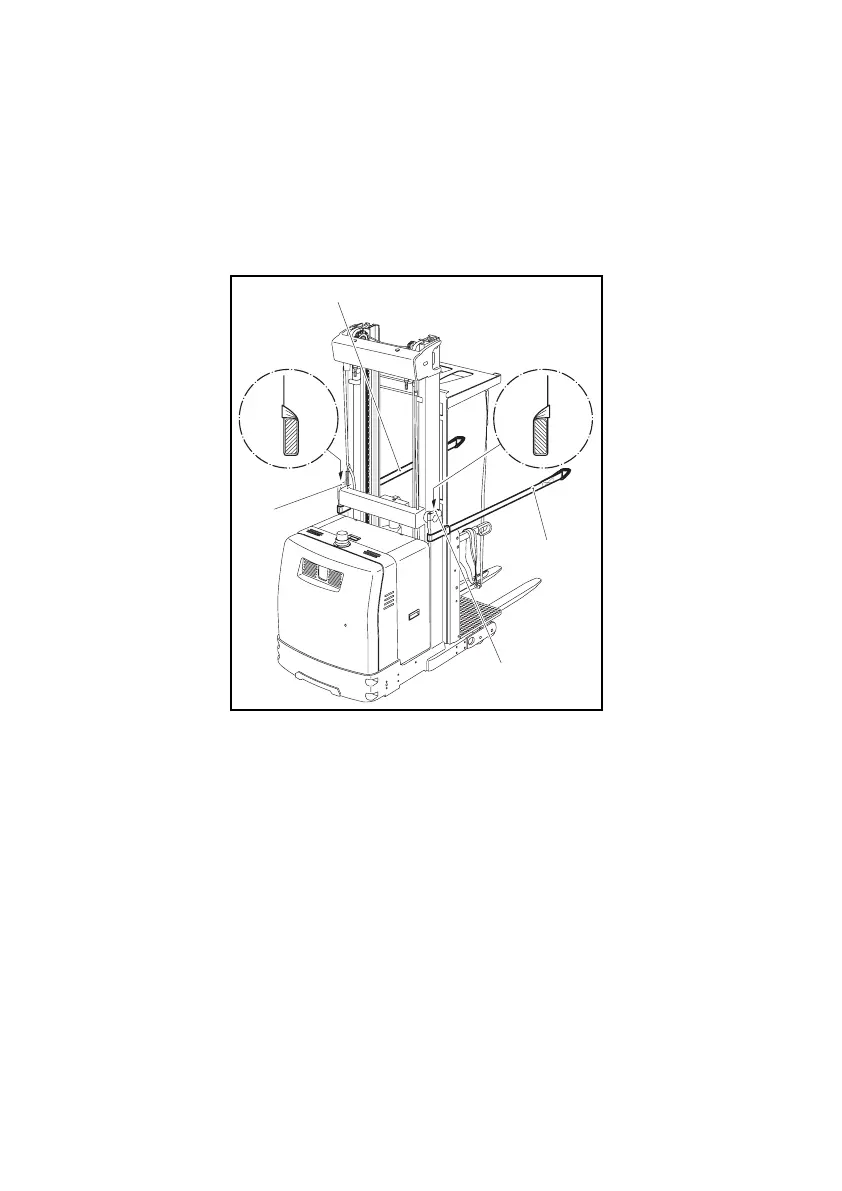

5.13.4 Emergency recovery in load direction
QwK Remove the electronic compartment cover at the back.
– Release the magnetic brake
– Lower the driver’s position carriage and attach the tow rope (70), tow force > 5 tons
to both mast suspensions (68,69).
– Guide the tow rope (70) around the side of the driver’s position carriage above the
safety gates at the front in the load direction.
– Carefully and slowly pull the truck out of the narrow aisle.
QwW After recovery, prevent the truck from accidentally moving.
To do this, unscrew the setscrews on the magnetic brake above the drive
motor. If the brake is not working, place blocks or chocks underneath the
wheels of the truck to prevent it from moving.
70
69
68
70
1005.USA
E 46
5.13.4 Emergency recovery in load direction
QwK Remove the electronic compartment cover at the back.
– Release the magnetic brake
– Lower the driver’s position carriage and attach the tow rope (70), tow force > 5 tons
to both mast suspensions (68,69).
– Guide the tow rope (70) around the side of the driver’s position carriage above the
safety gates at the front in the load direction.
– Carefully and slowly pull the truck out of the narrow aisle.
QwW After recovery, prevent the truck from accidentally moving.
To do this, unscrew the setscrews on the magnetic brake above the drive
motor. If the brake is not working, place blocks or chocks underneath the
wheels of the truck to prevent it from moving.
70
69
68
70
