CAUTION: The maximum torque rating of the grounding screws on the
router is 4.34 lb-in (0.49 Nm). The grounding screws may be damaged if
excessive torque is applied. Use only a torque-controlled driver to tighten
screws. Use an appropriately sized driver, with a maximum torque capacity
of 5 lb-in. or less. Ensure that the driver is undamaged and properly
calibrated and that you have been trained in its use. You may wish to use
a driver that is designed to prevent overtorque when the preset torque
level is achieved.
9. Dress the grounding cable, and verify that it does not touch or block access to router
components, and that it does not drape where people could trip on it.

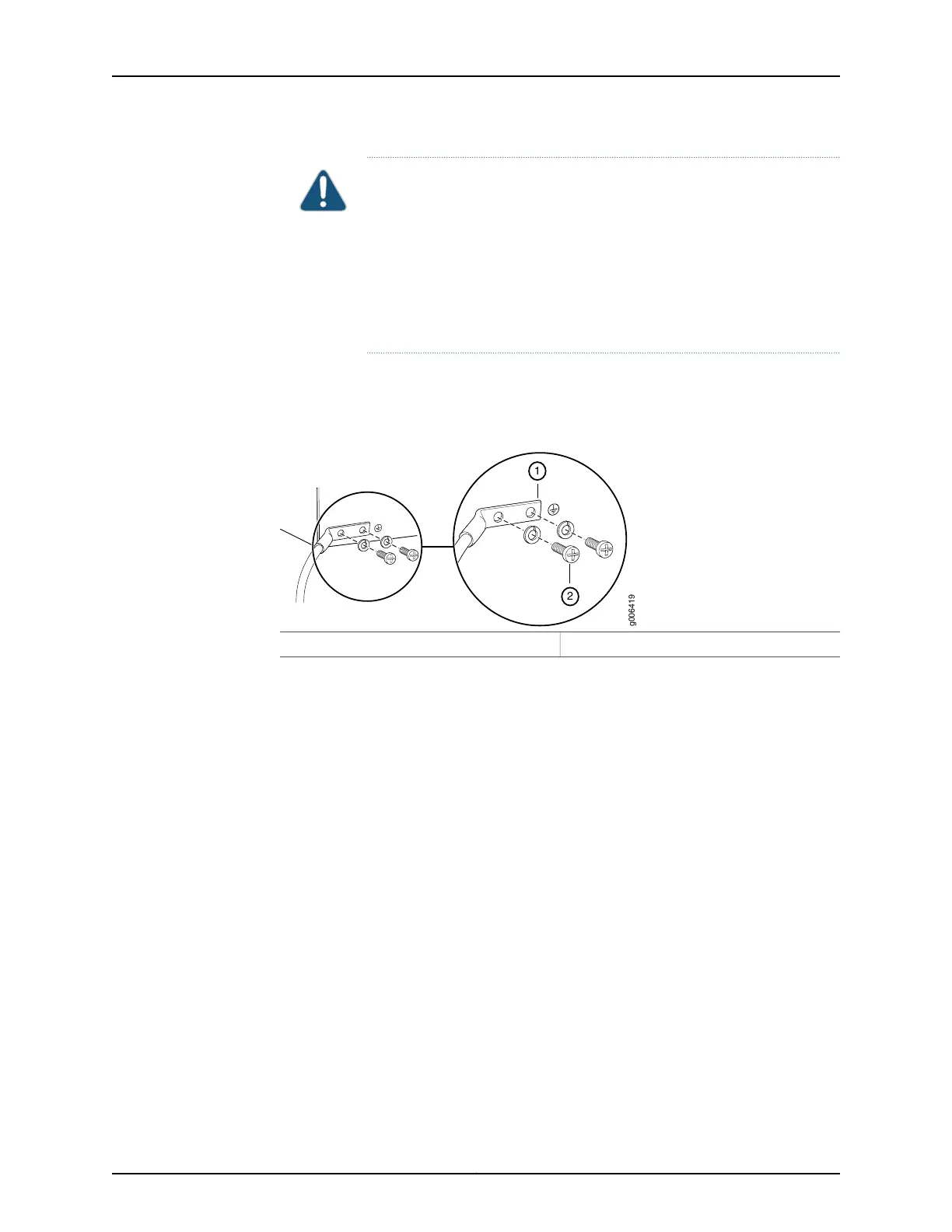

Figure 8: Grounding Points on the ACX Series Router
2—1— SAE 10-32 screw and washerGrounding lug
