Step 2: Install the Router
•
Tools Required to Install the Router in a Rack on page 8
•
Install the Mounting Brackets on page 8
•
Install the ACX Series Router in the Rack on page 9
Tools Required to Install the Router in a Rack
To install the router in a rack, you need the following tools:
•
Phillips (+) screwdriver, number 2
•
ESD grounding wrist strap
Install the Mounting Brackets
Two mounting brackets for front or rear mounting ship with the router (see
Figure 5 on page 8 and Figure 6 on page 8).
Attach both mounting brackets to either the front or rear of the chassis:
1. Align the bracket with the two sets of mounting holes.
2. Insert the four screws at the top and bottom of the bracket and tighten each partially.
3. Tighten the four screws completely.
4. Repeat the procedure for the other bracket.

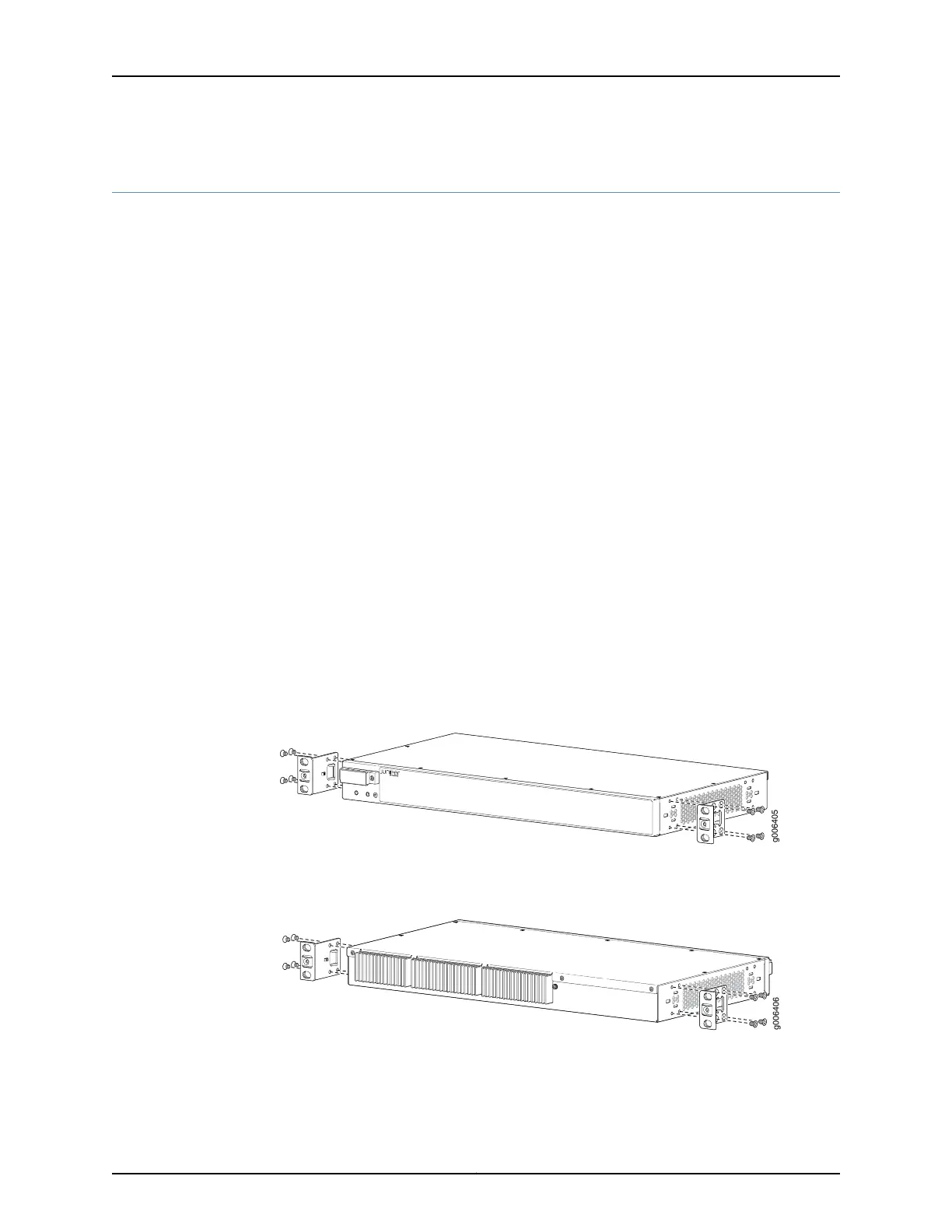

Figure 5: Installing the Mounting Brackets to the Front of the ACX Series
Router
Figure 6: Installing the Mounting Brackets to the Rear of the ACX Series
Router
Copyright © 2015, Juniper Networks, Inc.8
ACX1000 and ACX1100 Universal Access Routers Quick Start
