Juniper ACX1100 Quick Start Guide

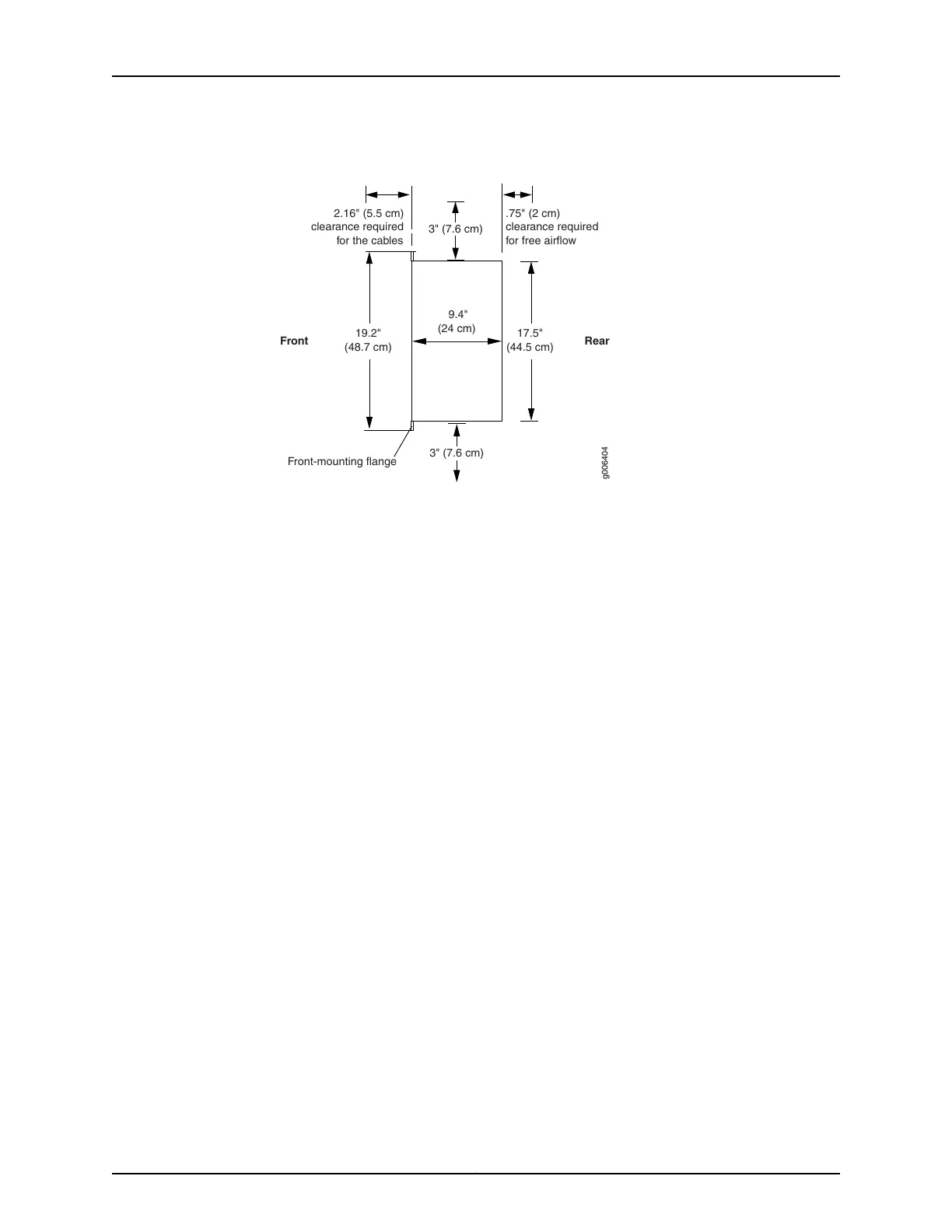

Figure 4: ACX Series Rack Clearance and Chassis Dimensions
RearFront
17.5"
(44.5 cm)
9.4"
(24 cm)
g006404
Front-mounting flange
19.2"
(48.7 cm)
2.16" (5.5 cm)
clearance required
for the cables
.75" (2 cm)
clearance required
for free airflow
3" (7.6 cm)
3" (7.6 cm)
7Copyright © 2015, Juniper Networks, Inc.
Step 1: Prepare the Site for Installation

Juniper ACX1100 Specifications
