Table 4: CLI Equivalents of Terms Used in Documentation for ACX1100 Routers
Additional InformationItem in Documentation
Value (as
displayed in the
CLI)
Description (as
displayed in the CLI)
Hardware
Item (as
displayed
in the CLI)
Chassis Physical Specifications for
ACX1000 and ACX1100 Routers
Router chassis–ACX1100Chassis
Interface Naming Conventions
Used in the Junos OS Operational
Commands
The router does not have
actual FPCs. In this case,
FPC refers to the router
itself.
Value of n is
always 0.
Abbreviated name of the
Flexible PIC
Concentrator (FPC)
FPC (n)
Interface Naming Conventions
Used in the Junos OS Operational
Commands
The router does not have
actual PIC devices; see
entries for PIC 0 through
PIC 2 for the equivalent
item on the router.
n is a value in the
range of 0–1.
Abbreviated name of the
Physical Interface Card
(PIC)
PIC (n)
“ACX1000 and ACX1100 Universal
Access Router Overview” on
page 3
Built-in uplink ports on the
front panel of the router
PIC 08x 1GE (RJ-45)
“ACX1000 and ACX1100 Universal
Access Router Overview” on
page 3
Built-in uplink ports on the
front panel of the router
PIC 1One of the following:
•
4x 1GE (RJ-45)
•
4x 1GE (SFP)
“Uplink Ports on ACX1000 and
ACX1100 Routers” on page 32
Optical transceiversn is a value
equivalent to the
number of the port
in which the
transceiver is
installed.
Abbreviated name of the
transceiver
Xcvr (n)
“ACX1000 and ACX1100 Power
Overview” on page 41
AC or DC power supplyValue of n is
always 0.
Built-in power supplyPower
supply (n)
“Cooling System and Airflow in
an ACX1000 and ACX1100
Router” on page 39
Fan–Fan
NOTE: ACX1100 routers
are fanless models.
Fan

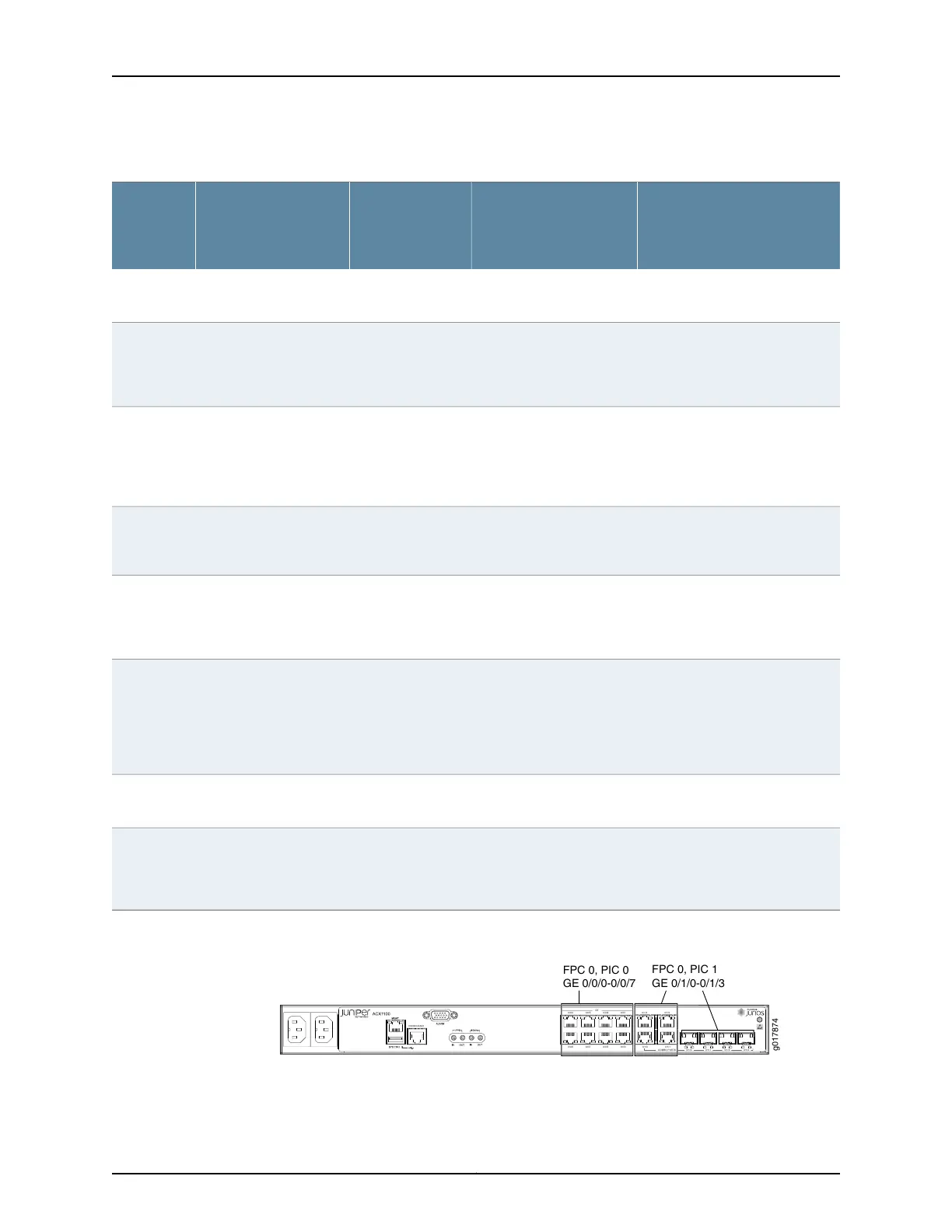

Figure 6: ACX1100 Interface Port Mapping
g017874
0/0/0
0/0/1 0/0/2 0/0/3
0/0/4
0/0/5 0/0/6 0/0/7
GE
0/1/0
0/1/1
0/1/2 0/1/3
0/1/0
0/1/1 0/1/2 0/1/3
CONSOLE/AUX
COMBO PORTS
FPC 0, PIC 0
GE 0/0/0-0/0/7
FPC 0, PIC 1
GE 0/1/0-0/1/3
7Copyright © 2017, Juniper Networks, Inc.
Chapter 1: System Overview and Architecture
