Phillips (+) screwdriver, number 2
To install a line card in the router chassis:
1. Attach the ESD grounding strap to your bare wrist and connect the strap to the ESD point on the router chassis. The
ESD point is located above the status LED panel on the front of the router chassis. See Figure 8.

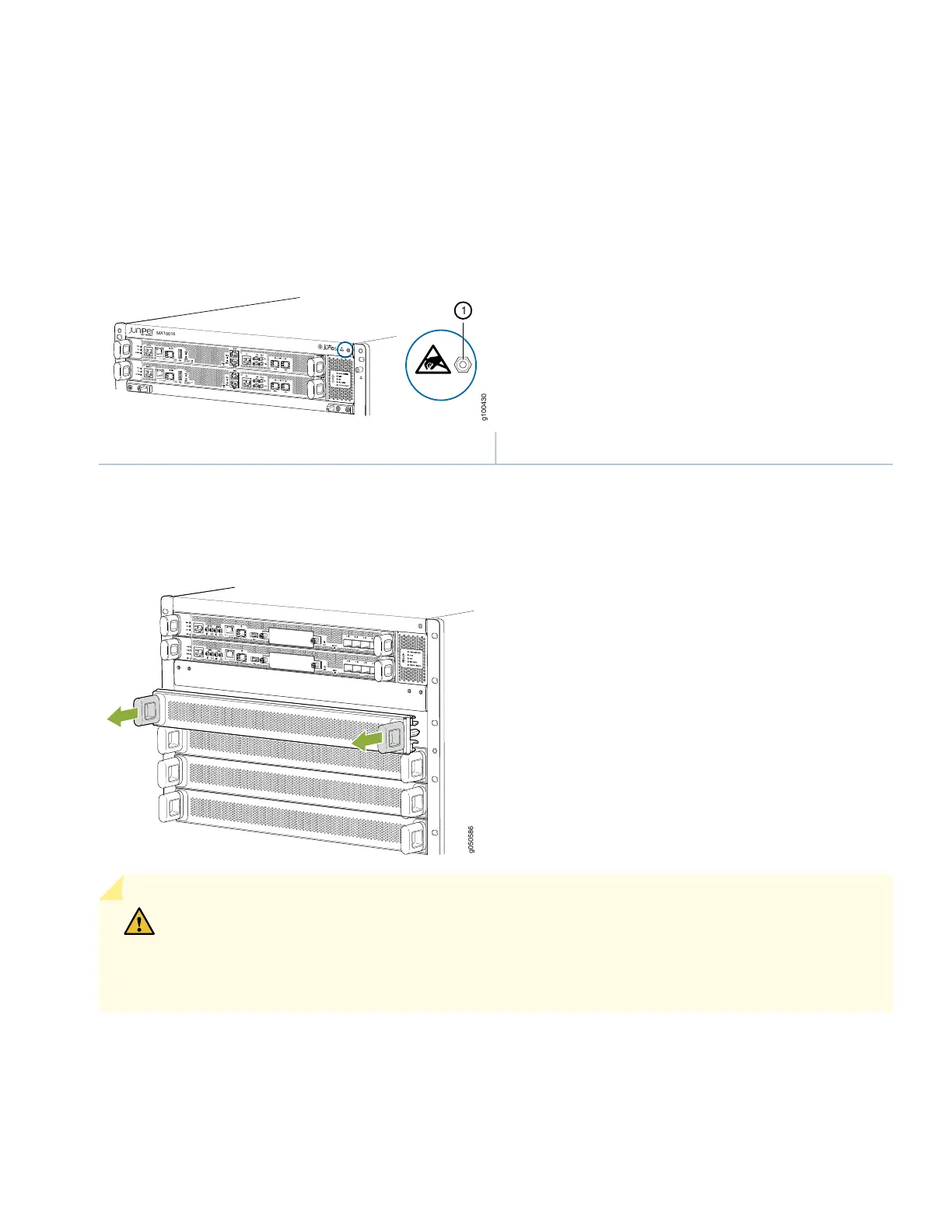

Figure 8: ESD Point on Chassis Front
1—ESD point
2. Remove the cover panel by grasping the handles and pulling straight out to expose the slot for the line card. See Figure 9.
Figure 9: Removing the Cover Panel for a Line Card
CAUTION: Do not lift the line card by holding the edge connectors or the handles on the faceplate.
Neither the handles or the edge connectors can support the weight of the line card. Lifting the line
card by the handles or edge connectors might bend them, which would prevent the line cards from
being properly seated in the chassis. See Figure 10.
12
