4. Use the Phillips screwdriver to attach two mounting screws to the latch bracket at the top left of the chassis frame
(see Figure 13).

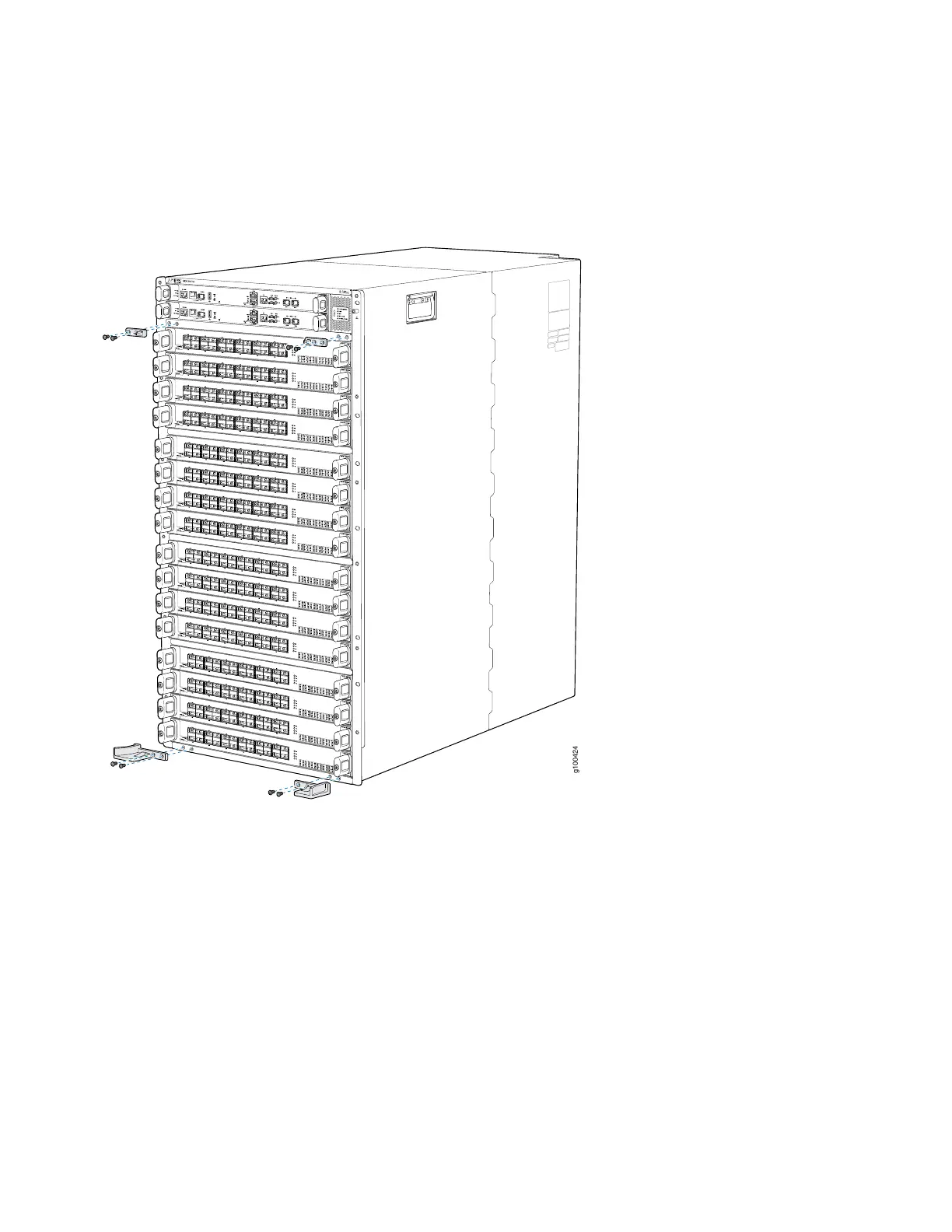

Figure 13: Attaching Front Panel Brackets
5. Use the final two mounting screws to attach a latch bracket to the top right of the chassis frame so there are brackets
on all four corners of the front of the chassis.
6. Lift the front panel and rest it on the two bottom brackets.
7. Slide the panel back on the bracket glides until it engages on the two ramps.
8. Tilt the panel toward the chassis until it is vertical with the chassis. The blue release buttons on the side of the panel
clicks into place (see Figure 14).
