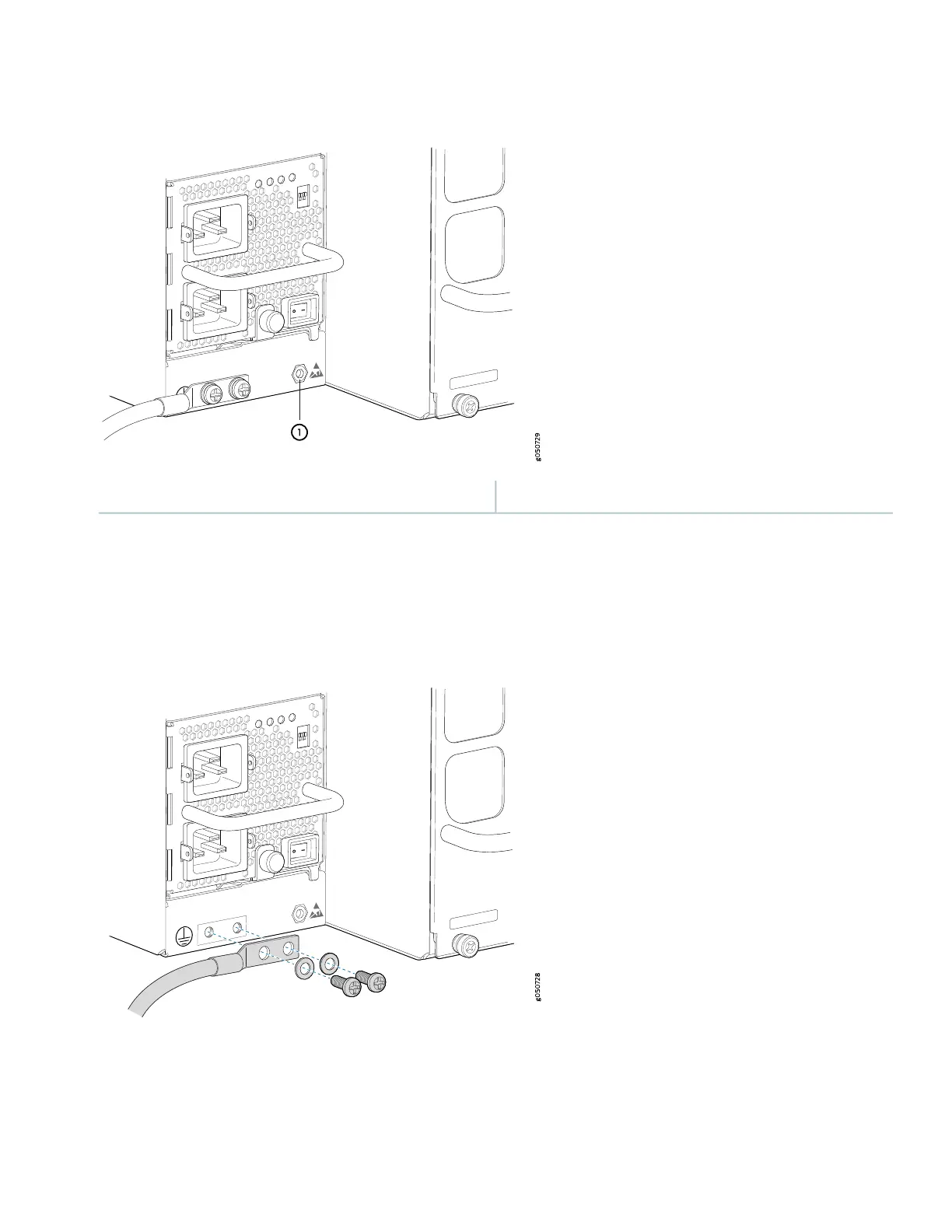

Figure 15: ESD Point for the Chassis Rear
1—ESD point
4. Remove the two screws on the chassis by using a Phillips screwdriver.
5. Place the chassis grounding lug and cable over the PEM nuts with the cable connection pointing to the left. See Figure 16.
Figure 16: Connecting a Grounding Cable to the MX10016
6. Place the two screws over the grounding lug and grounding cable.
