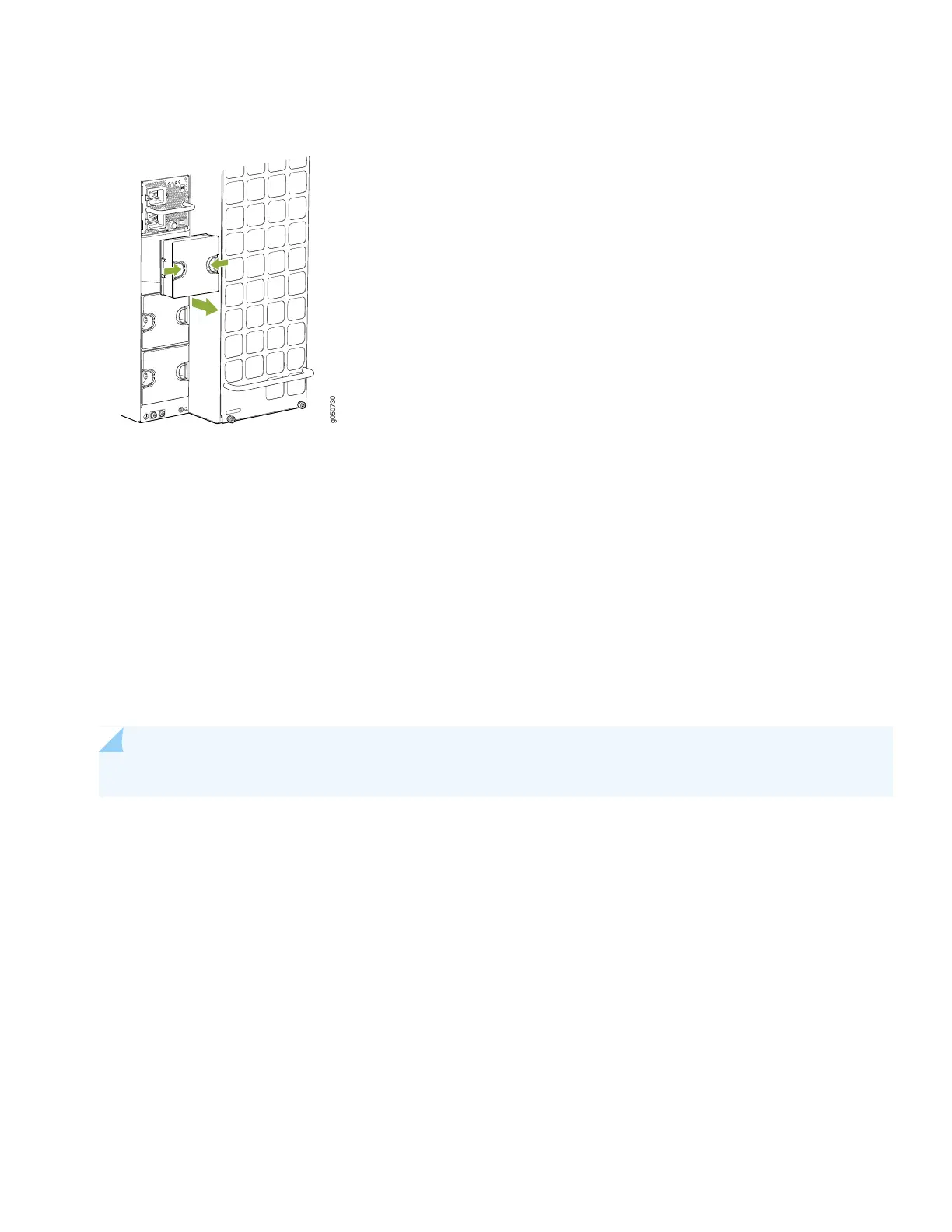

Figure 17: Removing the PSU Cover Panel
3. Taking care not to touch power supply connections, remove the power supply from its bag.
4. Peel back and remove the protective plastic wrap that covers all four sides of the power supply.
5. Ensure that the power switch is set to the standby (O) position. This switch turns off the output voltage; it does not
interrupt AC.
6. Unscrew the captive screw in the counterclockwise direction by using the Phillips (+) screwdriver, number 1.
7. Rotate the captive screw away from the faceplate of the power supply to release the latch.
NOTE: You can install the power supplies in any slot labeled PSU 0 through PSU 9 (top to bottom).
8. Using both hands, place the power supply in the power supply slot on the rear of the system. Slide the power supply
straight into the chassis until the power supply is fully seated in the slot. Ensure that the power supply faceplate is
flush with any adjacent power supply faceplates or power supply cover panels (see Figure 18).
9. Push the captive screw into the power supply faceplate. Ensure that the screw is seated inside the corresponding hole
on the faceplate.
10. Tighten the captive screw by turning it clockwise by using the Phillips (+) screwdriver, number 1. When the screw is
completely tight, the latch locks into the router chassis.
