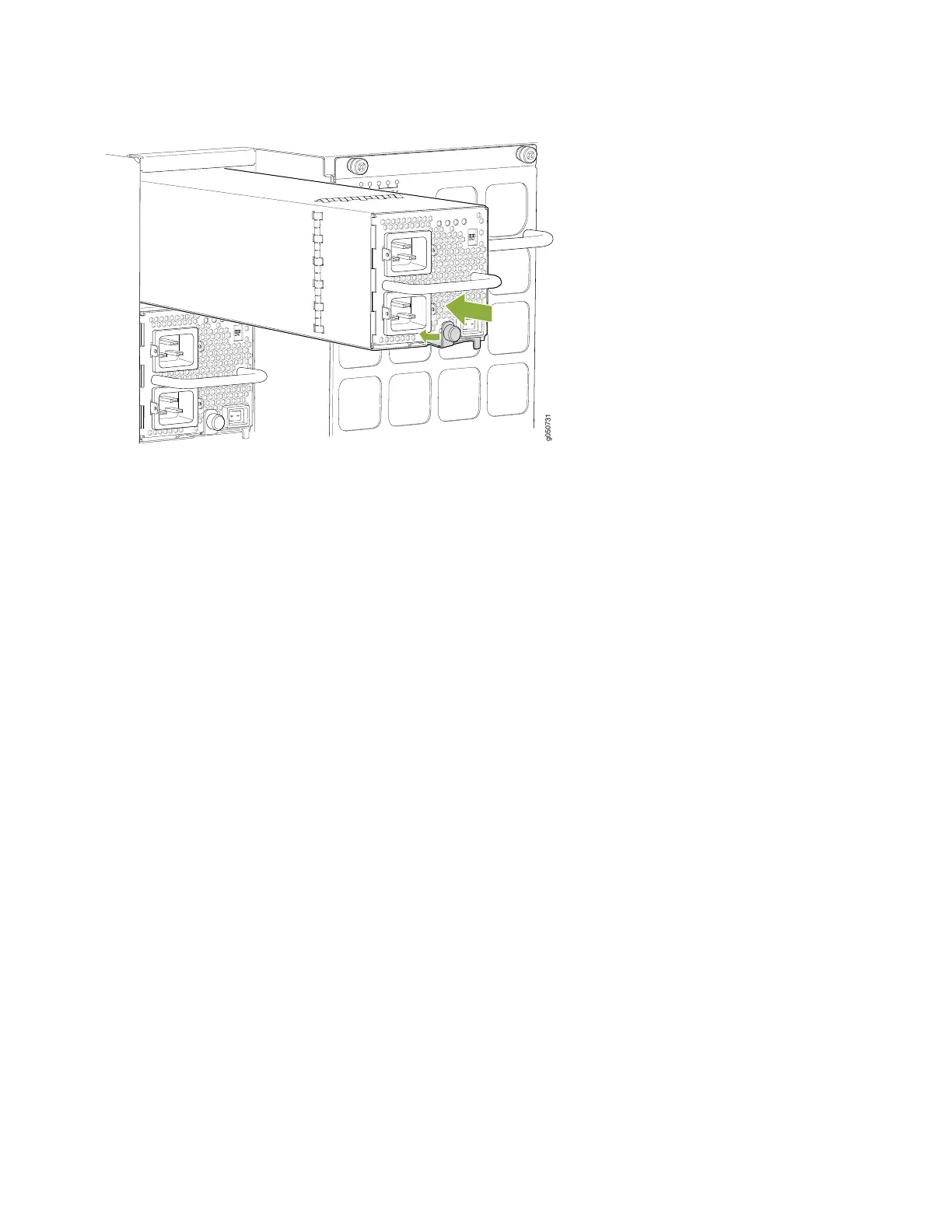

Figure 18: Installing an AC Power Supply
11. Locate two power cords shipped with the router; the cords have plugs appropriate for your geographical location.
12. Attach each power cord to a dedicated AC power source outlet.
13. Squeeze the two sides of the power cord retainer clip and insert the ends of the clip into the holes in the bracket on
each side of the AC appliance inlets on the AC power supply faceplate. See Figure 19.
14. Insert the power cord coupler into the power supply.
Each AC power supply has two independent 16 A-rated AC inlets on the faceplate. Each inlet must be connected to
a dedicated AC power feed to achieve 2N source redundancy. If redundancy is not a requirement, use the default input
INP1 for a single connection.
15. Fasten the cord retainer by lowering the clip over the cord and pushing the cord into the adjustment nut of the cord
retainer. Rotate the nut until it is tight against the base of the cord. See Figure 19.
21
