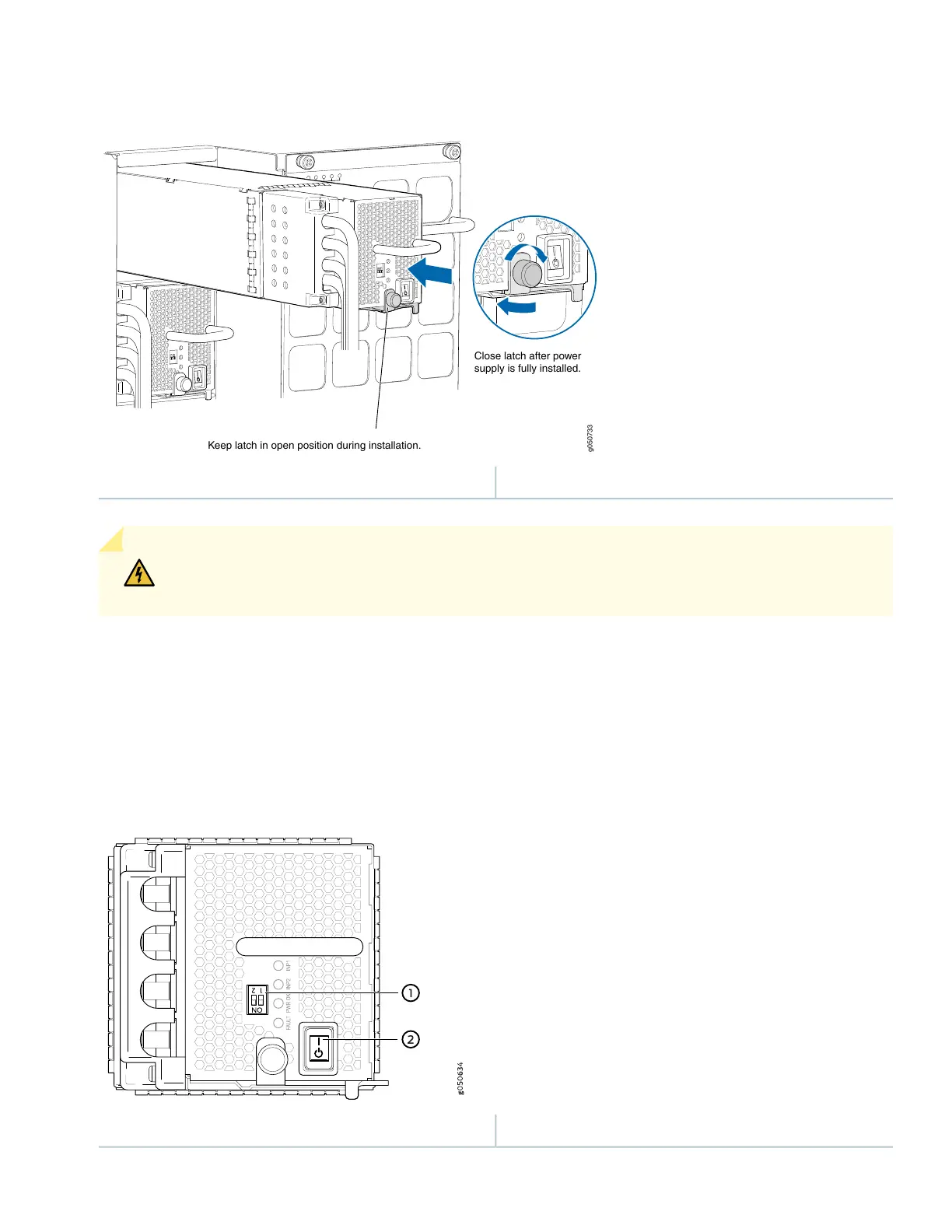

Figure 22: Installing an MX10016 DC Power Supply
g050733
Keep latch in open position during installation.
Close latch after power
supply is fully installed.
2—1— Source input 2 enable switchSource input 1 enable switch
17.
WARNING: Ensure that the power cords do not block access to router components or drape where
people can trip on them.
18. Set the enable switches for input 1 and input 2 (see Figure 23).
Set both enable switches to the | (on) position when using both source inputs. When not using source redundancy, set
the unused source to the O (off) position. The LED turns red and indicates an error if a source input is not in use and
the enable switch is | (on).
Figure 23: Setting the Enable Switches for the Power Source
2—1— Source input 2Source input 1
27
