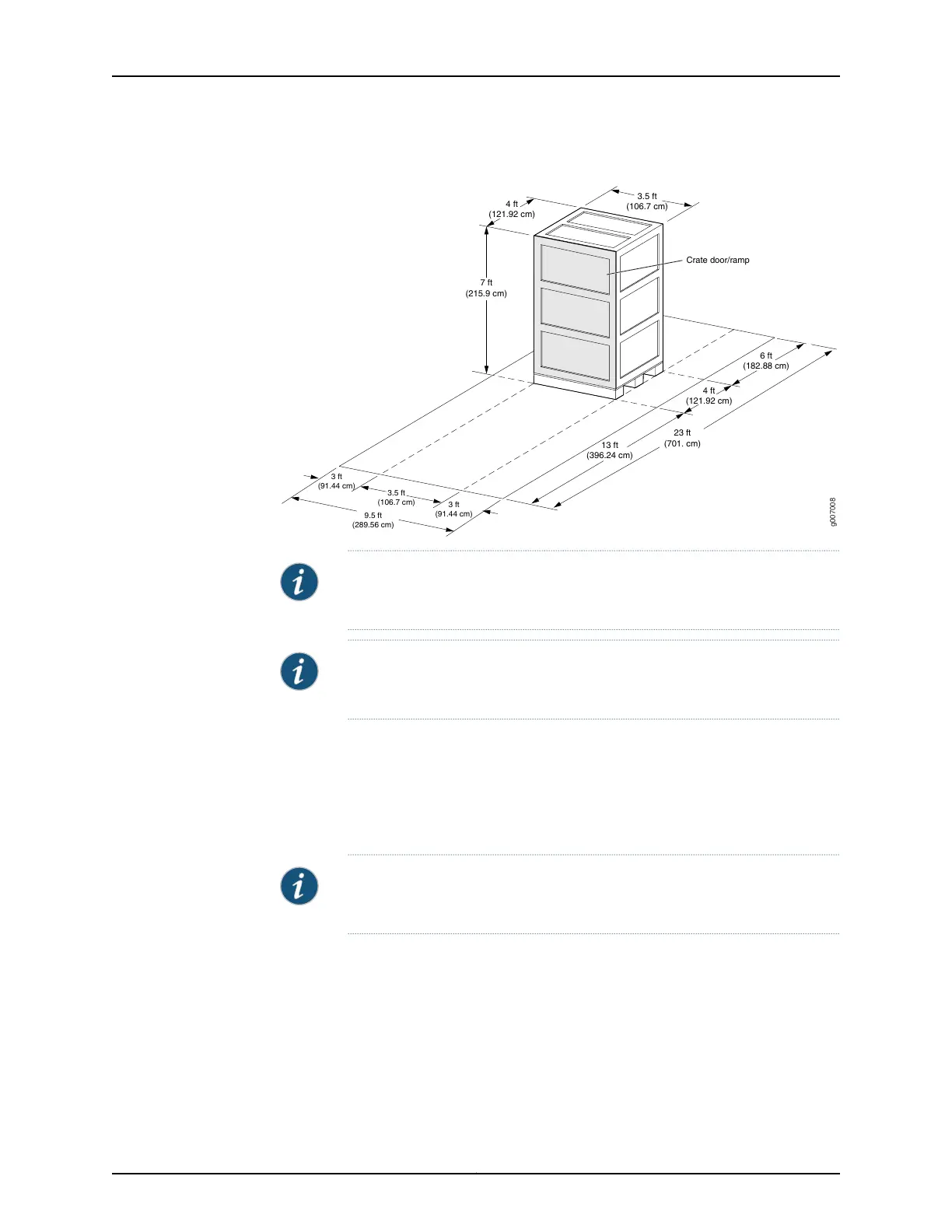

Figure 6: MX2020 Shipping Crate Dimensions
g007008
7 ft
(215.9 cm)
3 ft
(91.44 cm)
3 ft
(91.44 cm)
4 ft
(121.92 cm)
3.5 ft
(106.7 cm)
4 ft
(121.92 cm)
13 ft
(396.24 cm)
23 ft
(701. cm)
6 ft
(182.88 cm)
3.5 ft
(106.7 cm)
9.5 ft
(289.56 cm)
Crate door/ramp
NOTE: Depending on your configuration, the MX2020 might be shipped with
additional components already installed.
NOTE: The MX2020 can be ordered with extended EMI covers and extended
cable managers.
Before removing the router from the shipping crate, you must remove all components
(see “Remove Components” on page 17).
Because of the router’s size and weight—up to 1515 lb (687.2 kg) depending on
configuration—we strongly recommend that you install the router by using a pallet jack
with pallet jack attachment or a router transport kit.
NOTE: The router is maximally protected inside the shipping crate. Do not
unpack it until you are ready to begin installation.
Copyright © 2015, Juniper Networks, Inc.14
MX2020 3D Universal Edge Router Quick Start
To Next Page
