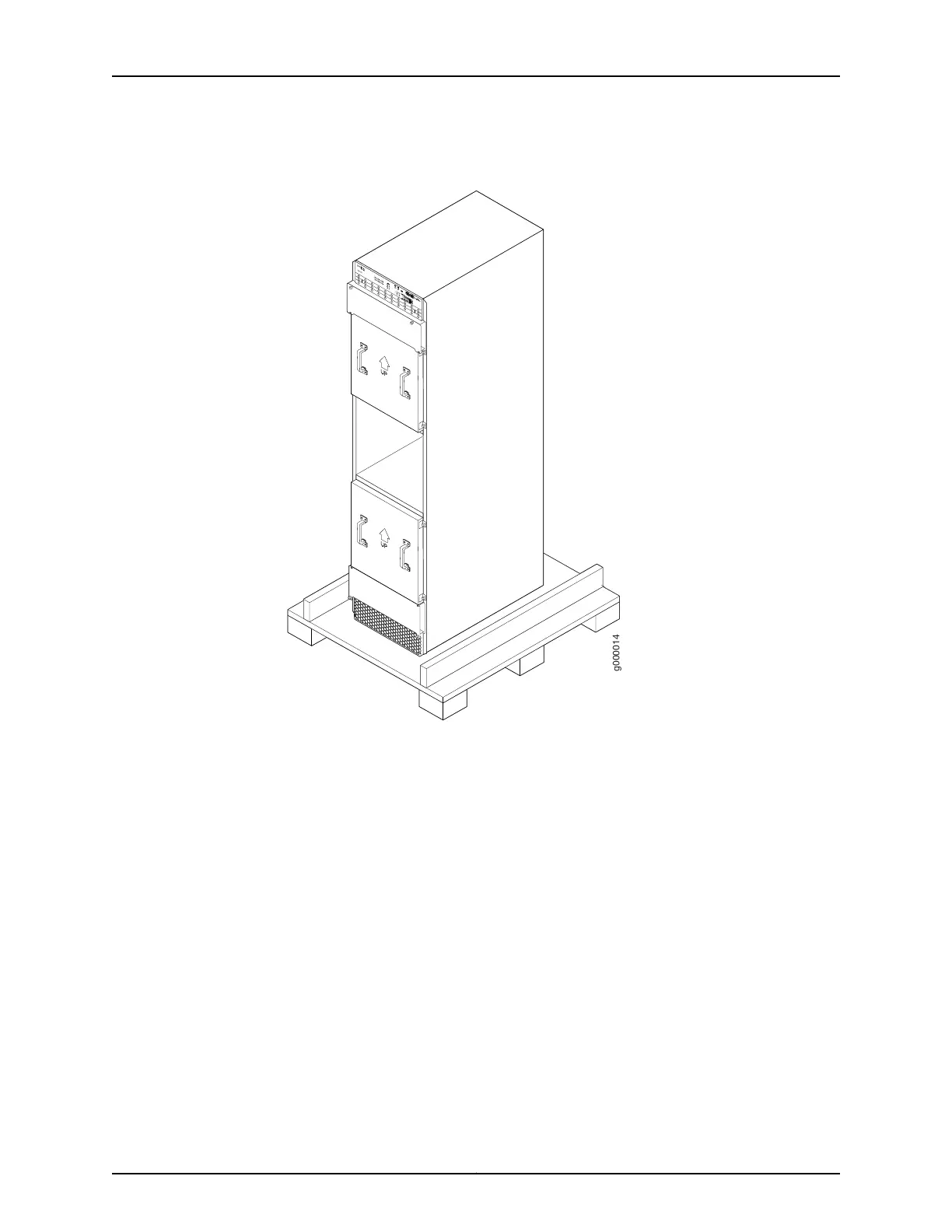

Figure 7: Unpacking the MX2020
g000014
RE0
RE1
MASTER
ONLINE
OFFLINE
PSM
1
2
3
4
5
6
7
8
0
10
11
12
13
14
15
16
17
9
MX2200
LC
CB-RE
LC
SFB
10
0
0
11
0
1
12
1
2
13
2
3
14
3
4
15
4
5
16
5
6
17
6
7
18
7
8
19
1
9
LC
CB-RE
LC
SFB
6. Remove the foam covering the top of the router.
7. Remove the pallet jack attachment, if ordered. See “Unpack the Router Transport Kit”
on page 28 for instructions on how to unpack and install the router transport kit.
8. Remove the large mounting tray.
9. Remove the accessory box.
10. Verify the parts received against the list.
11. Remove the vapor corrosion inhibitor (VCI) packs attached to the pallet, being careful
not to break the VCI packs open.
12. To remove the brackets holding the chassis to the pallet, use a 9/16-in. (14 mm) socket
wrench, and a number 2 Phillips screwdriver to remove the bolts and screws from the
brackets.
13. Set the shipping brackets aside for later use to secure the router to the pallet jack
attachment.
Copyright © 2015, Juniper Networks, Inc.16
MX2020 3D Universal Edge Router Quick Start
