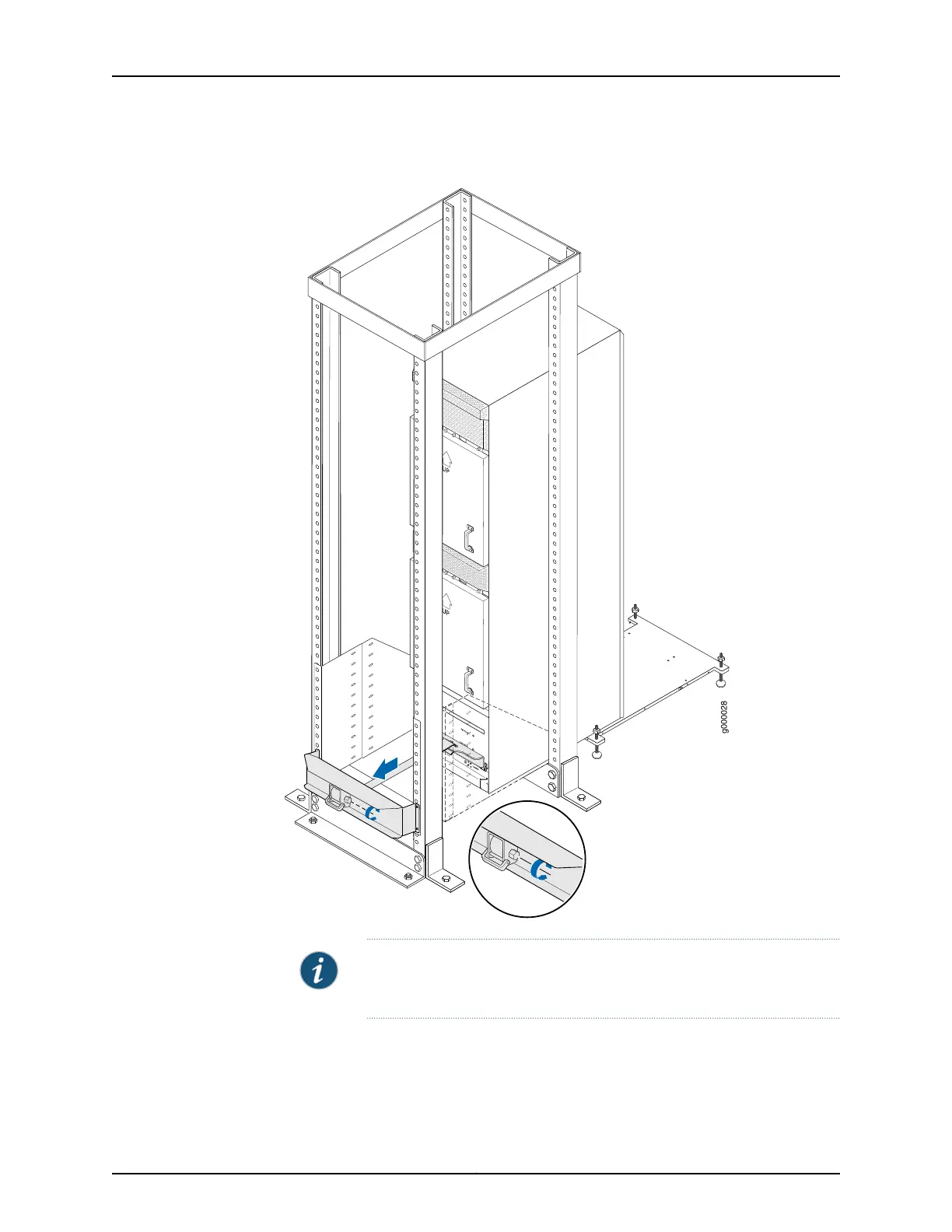

Figure
29:
Pulling
the
MX2020
into
the
Rack
g000028
NO
TE:
A
f
our-person
te
am
is
needed
to
carefull
y
guide
the
rout
er
into
the
rack
whil
e
opera
ting
the
winch.
41
Cop
yright
©
2015,
Juniper
Netw
orks,
Inc.
Use
the
T
r
ansport
Kit
to
Install
the
R
outer
in
the
Rack
40
42
Table of Contents
Quick Start
1
Table of Contents
1
MX2020 Quick Start Description
3
Step 1: Prepare the Site for Installation
4
Rack-Mounting Requirements
4
Moving Requirements and Guidelines Using a Router Transport Kit
6
Tools Required to Unpack and Prepare the MX2020 Router for Installation
9
Step 2: Install the Mounting Hardware
11
Step 3: Install the Router
13
Unpack the Router
13
Remove Components
17
Unpack the Router
17
Install the Router Using a Pallet Jack with Attachment
22
Install the Pallet Jack Attachment
23
Use a Pallet Jack with Attachment to Install the Router in the Rack
24
Install the Router Using a Pallet Jack with Attachment
24
Install the Router Using a Router Transport Kit
28
Unpack the Router Transport Kit
28
Install the Router Transport Kit Onto the Router
30
Use the Transport Kit to Install the Router in the Rack
32
Step 4: Connect the Grounding Cable
43
Step 5: Reinstall Components
44
Step 6: Connect External Devices and Line Card Cables
45
Connect to a Network for Out-Of-Band Management
45
Connect a Management Console
45
Connect the Line Card Cables
45
Step 7: Connect Power Cables
47
Connect Power to a Three-Phase Delta AC Power Distribution Module
47
Connect Power to a Three-Phase Wye AC Power Distribution Module
51
Connect AC Power Supply Modules
55
See Table
56
Connect Power to a DC Power Distribution Module
58
Connect DC Power Supply Modules
60
Step 8: Perform Initial Software Configuration
64
Enter Configuration Mode
64
Configure User Accounts and Passwords
64
Configure System Attributes
65
Commit the Configuration
66
Safety Warnings
67
Compliance Statements for EMC Requirements
69
Canada
69
European Community
69
Israel
70
Japan
70
United States
70
Compliance Statements for NEBS
69
Junos os Documentation and Release Notes
71
Requesting Technical Support
71
Self-Help Online Tools and Resources
71
Opening a Case with JTAC
