NOTE: Three-phase delta AC wire assembly kits can be purchased from
Juniper Networks.
Table 5: Supported Three-Phase Delta AC Wire Gauge
DescriptionWire Gauge
4 conductor wires, each wire is 6-AWG4 x 6-AWG or equivalent
NOTE: We recommend that you use the proper gauge wire in order for the
cable clamps to hold the AC cables. Using smaller gauge wiring will result
in the cable clamps not tightening properly.
WARNING: Power connections must be performed by a licensed electrician
only.
12. Verify that the power cable connections are correct.
13. Screw the retaining nut onto the AC power cord to secure it to the metal wiring
compartment.
14. Using a number 2 Phillips (+) screwdriver, tighten the four captive screws on the metal
AC wiring compartment.
15. Use the provided plastic cable tie to fasten the AC power cord to the PDM.
16. Verify that the AC power cord does not touch or block access to router components,
and that it does not drape where people could trip on it.
17. Repeat the procedure for the other three-phase delta AC PDMs.
18. Connect the three-phase delta AC power cord mating connector to the AC power
cord connector (see Figure 34 on page 50). Table 6 on page 51 shows the approved
three-phase delta AC power cord mating connector specifications.

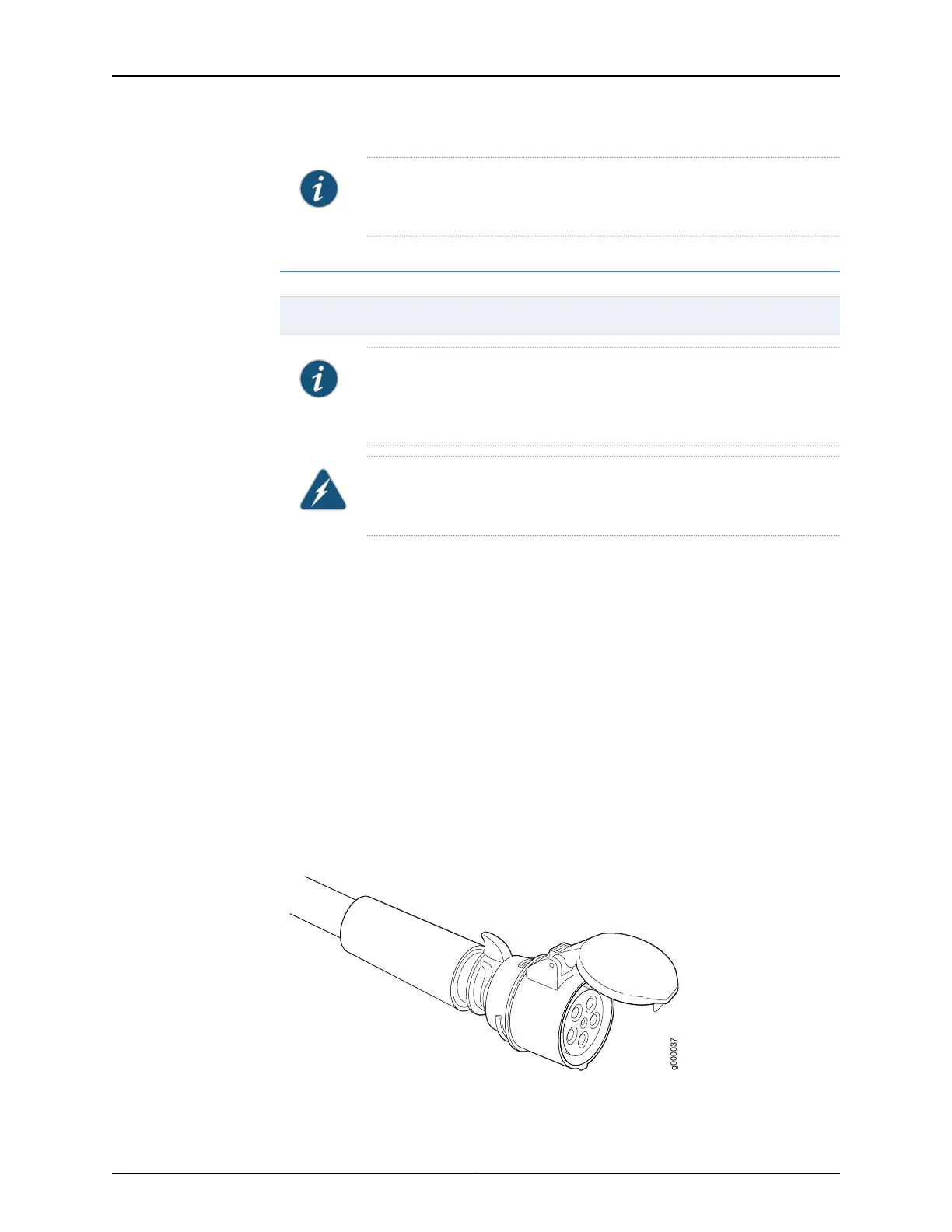

Figure 34: Three-Phase Delta AC Power Cord Mating Connector
Copyright © 2015, Juniper Networks, Inc.50
MX2020 3D Universal Edge Router Quick Start
