Juniper SRX300 User Manual

To mount the SRX300 in a rack, you’ll need to order a rack mount kit appropriate for your installation. If you don’t have
a power supply adapter tray, order the SRX300-RMK0 rack mount kit. If you already have a power supply adapter tray,
order the SRX300-RMK1 rack mount kit.
The SRX300-RMK0 rack mount kit has:
•
Twelve flat-head M3x5mm Phillips mounting screws
•
One mounting bracket
•
Power supply adapter tray and two adapter stopper brackets
The SRX300-RMK1 rack mount kit has:
•
Eight flat-head M3x5mm Phillips mounting screws
•
Two mounting brackets
You’ll also need:
•
Someone to help you do the installation
•
Rack mount screws appropriate for your rack
•
A number two Phillips (+) screwdriver
Rack It
1. Review General Safety Guidelines and Warnings.
2. Wrap and fasten one end of the electrostatic discharge (ESD) grounding strap around your bare wrist, and connect the
other end to a site ESD point.

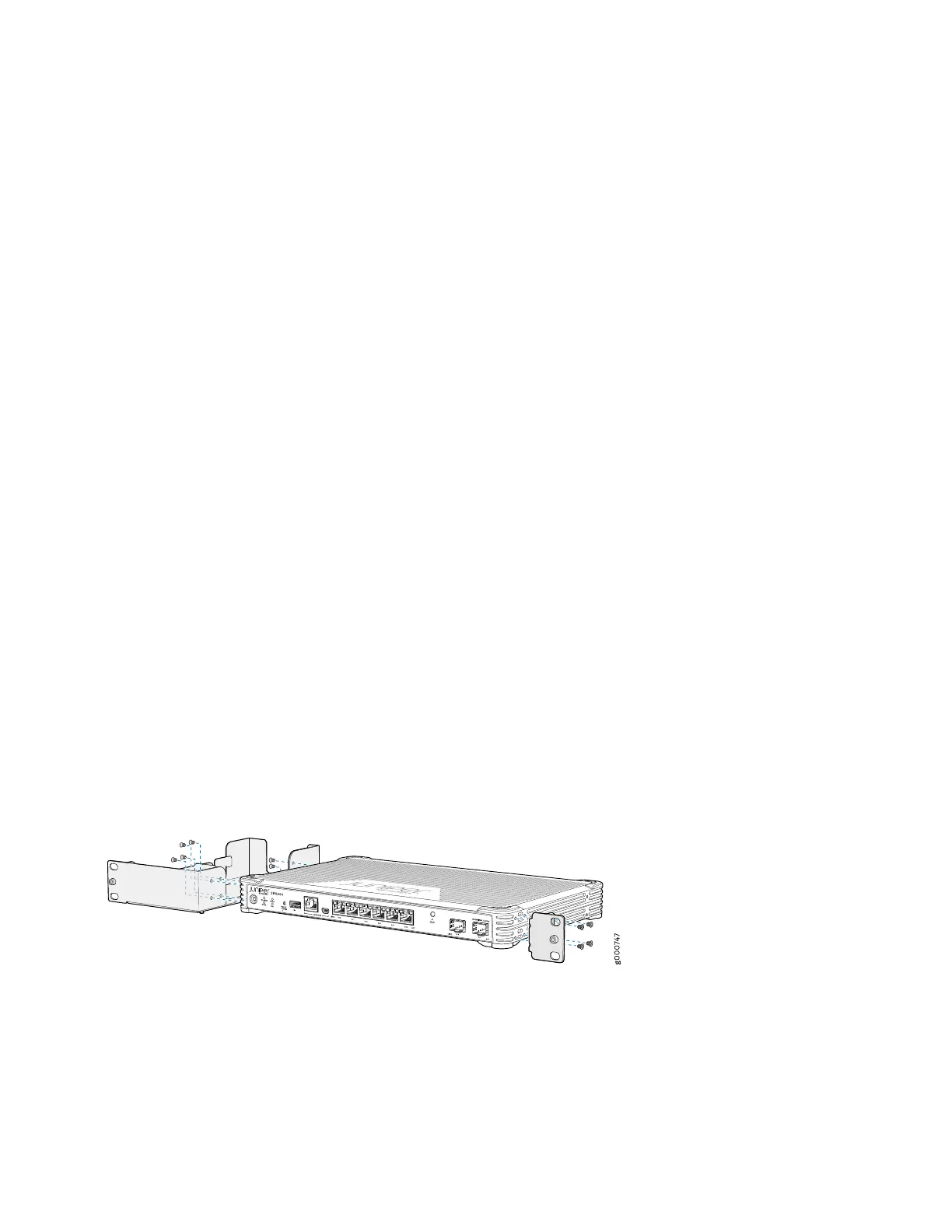

3. Attach the mounting bracket and power supply adapter tray to the sides of the SRX300 using the screws that came
with the rack mount kit and the number two Phillips (+) screwdriver.
3

Juniper SRX300 Specifications

General

USB 2.0 ports quantity	1
Connectivity technology	Wired
SFP module slots quantity	2
Ethernet LAN (RJ-45) ports	6
Internal memory	4000 MB
Flash memory	8000 MB
Storage media type	Flash
Power consumption (typical)	15.4 W
Noise level	0 dB
Heat dissipation	85 BTU/h
Concurrent connections	64000
Mean time between failures (MTBF)	389820 h
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Routing protocols	BGP, CLNS, IS-IS, OSPF, RIP-1, RIP-2
Number of users	50 user(s)
Quality of Service (QoS) support	Yes
Firewall throughput	1000 Mbit/s
Mobile VPN IPSec	250
IPS/IDS throughput	100 Mbit/s
Harmonized System (HS) code	85176990

Weight and Dimensions

Weight	1980 g
Dimensions (WxDxH)	320.8 x 34.7 x 191 mm
