SERVICE LED, one bicolor
•
Off–The IOC is administratively disabled, but mapped to the NPC.
•
Green–The IOC is mapped to the NPC and is available to carry Ethernet traffic.
•
Amber–The IOC is not mapped to the NPC and is not available to carry Ethernet traffic.
OK/FAIL LED, one bicolor
•
Steady Green–The IOC is operating normally.
•
Off–One or more of the following conditions apply:
•
The services gateway is not powered on.
•
The services gateway is still in the process of either booting or shutting down.
•
The services gateway is not configured for chassis clustering.
•
Blinking Green–The IOC is preparing for hot-plug event:
•
Card is being inserted: power up, booting, initialization.
•
Card is being removed: shut down by chassis management software.
•
Red–The IOC has failed and is not operating normally.
LEDs
The serial number label for all IOC types is located as shown in Figure 6 on page 11).

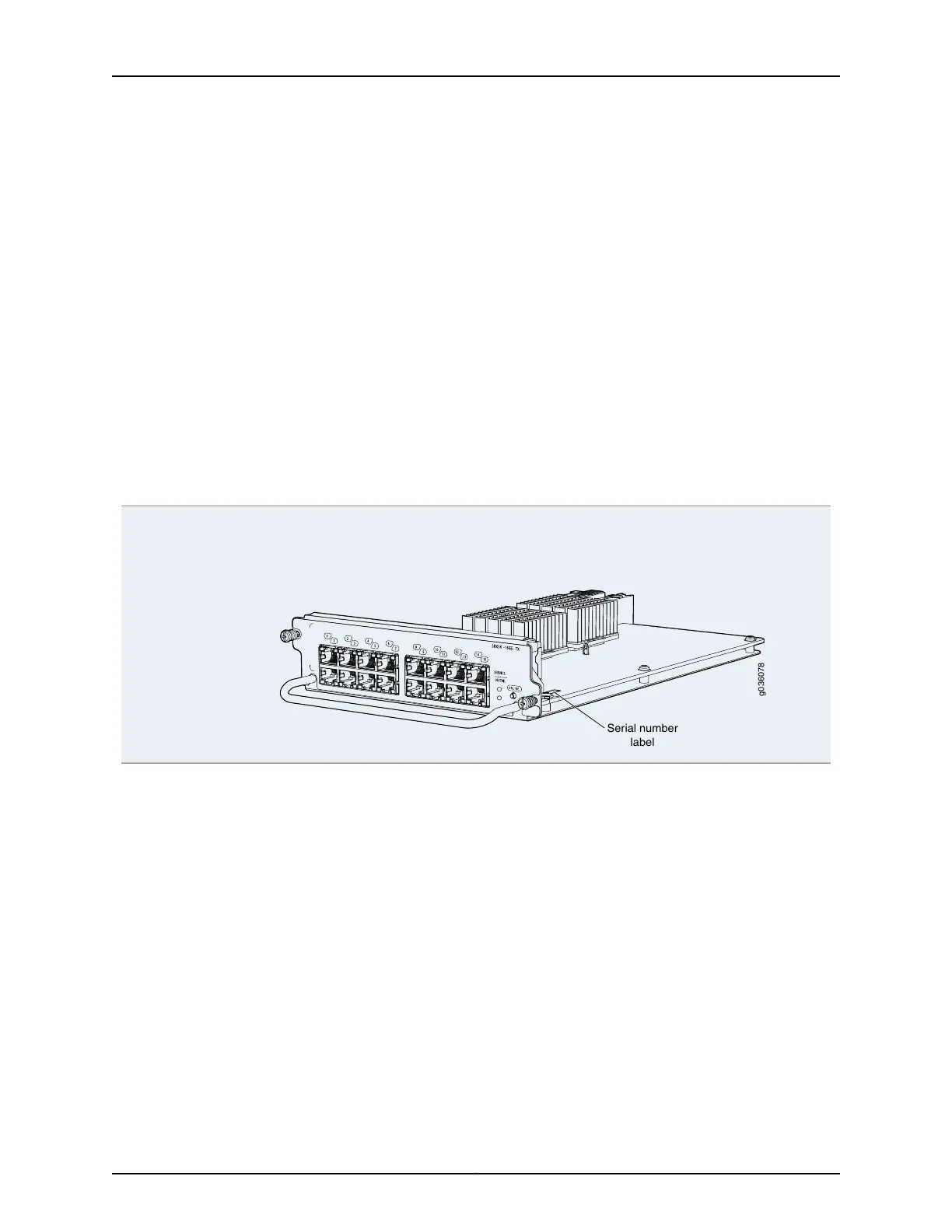

Figure 6: IOC Serial Number Label (SRX3K-16GE-TX Shown, Other IOCs
Similar)
g036078
Serial number
label
Serial Number
Location
Related
Documentation
SRX1400, SRX3400, and SRX3600 Services Gateway Module Overview on page 2•
• Modules Supported on SRX1400, SRX3400, and SRX3600 Services Gateways on
page 3
• Eligible Slots for SRX1400, SRX3400, and SRX3600 Services Gateway Modules on
page 4
• Installing Common Form Factor Modules In SRX1400, SRX3400, and SRX3600 Services
Gateways on page 22
