I/O Card SRX3K-2XGE-XFP
The SRX3K-2XGE-XFP (Figure 7 on page 12) IOC adds two ports for 10-Gigabit Ethernet
traffic from fiber interface media. It is inserted horizontally into the midplane of the
services gateway to communicate with the Switch Fabric Board (SFB) and to receive
power. To use fiber interface media, install 10-Gigabit small form-factor pluggable (XFP)
transceivers on the desired ports. LEDs on the faceplate of the IOC indicate port status
and connectivity (see Table 15 on page 27). Ports are numbered from left to right, 0-1.

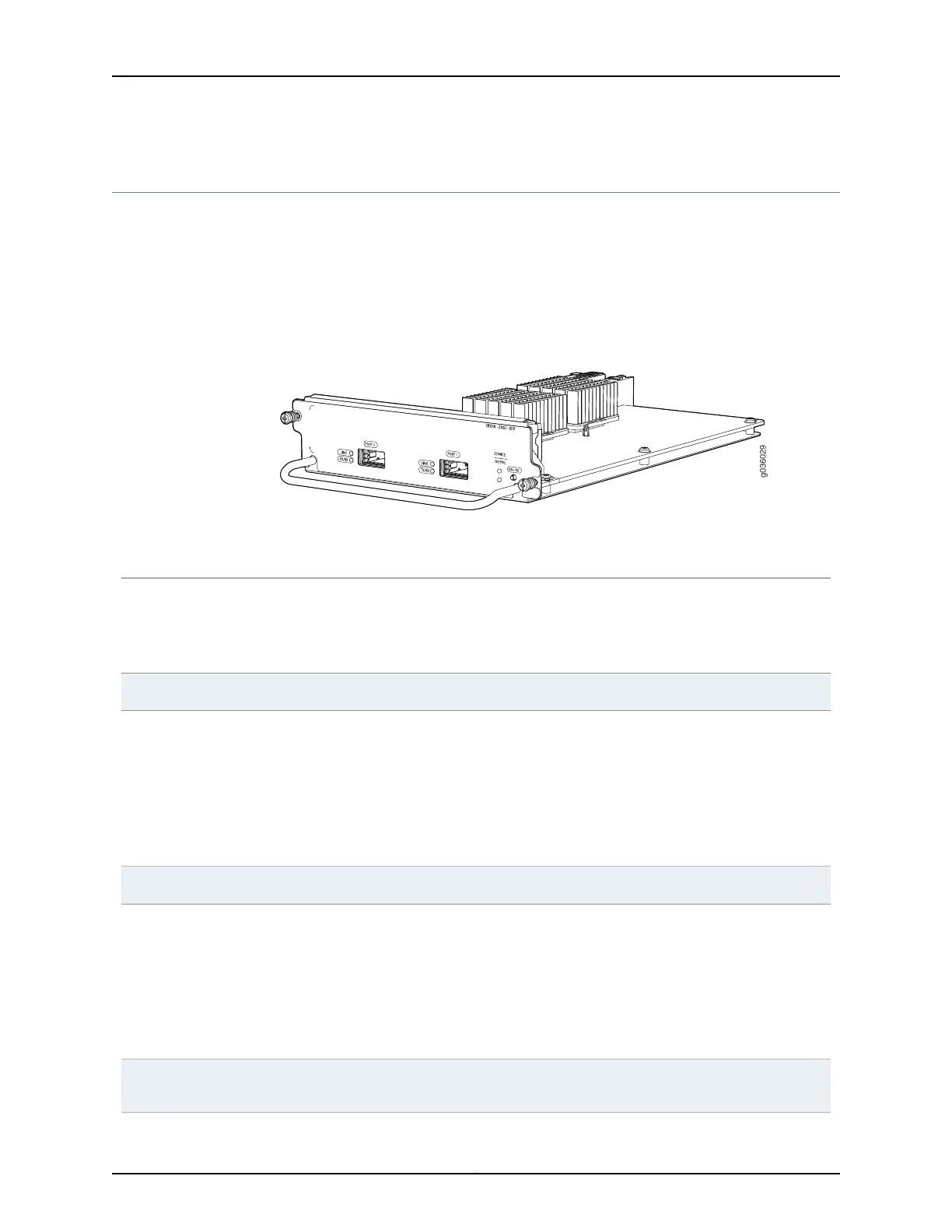

Figure 7: 2-Port XFP 10-Gigabit Ethernet IOC
g036029
For detailed information about supported transceivers, see the SRX Series Services Gateway
Transceiver Guide at www.juniper.net/techpubs/.
•
2-port Ethernet XFP IOC for SRX3400, SRX3600, and SRX1400
•
Power requirement: 52 W maximum
•
Weight: 2.4 lb (1.1 kg)
•
Maximum configurable MTU: 9192 bytes
Description
•
Junos OS Release 9.3 and laterSoftware release
Two XFP sockets for Ethernet transceivers
Supported XFP transceivers:
10GBASE-ER (model numbers SRX-XFP-10GE-ER and SRX-XFP-10GE-ER-ET )
10GBASE-LR (model numbers SRX-XFP-10GE-LR and SRX-XFP-10GE-LR-ET
10GBASE-SR (model numbers SRX-XFP-10GE-SR and SRX-XFP-10GE-SR-ET )
Cables and connectors
ONLINE Button–The ONLINE button on the IOC front panel does not perform any function.Controls
•
SRX1400: Front slot labeled 2
•
SRX3400: Front slots labeled 1 through 4 (except as noted below)
•
SRX3600: Front slots labeled 1 through 6 (except as noted below)
NOTE: When an SRX3400 or SRX3600 Services Gateway is in the Express Path (formerly known
as Services Offload) mode supported in Junos OS release 12.1X44-D10 and later, IOCs are only
supported in front panel slots 1 through 3. See the Junos OS documentation for more information
about Express Path mode.
Supported Slots
IOCs are cold-swap-only modules. You must power-off the services gateway before removing,
replacing, or adding IOCs.
Swapping
Copyright © 2016, Juniper Networks, Inc.12
SRX1400, SRX3400, and SRX3600 Services Gateway Module Guide
