I/O Card SRX3K-16GE-TX
The SRX3K-16GE-TX (Figure 3 on page 8) IOC adds 16 ports for standard Ethernet, Fast
Ethernet, or Gigabit Ethernet traffic from copper media. It is inserted horizontally into the
services gateway to communicate with the Switch Fabric Board (SFB) and to receive
power. The ports utilize RJ-45 connectors. LEDs on the faceplate of the IOC indicate port
status and connectivity.

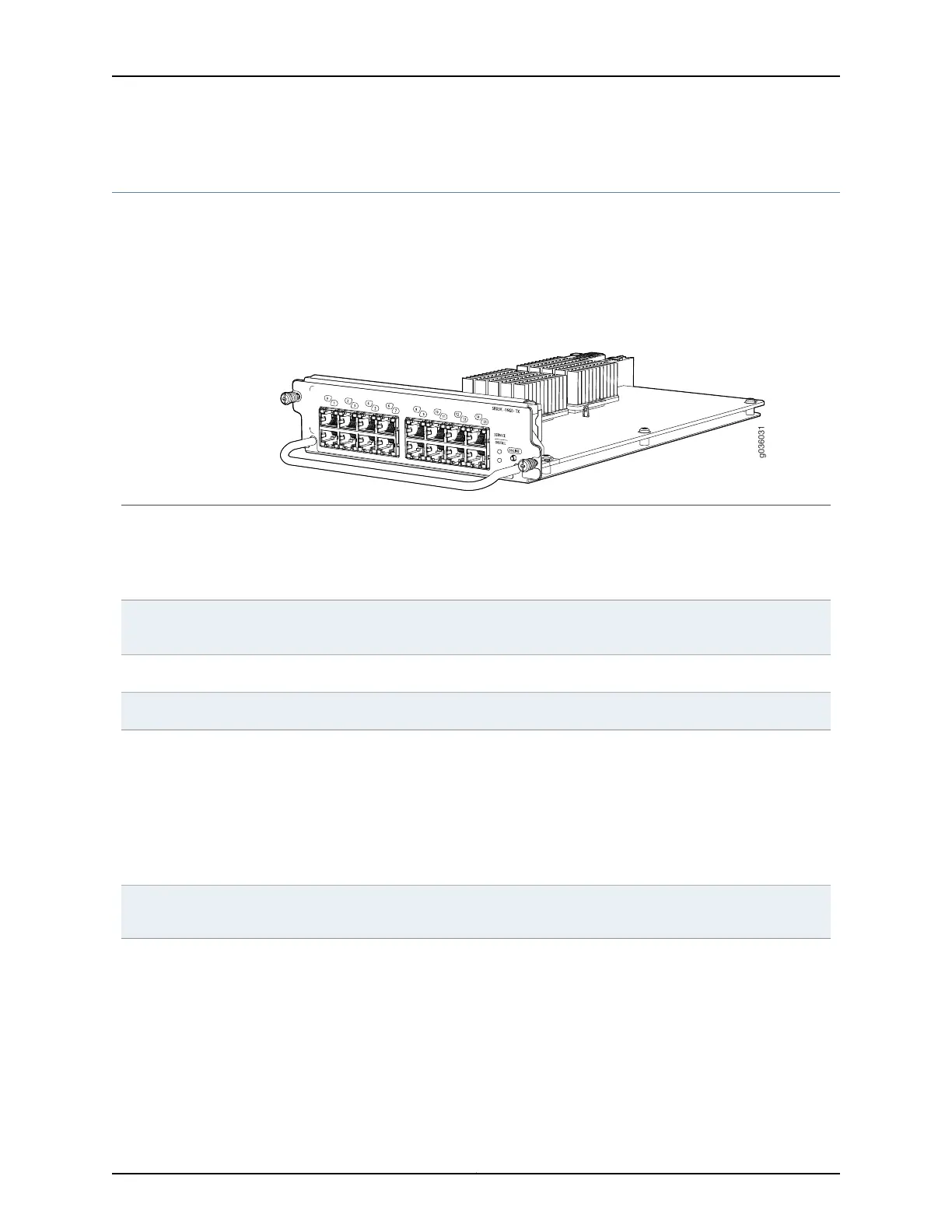

Figure 3: 16-Port Copper 10/100/1000 IOC
•
16-port Ethernet TX IOC with 16 Gigabit Ethernet RJ45 ports
•
Power requirement: 52 W maximum
•
Weight: 2.4 lb (1.1 kg)
•
Maximum configurable MTU: 9192 bytes
Description
•
SRX3400 and SRX3600: Junos OS Release 9.3 and later
•
SRX1400: Junos OS Release 10.2 and later
Software release
Sixteen RJ-45 connectors for 10/100/1000 Mbps EthernetCables and connectors
ONLINE Button–The ONLINE button on the IOC front panel does not perform any function.Controls
•
SRX1400: Front slot labeled 2
•
SRX3400: Front slots labeled 1 through 4 (except as noted below)
•
SRX3600: Front slots labeled 1 through 6 (except as noted below)
NOTE: When an SRX3400 or SRX3600 Services Gateway is in the Express Path (formerly known
as Services Offload) mode supported in Junos OS release 12.1X44-D10 and later, IOCs are only
supported in front panel slots 1 through 3. See the Junos OS documentation for more information
about Express Path mode.
Supported Slots
IOCs are cold-swap-only modules. You must power-off the services gateway before removing,
replacing, or adding IOCs.
Swapping
Copyright © 2016, Juniper Networks, Inc.8
SRX1400, SRX3400, and SRX3600 Services Gateway Module Guide
