NP-IOCs are cold-swap-only. You must power-off the services gateway before removing, replacing,
or adding NP-IOCs.
Swapping
SERVICE LED, one bicolor
•
Off–The NP-IOC is administratively disabled.
•
Green–The NP-IOC is available to carry Ethernet traffic.
•
Amber–The NP-IOC is not available to carry Ethernet traffic.
OK/FAIL LED, one bicolor
•
Off–One or more of the following conditions apply:
•
The services gateway is not powered on.
•
The services gateway is still in the process of either booting or shutting down.
•
The services gateway is not configured for chassis clustering.
•
Steady Green–The services gateway is configured for chassis clustering, and the SCM is
operating normally.
•
Blinking Green–The NP-IOC is offline. To bring the NP-IOC online, press the ONLINE button.
•
Red–The NP-IOC has failed and is not operating normally.
LEDs
The serial number label for all IOC types is located as shown in Figure 10 on page 15.

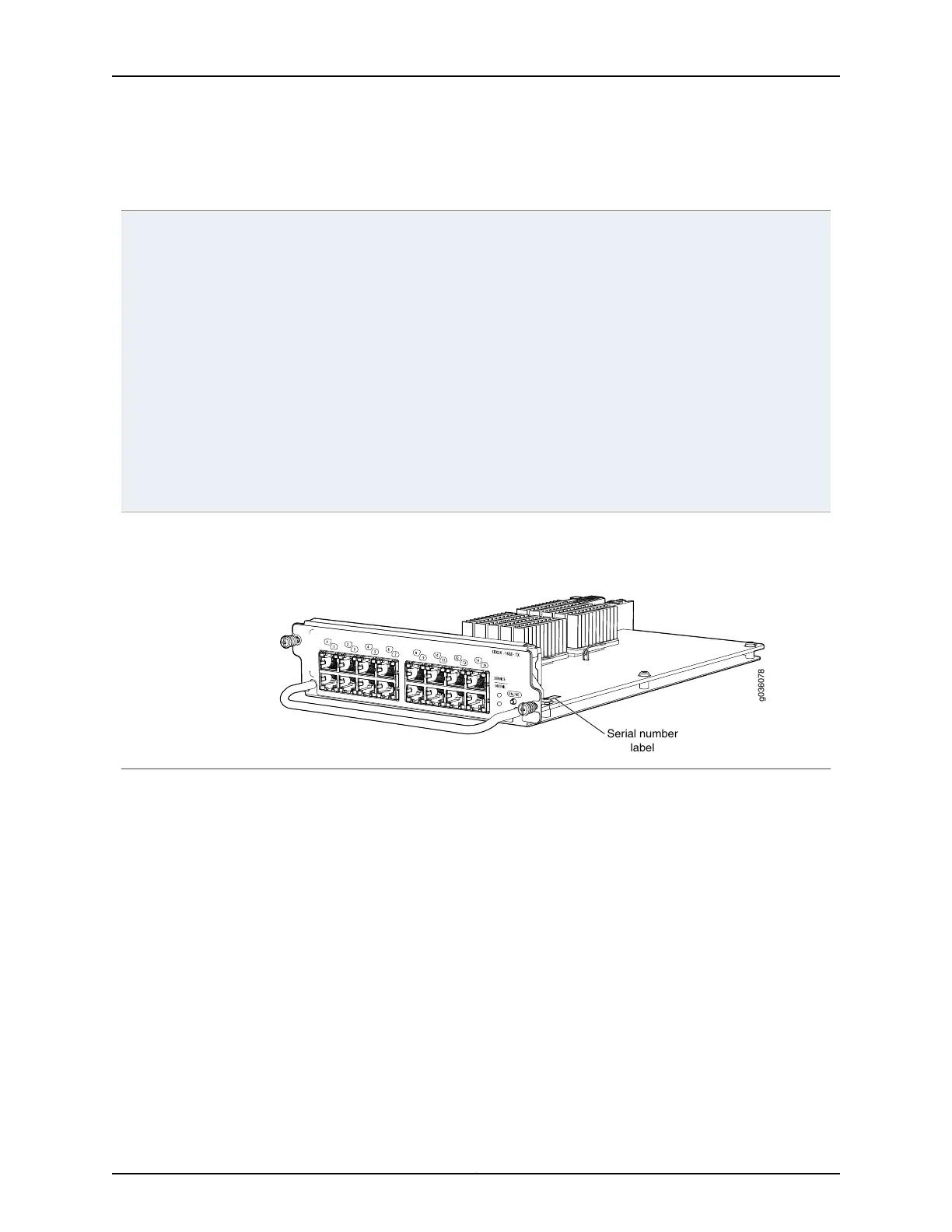

Figure 10: IOC Serial Number Label (SRX3K-16GE-TX Shown, Other
IOCs Similar)
g036078
Serial number
label
Serial Number
Location
Related
Documentation
SRX1400, SRX3400, and SRX3600 Services Gateway Module Overview on page 2•
• Modules Supported on SRX1400, SRX3400, and SRX3600 Services Gateways on
page 3
• Eligible Slots for SRX1400, SRX3400, and SRX3600 Services Gateway Modules on
page 4
• Installing Common Form Factor Modules In SRX1400, SRX3400, and SRX3600 Services
Gateways on page 22
15Copyright © 2016, Juniper Networks, Inc.
Network Processing I/O Card SRX1K3K-NP-2XGE-SFPP
