Juniper SSG 500M Series - PIM Summary

Front Panel  15
PIM Summary

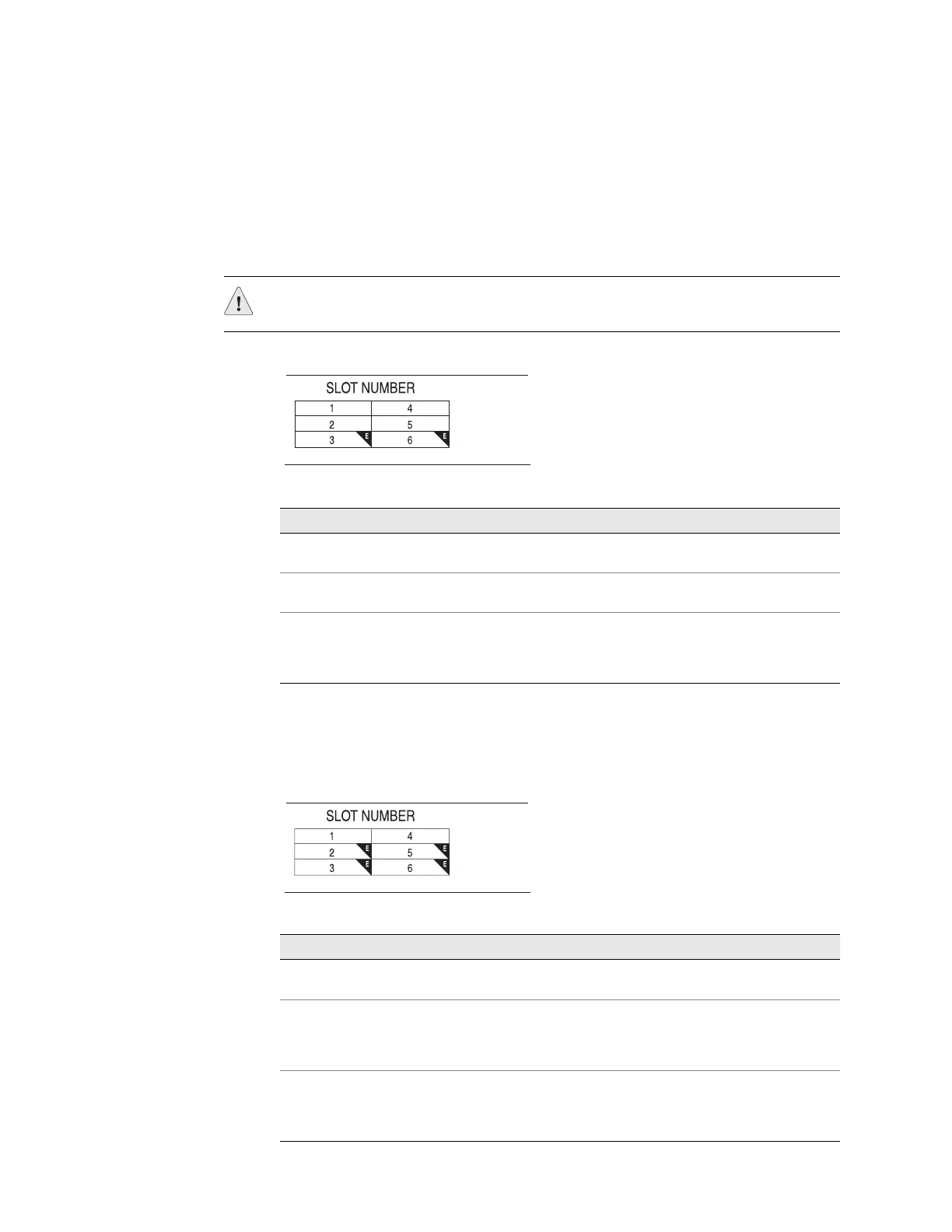

Figure 4 shows the slot numbering on an SSG 520M device. Table 4 shows the PIM
types you can install in the slots of an SSG 520M device. The E located on some of
the slots identifies where the enhanced PIMs (EPIMs) can be installed.
Figure 4: SSG 520M Slot Location
Table 4: PIM Slots, SSG 520M
Figure 5 shows the slot numbering on an SSG 550M device. Table 5 shows the PIM
types you can install in the slots of an SSG 550M device. The E located on some of
the slots identifies where the enhanced PIMs (EPIMs) can be installed.
Figure 5: SSG 550M Slot Location
Table 5: PIM Slots, SSG 550M
CAUTION: PIMs are not hot-swappable. PIMs must be installed in the front panel
slots before the device is started.
Slot PIM Types Slot PIM Types
1 WAN Connectivity (PIM only)
Serial, T1/E1, DS3
4 WAN Connectivity (PIM only)
Serial, T1/E1, DS3
2 WAN Connectivity (PIM only)
Serial, T1/E1, DS3
5 WAN Connectivity (PIM only)
Serial, T1/E1, DS3
3 LAN or WAN Connectivity
(PIM or EPIM)
10/100/1000, SFP,
FE Serial, T1/E1, DS3
6 LAN or WAN Connectivity
(PIM or EPIM)
10/100/1000, SFP,
FE Serial, T1/E1, DS3
Slot PIM Types Slot PIM Types
1 WAN Connectivity (PIM only)
Serial, T1/E1, DS3
4 WAN Connectivity (PIM only)
Serial, T1/E1, DS3
2 LAN or WAN Connectivity
(PIM or EPIM)
10/100/1000, SFP,
FE Serial, T1/E1, DS3
5 LAN or WAN Connectivity
(PIM or EPIM)
10/100/1000, SFP,
FE Serial, T1/E1, DS3
3 LAN or WAN Connectivity
(PIM or EPIM)
10/100/1000, SFP,
FE Serial, T1/E1, DS3
6 LAN or WAN Connectivity
(PIM or EPIM)
10/100/1000, SFP,
FE Serial, T1/E1, DS3
SSG
520M
SSG
550M
