SPARE PART DATA SHEET – COOLING WATER PUMP LC
REV
.
10
30-01-2018
27 / 32
Jurop
SpA
Via Crosera n° 50
33082 Azzano Decimo, PN (Italia)
T
EL
.
+39
0
434
636811
F
AX
.
+39
0
434
636812
http://www.jurop.it
e-mail: info@jurop.it





























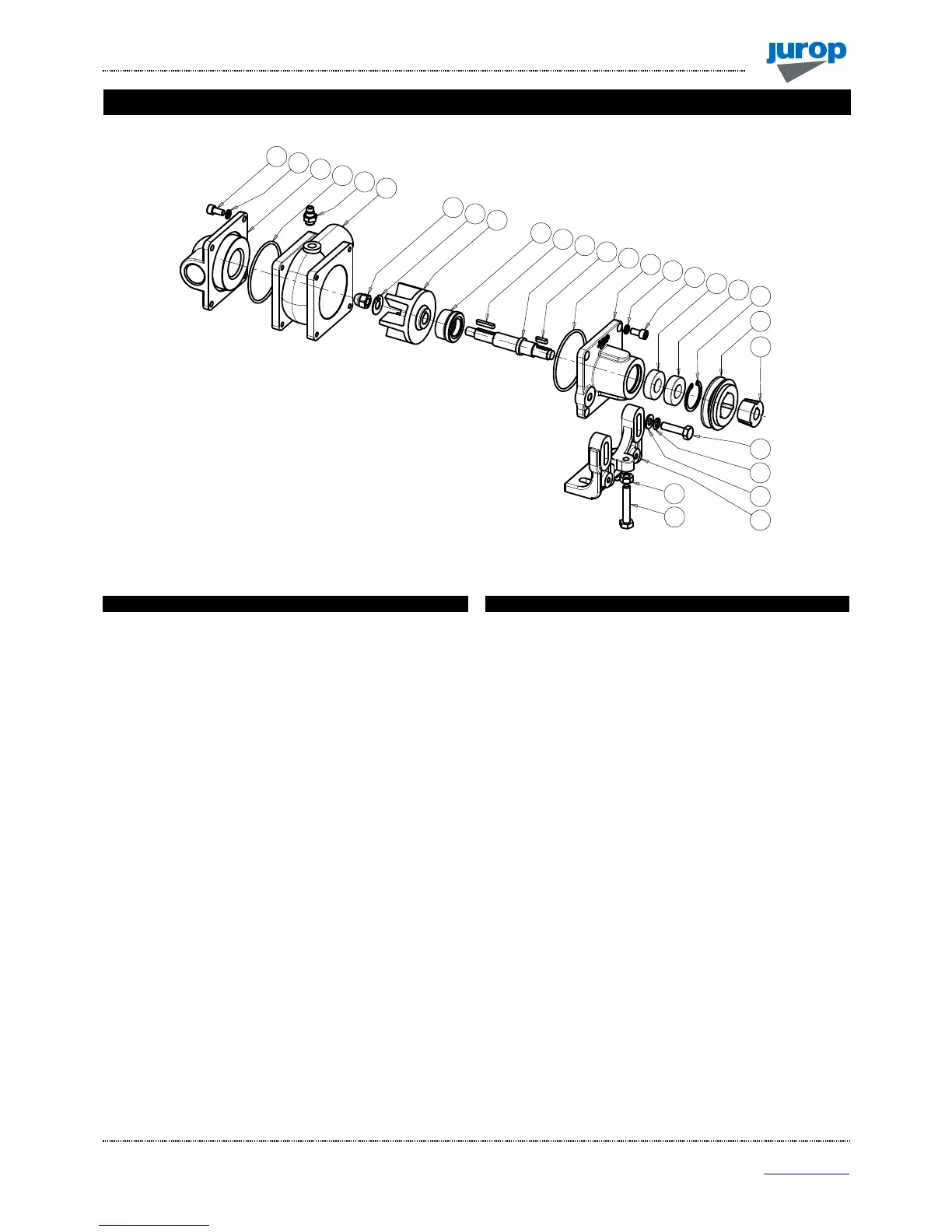

Cooling water pump LC
Pos.
Code Description Q.ty Pos.
Code Description Q.ty
1 1610506500 REAR FLANGE 1 14 4025422300 BUSHING 2820 Ø 16 1
2 1613500900 LOWER SUPPORT 1 15 4025422402 PULLEY SPZ 71 X 1 1
3 1613501000 FRONT SUPPORT 1 16 4026510525 SEEGER I 42 UNI 7437 1
4 1621502800 IMPELLER 1 17 4026102914 SCREW M8 x 60 1
5 1650009700 SHAFT 1 18 4026107214 SCREW M8 x 10 4
6 4026357006 WASHER M10 6 19 4026120401 SCREW M8 x 16 10
7 1685002400 SAFETY WASHER 1 20 4026308006 NUT M 10 1
8 4026904300 VENT PLUG 1/4 1 21 4026322106 NUT M 12 1
9 1687504500 HOUSING 1 22 4026350505 WASHER GROWER M8 10
10 4022200235 OR 4325 2 23 4026350608 WASHER GROWER M10 4
11 4022216915 MECHANICAL SEAL 1 24 4026500605 TAB 5 x 5 x 18 1
12 4023100516 BEARING 6004 RS1 2 25 4026500609 TAB 5 x 5 x 28 1
13 4025350021 BELT SPZ 975 1
COOLING
WATER
PUMP
LC
