AV-27BM3
AV-27CM3

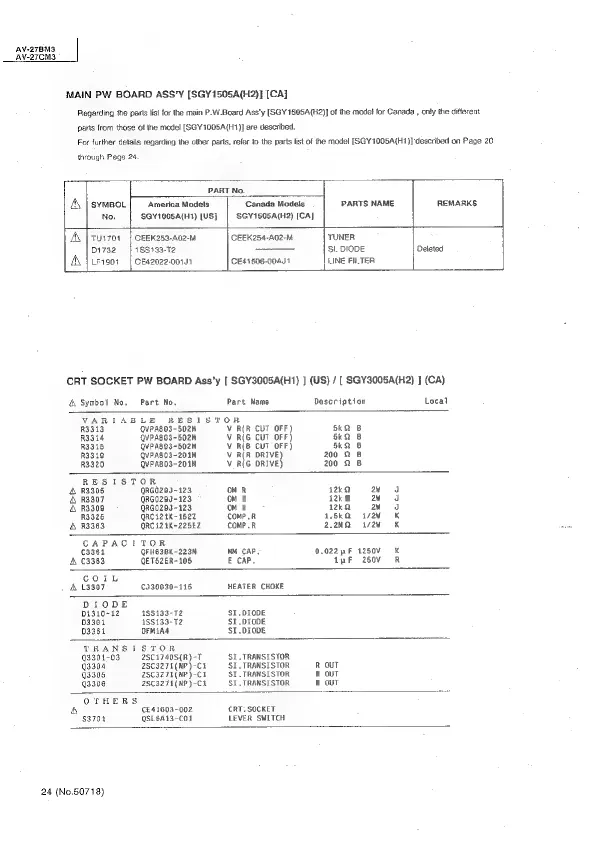

MAIN PW BOARD ASS’Y [SGY1505A(H2)] [CA]
Regarding the paris list for the main P.W.Board Ass'y [SGY1505A(H2)] of the model for Canada , only the different
parts from those of the model [S6Y1005A(H1)] are described.
For further details regarding the other parts, refer to the parts list of the model [SGY1005A(H1}] ‘described on Page 20
through Page 24.
PART No.
A SYMBOL America Models Canada Modeis: PARTS NAME REMARKS
No. SGY1005A(H1) [US] SGY1505A(H2) [CA]
A TUt701 CEEK253-A02-M CEEK254-A02-M TUNER
D1732 18$133-T2 ———— Sl DIODE Deleted
AN LF1901 | CE42022-001J1 CE41506-00AJ1 [ENE FUTER
CRT SOCKET PW BOARD Ass’y [ SGY300SA(H1) ] (US) / [ SGY3005A(H2) J (CA)
& Symbol No, Part No, Part Name Description Local
VARIABLE RESISTOR
R3313 QVPA803-502M Vv R(R CUT OFF) 5kQ B
R3314 QVPA803-502M V R(G CUT OFF) 5kQ B
R3315 QVPA803-502M V R(B CUT OFF) 5kQ B
R3319 QVPAS03-201M Vv R(R DRIVE) 200 2B
R3320 QVPA803-201M V_R(G DRIVE) 200 2 B
RESISTOR
A R3305 QRGO20J-123 OM R 12kQ awd
dy R3307 QRGO29J-123 OM R 12k Q awd
A R3309 QRGO29I-123 OM R 12k Q awd
R33265 QRC121K-152Z COMP.R 1.5kKQ 1/2W OK
dy R3363 QRC121K-225EZ COMP.R 2.2MQ 1/2W OK
CAPACITOR
C3361 QFHE3BK-223M MM CAP. 0.022pF 1250V K
A C3363 QETS2ER-105 E CAP. 1pF 260V R
COIL
A 13307 €330030-115 HEATER CHOKE
DIODE
Di310-12 18$133-T2 SI.DIODE
D331 188133-T2 SI.DIODE
03364 OFM1A4 SI.DIODE
TRANSISTOR
Q3301-03 28C1740S(R)-T SI, TRANSISTOR
Q3304 2SC3271(NP)-Ci SI.TRANSISTOR R OUT
Q3305 2SC3271(NP)-Ct SI. TRANSISTOR G OUT
Q3306 28C3271(NP)}-Ci SI, TRANSISTOR B OUT
OTHERS
4 CE41603-002 CRT. SOCKET
$3704 QSLGA13-COL LEVER SWITCH
24 (No.50718)
