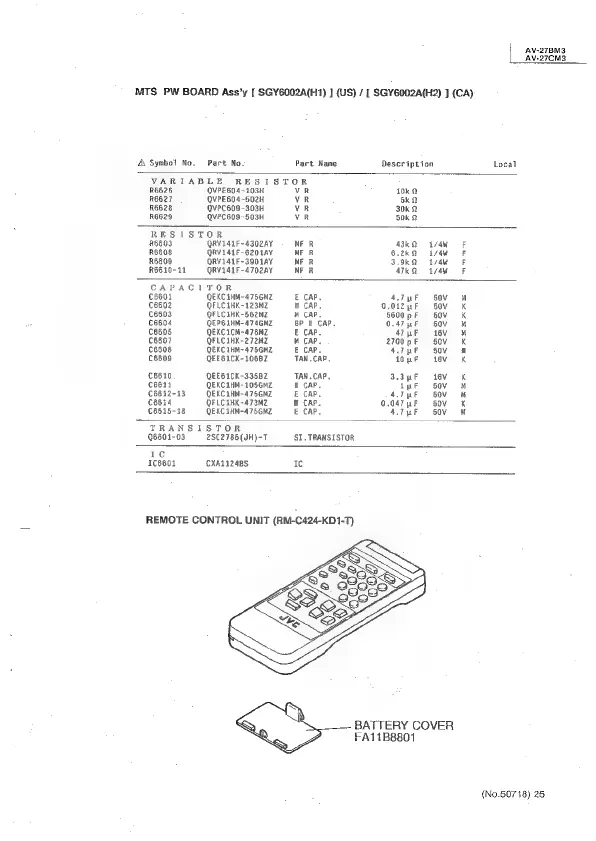

JVC AV-27BM3

MTS PW BOARD Ass’y [ SGY6002A(H1) ] (US) / [| SGY6002A(H2) J (CA)
A Symbol No, Part No- Part Name Description Local
VARIABLE RESISTOR
R6626 QVPE604-103H vR 10k 2
R6627 QVPE604-602H VR 5k
R6628 QVPC609-303H VR 30kQ
R6629 QVPC609-503H VR 50K a
RESISTOR
6603 QRV141F~4302AY MFR 43kQ 1/4W OF
R6608 QRV141F-6201AY MER 6.2kQ 1/4W OF
R6609 QRV141F-3901AY MFR 3.9kQ 1/4W OF
R6610-11 QRVI41F-4702AY MFR 47kQ 1/4W OF
CAPACITOR
C6601 QEKC1HM~4756MZ E CAP. A.7JyF 50V0 M
C6602 QFLCAHK-123MZ ™ CAP. 9,012 pF SOV. OK
C6603 QFLCAHK-562MZ CAP, 5600 pF 60V- K
C6604 QEP61HM-4746GMZ @P E CAP. O.47yF 60V
C6605 QEKC1CM-476MZ E CAP. 47F 16V0 M
C6607 QFLC1HK-272m2Z ™ CAP. 2700 pF §0vV K
C6603 QEKC1HM~475GMZ E CAP. 4.7pF §0V M
C6609 QEEG1CK-106BZ TAN.CAP. 10pF 16V0 2K
C6610 QEE6 1CK-335BZ TAN.CAP. 3.3 pF 16V0 OK
C6614 QEKC1HM- 105GMZ — CAP, ipF s0V M
CG6612-13 QEKC1HM-476GMZ E CAP. 4.7pF 60v- iM
C6614 QFLCIHK-473MZ M CAP. 0.047 pF 50V OK
C6615-18 QEKC1HM-475GMZ € CAP. 4.7 SOV OM
TRANSISTOR
6601-03 2SC2785(JH)-T SI. TRANSISTOR
1C
1C6601 CXA11248S Ic
REMOTE CONTROL UNIT (RM-C424-KD1-T)
BATTERY COVER
FA11B8801
