RX-MXG9BK

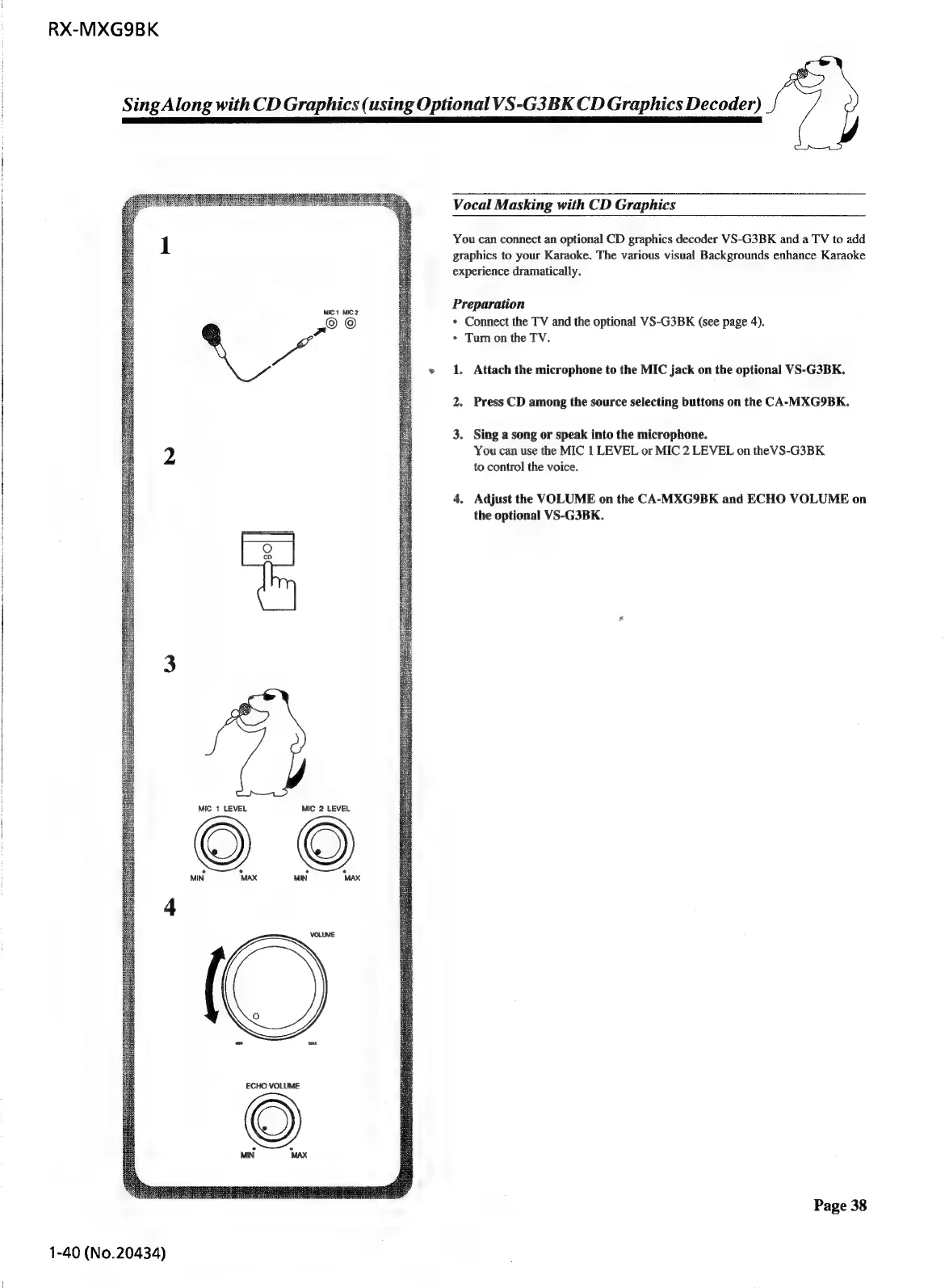

Sing Along with CD Graphics (using Optional VS-G3BK CD Graphics Decoder)
a ae ee EE ee eee ee ee a
Vocal Masking with CD Graphics
You can connect an optional CD graphics decoder VS-G3BK and a TV to add
graphics to your Karaoke. The various visual Backgrounds enhance Karaoke
experience dramatically.
Preparation
* Connect the TV and the optional VS-G3BK (see page 4).
* Turn on the TV.
Mics Mic2
7
« 1. Attach the microphone to the MIC jack on the optional VS-G3BK.
2. Press CD among the source selecting buttons on the CA-MXG9BK.
3. Sing a song or speak into the microphone.
You can use the MIC 1 LEVEL or MIC 2 LEVEL on the VS-G3BK.
to control the voice.
4. Adjust the VOLUME on the CA-MXG9BK and ECHO VOLUME on
the optional VS-G3BK.
MIC 1 LEVEL MIC 2 LEVEL
OC) ©
MIN ‘MAX MIN MAX
VOLUME
ECHO VOLUME
Page 38
