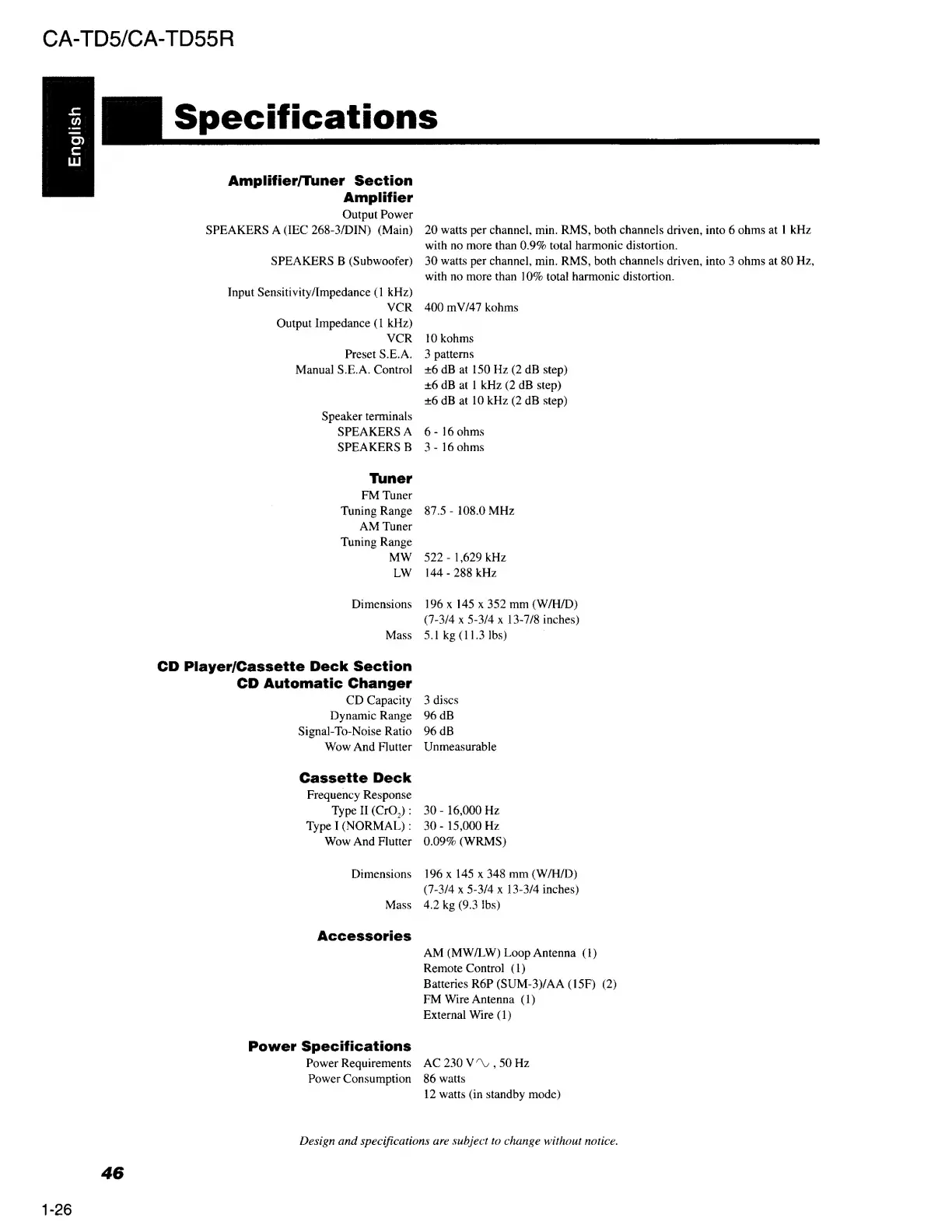

CA-TD5/CA-TD55R
Amplifier/Tuner Section
Amplifier
Output Power
SPEAKERS A (IEC 268-3/DIN) (Main)
SPEAKERS B (Subwoofer)
Input Sensitivity/Impedance (1 kHz)
VCR
Output Impedance (1 kHz)
VCR
Preset S.E.A.
Manual S.E.A. Control
Speaker terminals
SPEAKERS A
SPEAKERS B
Tuner
FM Tuner
Tuning Range
AM Tuner
Tuning Range
MW
LW
Dimensions
Mass
CD Player/Cassette Deck Section
CD Automatic Changer
CD Capacity
Dynamic Range
Signal-To-Noise Ratio
Wow And Flutter
Cassette Deck
Frequency Response
Type II (CrO,) :
Type I (NORMAL) :
Wow And Flutter
Dimensions
Mass
Accessories
Power Specifications
Power Requirements
Power Consumption
Specifications
20 watts per channel, min. RMS, both channels driven, into 6 ohms at | kHz
with no more than 0.9% total harmonic distortion.
30 watts per channel, min. RMS, both channels driven, into 3 ohms at 80 Hz,
with no more than 10% total harmonic distortion.
400 mV/47 kohms
10 kohms
3 patterns
+6 dB at 150 Hz (2 dB step)
+6 dB at | kHz (2 dB step)
+6 dB at 10 kHz (2 dB step)
6 - 16 ohms
3 - 16 ohms
87.5 - 108.0 MHz
522 - 1,629 kHz
144 - 288 kHz
196 x 145 x 352 mm (W/H/D)
(7-3/4 x 5-3/4 x 13-7/8 inches)
5.1 kg (11.3 Ibs)
3 discs
96 dB
96 dB
Unmeasurable
30 - 16,000 Hz
30 - 15,000 Hz
0.09% (WRMS)
196 x 145 x 348 mm (W/H/D)
(7-3/4 x 5-3/4 x 13-3/4 inches)
4.2 kg (9.3 ibs)
AM (MW/LW) Loop Antenna (1)
Remote Control (1)
Batteries R6P (SUM-3)/AA (15F) (2)
FM Wire Antenna (1)
External Wire (1)
AC 230 VU , 50 Hz
86 watts
12 watts (in standby mode)
Design and specifications are subject to change without notice.
46
1-26
