CAUTION: Make all connections before plugging the Unit into an AC power outlet.

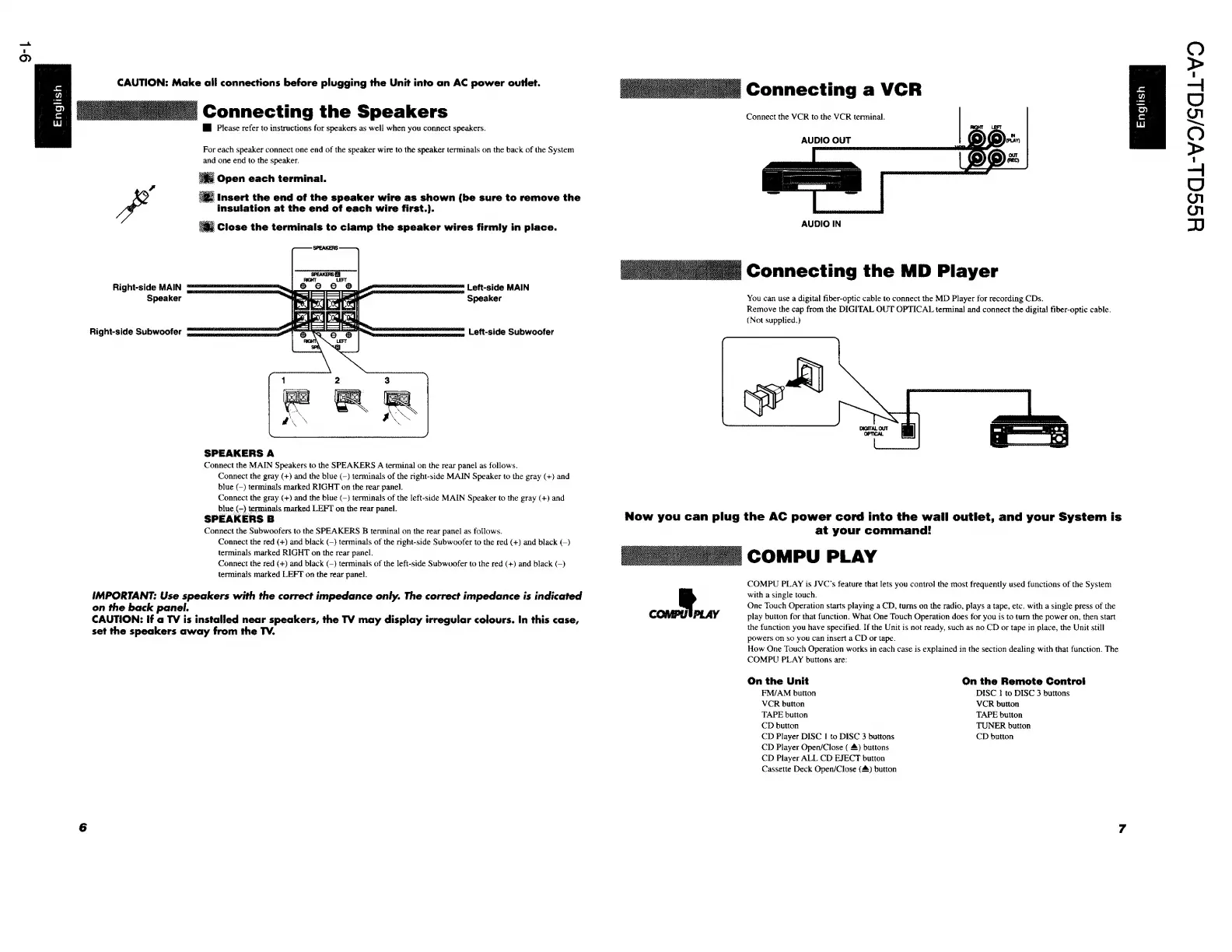

Connecting the Speakers
@ Please refer to instructions for speakers as well when you connect speakers.
For each speaker connect one end of the speaker wire to the speaker terminals on the back of the System
and one end to the speaker.
Open each terminal.
nsert the end of the speaker wire as shown (be sure to remove the
insulation at the end of each wire first.).
; Close the terminals to clamp the speaker wires firmly in place.
Right-side MAIN ° wae |_ett-side MAIN
Speaker Speaker
Right-side Subwoofer iia, =m Left-side Subwoofer
SPEAKERS A
Connect the MAIN Speakers to the SPEAKERS A terminal on the rear panel as follows.
Connect the gray (+) and the blue (—) terminals of the nght-side MAIN Speaker to the gray (+) and
blue (—) terminals marked RIGHT on the rear panel.
Connect the gray (+) and the blue (—) terminals of the left-side MAIN Speaker to the gray (+) and
blue (-) terminals marked LEFT on the rear panel.
SPEAKERS B
Connect the Subwoofers to the SPEAKERS B terminal on the rear panel as follows.
Connect the red (+) and black (—) terminals of the right-side Subwoofer to the red (+) and black (-)
terminals marked RIGHT on the rear panel.
Connect the red (+) and black (—}) terminals of the left-side Subwoofer to the red (+) and black (-)
terminals marked LEFT on the rear panel.
IMPORTANT: Use speakers with the correct impedance only. The correct impedance is indicated
on the back panel.
CAUTION: if a TV is installed near speakers, the TV may display irregular colours. In this case,
set the speakers away from the TV.
Connecting a VCR
Connect the VCR to the VCR tenninal.
Faith ed ee a
AUDIO IN
Connecting the MD Player
You can use a digital fiber-optic cable to connect the MD Player for recording CDs.
Remove the cap from the DIGITAL OUT OPTICAL terminal and connect the digital fiber-optic cable.
(Not supplied.)
Now you can plug the AC power cord into the wall outlet, and your System is
at your command!
COMPU PLAY
COMPU PLAY is JVC's feature that lets you control the most frequently used functions of the System
with a single touch.
One Touch Operation starts playing a CD, turns on the radio, piays a tape, etc. with a single press of the
play button for that function. What One Touch Operation does for you is to turn the power on, then start
the function you have specified. If the Unit is not ready, such as no CD or tape in place, the Unit still
powers on so you can insert a CD or tape.
How One Touch Operation works in each case is explained in the section dealing with that function. The
COMPU PLAY buttons are:
conte
On the Unit On the Remote Control
FM/AM button DISC | to DISC 3 buttons
VCR button VCR button
TAPE button TAPE button
CD button TUNER button
CD Player DISC 1 to DISC 3 buttons CD button
CD Player Open/Close ( 4) buttons
CD Player ALL CD EJECT button
Cassette Deck Open/Close (4) button
YHSSQL-VO/SGL-VO
