JVC CA-TD5 User Manual

This illustration shows the
Remote Control for CA-
TD55R. The Remote Control
for CA-TD5 does not have the
RDS CONTROL button or
e.any. RDS related
(Recording) _

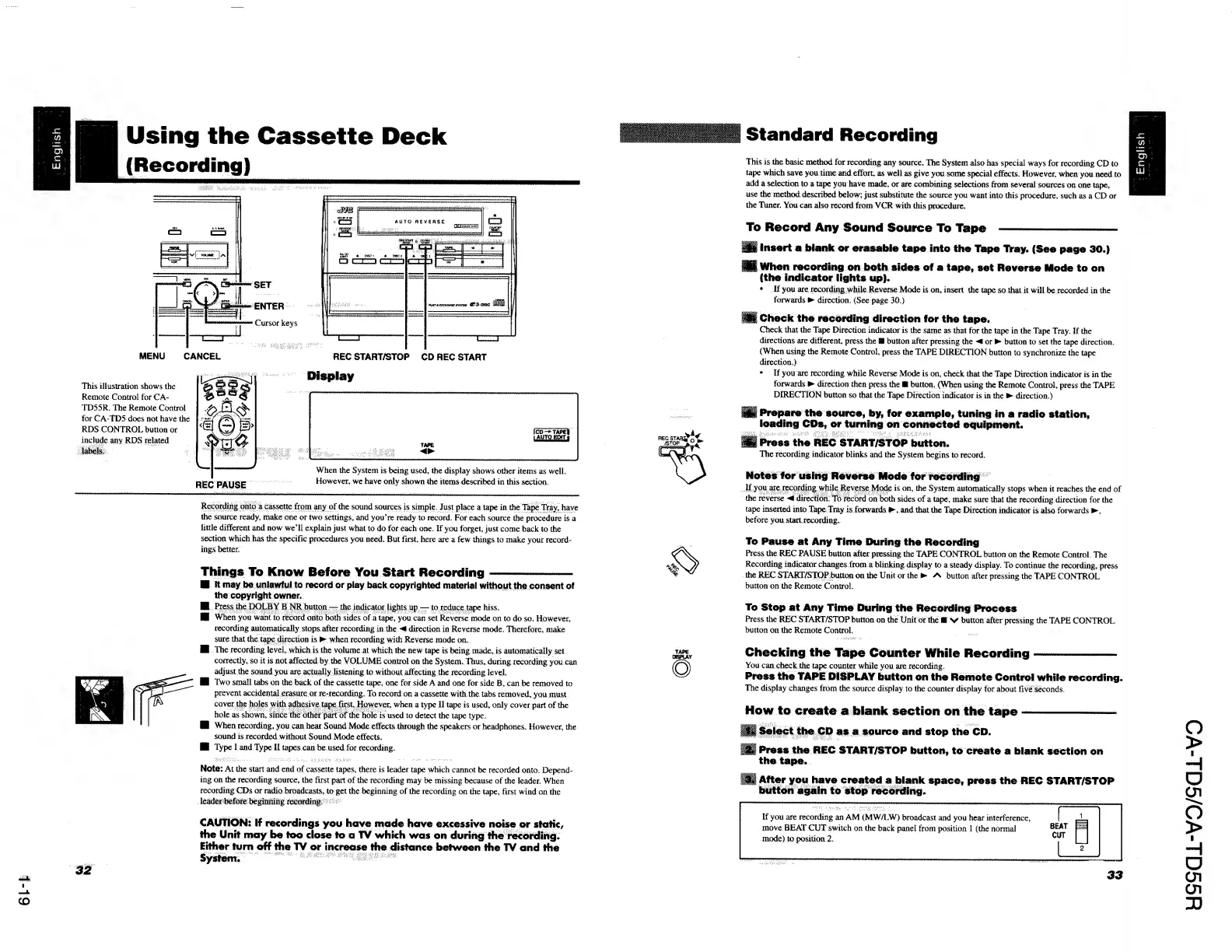

Using the Cassette Deck
13%
suasuece ane GEL gS
MENU CANCEL REC START/STOP CD REC START
‘Display
When the System is being used, the display shows other items as well.
However, we have only shown the items-described in this section.
the source ready, make one or two settings, and you’ re realy. to record. For each source the procedure i isa
little different and now we’ll explain just what to do for each one. If you forget, just come back to the
section. which has the specific procedures you need. But first, here are a few things to make your record-
ings better.
Things To Know Before You Start Recording
it may. be. unlawful to record or play back copyrighted material without the consent of
the copyright owner...
lights. é
“i ‘When you want to record onto both sides of a tape, you can set Reverse mode on to do so. However,
recording automatically stops. after recording in the. -@ direction in Reverse mode. Therefore, make
sure that. the tape direction is P when recording with Reverse. mode on..
HB The recording level, which is the volume at which the new tape is being made, is automatically set.
correctly, so it is. not affected by. the VOLUME control on the System.. Thus,.during recording you can
adjust the sound you are. actually listening to without affecting the recording level.
HE Two small tabs on the back of the cassette tape, one for side A and one for side B, can be removed to
prevent. accidental STASUre, OF resrecording. To. record on a cassette with the tabs removed, you must.
cover the hal. I, when a type I] tape is used, only cover part of the
2 as the oth f the hole is used to detect the tape type.
M@ When recording, you.can.hear Sound. Mode.effects. through the speakers or headphones. However, the
sound ts recorded without Sound Mode. effects.
= Type Land. Type) I tapes can be. used for recording.
Note: At the s start and nil sf cassette iene: “heres is ee ips qhich cannot be recorded onto. Depend-
ing on the recording source, the first part of the recording may be missing because of the leader. When
recording CDs or radio broadcasts, to get the beginning of the recording on the tape, first wind on the
leader before begintitig recording
CAUTION: If recordings you have made have excessive noise or static,
the Unit may be too close to a TV which was on duritig the recording:
Either turn off the TV or increase the distance between the TV and the
Sac
&
TAPE
R
Standard Recording
This is the basic. method for recording any source, The System also has special ways for recording CD to
tape which save you time.and effort, as well as give you.some special effects. However, when you need.to
add a.selection.to a tape you have made, or are combining selections from several sources on one tape,
use the method described below; just substitute the source you want into this procedure, such as a CD or
the Tuner. You can also record from VCR with this procedure.
$e
Rll
3)
&
Ld
To Record Any Sound Source To Tape
nsert a blank or erasable tape into the Tape Tray. (See page 30.)
; When recording on. both sides of a tape, set Reverse Mode to on
{the indicator lights up).
* If you are. recording.while Reverse Mode is on, insert the tape so.that it will be recorded in the
forwards & direction. (See page 30.)
Check the recording direction for the tape.
Check that the Tape Direction indicator is the same as that for the tape in the Tape Tray. If the
directions are different, press the M button after pressing the «4 or button to set the tape direction.
(When using the Remote Control, press the TAPE DIRECTION button to synchronize the tape
direction.)
* If youare recording while Reverse Mode is on, check that the Tape Direction indicator is in the
DIRECTION button so that the Tape Direction indicator is in the direction.)
. Prepare the source, by, for example, tuning in a radio station,
loading CDs, or turning | on connected equipment.
; Press the REC START/STOP button.
The recording indicator blinks and the System begins to record.
Notes for using Reverse’ Mode for recording”
ode is on, the System automatically stops when it reaches the end of
rd on both sides of a tape, make sure that the recording direction for the
tape inserted into Tape. Tray.is forwards ®,.and that the Tape Direction indicator is also forwards ,
before you. start.recording..
To Pause at Any Time During the Recording
Press the REC PAUSE button after pressing the TAPE CONTROL button on the Remote Control. The
Recording indicator. changes. from.a blinking display to a steady display. To continue the recording, press
the REC START/STOP button on the Unit or the ® A button after pressing the TAPE CONTROL
button on the Remote Control.
To Stop at Any Time During the Recording Process
Press the REC START/STOP button on the Unit of thé mY button after pressing the TAPE CONTROL
button on the Remote Control.
Checking the Tape Counter While Recording
You can check the tape counter while you are recording.
Press the TAPE DISPLAY button on the Remote Control while recording.
The display changes from the source display to the counter display for about five’seconds.
How to create a blank section on the tape
GD as a source and stop the CD.
| Press the REC START/STOP button, to create a blank section on
the tape. .
| After you have created a blank space, press the REC START/STOP
If you are recording an AM (MW/LW) broadcast and you hear interference,
.move BEAT CUT switch on the back panel from position 1 (the normal
-mMode).to position 2..
