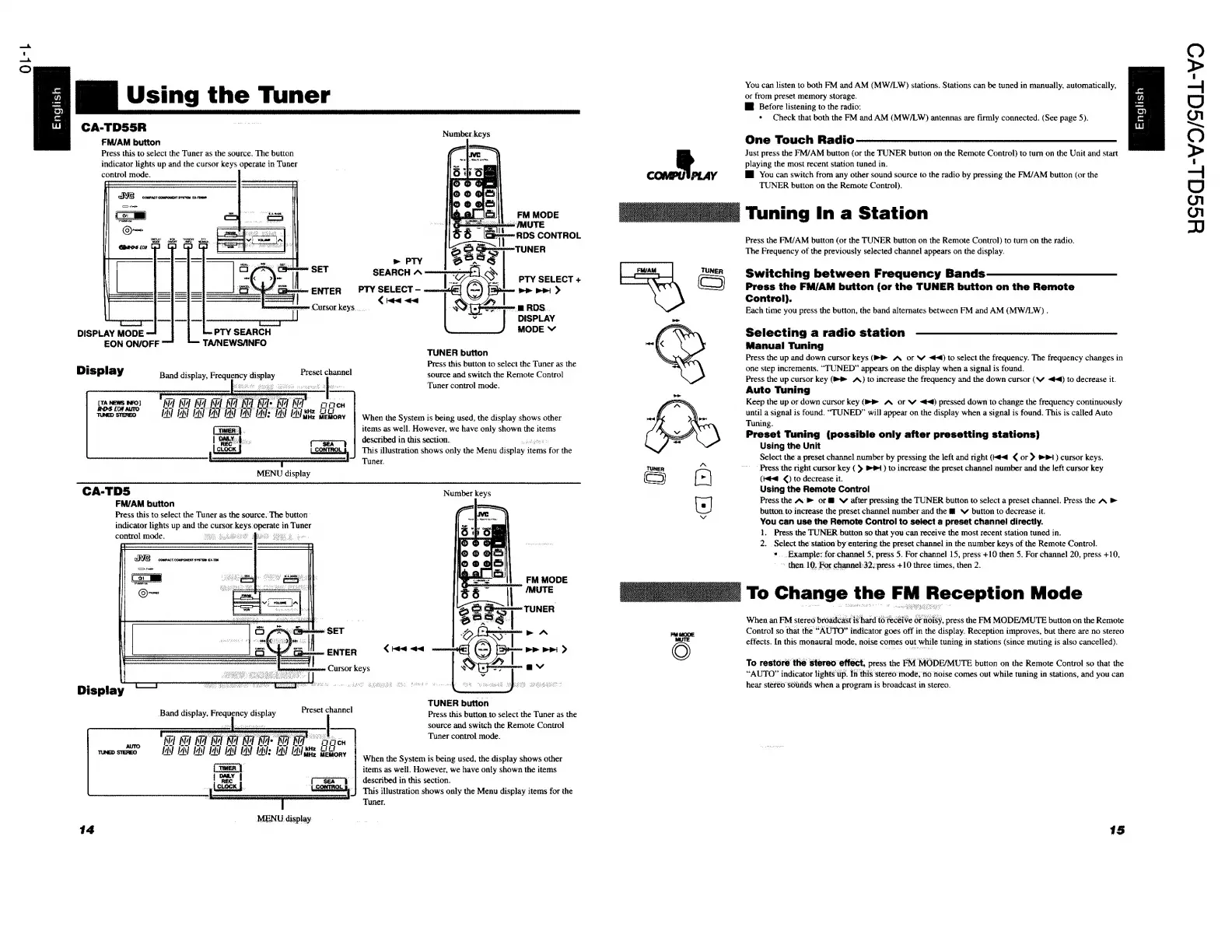

Using the Tuner
CA-TD55R
FM/AM button
Press this to select the Tuner as the source. The button
indicator lights up and the cursor keys operate in Tuner
control mode.
Number.keys
eg COMPACT COMINAIENT EYETEM EA-TOMHE
end
eer
Sor
FM MODE
MMUTE
“RDS CONTROL
“TUNER
oo «ald SET » PTY
BEDE PTY SELECT +
- ww ENTER PTY SELECT - PP PP >
=— < aed ~<a
a DISPLAY
DISPLAY MODE PTY SEARCH MODE V
EON ON/OFF TA/NEWSANFO
TUNER button
z Press this button to select the Tuner as the
Display Preset channel
source and switch the Remote Control
Tuner control mode.
Band display, Frequency display
When the System is being used, the display shows other
items as well. However, we have only shown the items
described in this section. ppl gen
This illustration shows only the Menu display items for the
MENU display
CA-TD5
FM/AM button
Press this to select the Tuner as the source. The button:
indicator lights up and the cursor. keys:operate in Tuner
contral made.
Number keys
eV (e} COMPACT COMPONENT SYSTEM EX-TDE
od
___ FM MODE
@-=
/MUTE
“TUNER
TUNER button
Press this button to select the Tuner as the
source and switch the Remote Control
Tuner control. mode.
Preset channel
Band display, Frequency display
When the System is being used, the display shows other
items as well. However, we have only shown the items
' described in this section.
This illustration shows only the Menu display items for the
Tuner.
MENU display
14
cone Mover
Fit MODE
O
TUNER
You can listen to both FM and AM (MW/LW) stations. Stations can be tuned in manually, automatically,
or from preset memory storage.
WE Before listening to the radio:
* Check that both the FM and AM (MW/LW) antennas are firmly connected. (See page 5).
One Touch Radio
Just press the FM/AM button (or the TUNER button on the Remote Control) to turn on the Unit and start
playing the most recent station tuned in.
MM You can switch from any other sound source to the radio by pressing the FM/AM button (or the
TUNER button on the Remote Control).
Tuning In a Station
Press the FM/AM button (or the TUNER button on the Remote Control) to turn on the radio,
The Frequency of the previously selected channel appears on the display.
Switching between Frequency Bands
Press the FM/AM button (or the TUNER button on the Remote
Control).
Each time you press the button, the band altemmates between FM and AM (MW/LW) .
Selecting a radio station
Manual Tuning
Press the up and down cursor keys (> A or VW ~#<) to select the frequency. The frequency changes in
one step increments. “TUNED” appears on the display when a signal is found.
Press the up cursor key (® A) to increase the frequency and the down cursor (W ~#) to decrease it.
Auto Tuning
Keep the up or down cursor key (ht A or Vv ~#€) pressed down to change the frequency continuously
until a signal is found. “TUNED” will appear on the display when a signal is found. This is called Auto
Tuning.
Preset Tuning (possible only after presetting stations}
Using the Unit
Select the a preset channel number by pressing the left and right (4 < or > 1) cursor keys.
Press the nght cursor key ( > P41) to increase the preset channel number and the left cursor key
(il <) to decrease it.
Using the Remote Control
Press the A» of @ © after pressing the TUNER button to select a preset channel. Press the A
button to increase the preset channel number and the M™ ‘ button to decrease it.
You can use the Remote Control to select a preset channel directly.
1. Press the TUNER button so that you'can receive the most recent station tuned in.
2. _ Select the station by entering the preset channel in the number keys of the Remote Control.
*.. Example: for channel 5, press 5. For channel 15, press +10 then 5. For channel 20, press +10,
~~ then: 10. For channel 32zpress +10 three times, then 2.
To Change the FM Reception Mode
When an FM stereo broade ), press the FM MODE/MUTE button on the Remote
Control so that the “AUTO” indicator goes off in the display. Reception improves, but there are no stereo
effects. In this monaural mode, noise comes out while tuning im stations (since muting is also cancelled).
To restore the stereo effect, press the FM M
“AUTO” indicator lights up. In this steréo mode; tio noise comes out while tuning in stations, and you can
hear steréo’sounds when a program is broadcast in stereo.
15
