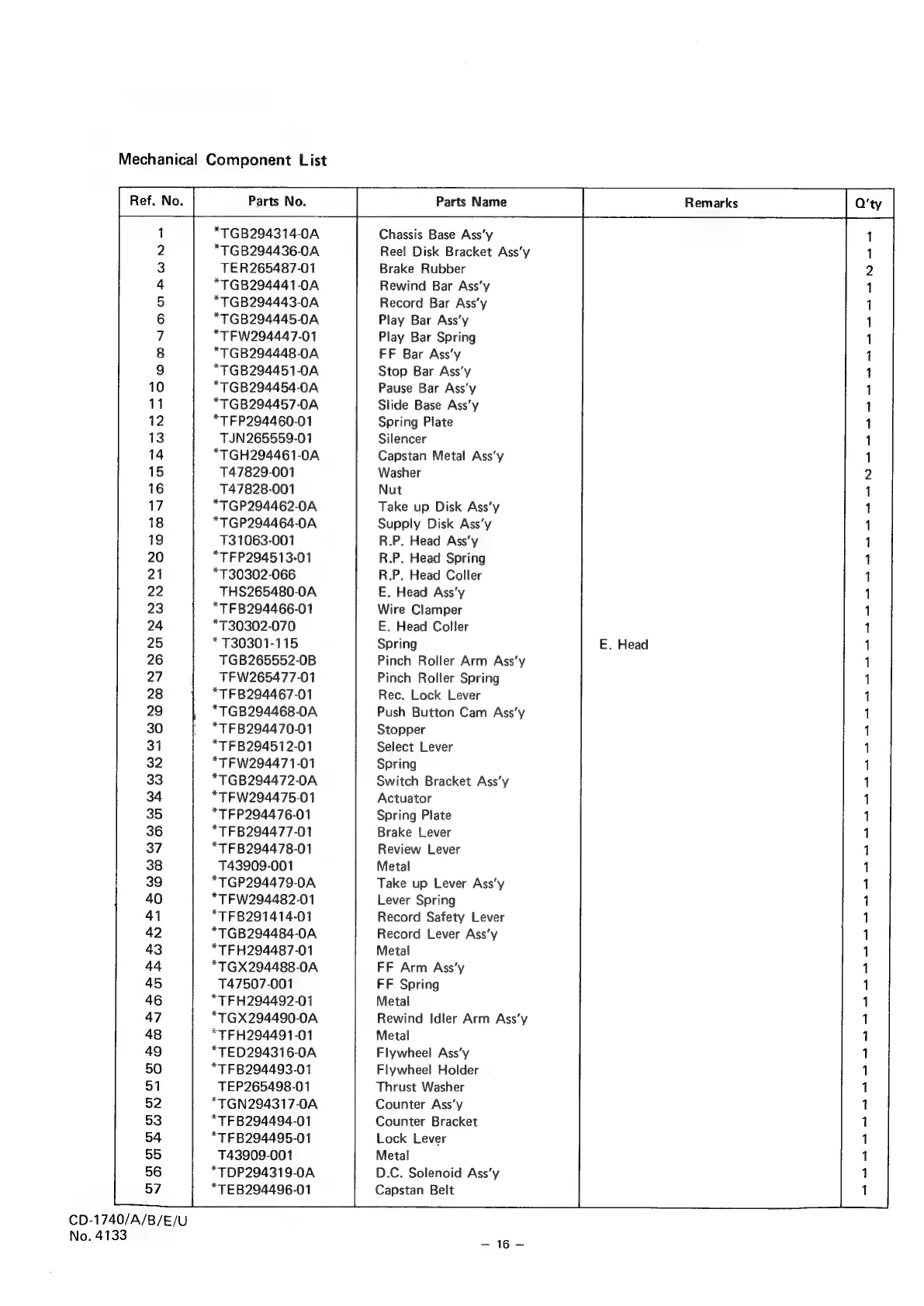

Mechanical Component List
*TFW294447-01
*TGB294448-0A
*TGB294451-0A
Play Bar Spring
FF Bar Ass’y
Stop Bar Ass’y
1 *TGB294314-0A Chassis Base Ass’y
2 *TGB294436-0A Reel Disk Bracket Ass’y
3 TER265487-01 Brake Rubber
4 *TGB294441-0A Rewind Bar Ass‘y
5 *TGB294443-0A Record Bar Ass‘y
6 *TGB294445-0A Play Bar Ass’y
7
8
9
*TGB294454-0A Pause Bar Ass‘y
*TGB294457-0A Slide Base Ass’y
*TFP294460-01 Spring Plate
TJN265559-01 Silencer
*TGH294461-0A Capstan Metal Ass’y
T47829-001 Washer
T47828-001 Nut
*TGP294462-0A Take up Disk Ass’y
*TGP294464-0A Supply Disk Ass’y
T31063-001 R.P. Head Ass’y
*TFP294513-01 R.P. Head Spring
*T30302-066 R.P. Head Coller
THS265480-0A E. Head Ass’y
*TFB294466-01 Wire Clamper
*T30302-070 E. Head Coller
*T30301-115 Spring
TGB265552-0B Pinch Roller Arm Ass‘y
TFW265477-01 Pinch Roller Spring
*TFB294467-01 Rec. Lock Lever
*TGB294468-0A Push Button Cam Ass‘y
*TFB294470-01 Stopper
*TFB294512-01 Select Lever
*TFW294471-01 Spring
*TGB294472-0A Switch Bracket Ass’y
*TFW294475-01 Actuator
*TFP294476-01 Spring Plate
*TFB294477-01 Brake Lever
*TFB294478-01 Review Lever
T43909-001 Metal
*TGP294479-0A Take up Lever Ass‘y
*TFW294482-01 Lever Spring
*TFB291414-01 Record Safety Lever
*TGB294484-0A Record Lever Ass’y
*TFH294487-01 Metal
*TGX294488-0A FF Arm Ass’y
T47507-001 FF Spring
*TFH294492-01 Metal
*TGX294490-0A Rewind Idler Arm Ass’y
*TFH294491-01 Metal
*TED294316-0A Flywheel Ass’y
*TFB294493-01 Flywheel Holder .
TEP265498-01
*TGN294317-0A
Thrust Washer
Counter Ass’y
*TFB294494-01 Counter Bracket
*TFB294495-01 Lock Lever
T43909-001 Metal
*TDP294319-0A D.C. Solenoid Ass‘y
BAAR PPP Be MPP PFrerrrrrrr rr Fee eH HM BM BM AM BS SB BM @ Sm mo Ss SD Ss ew ms ow os os os so
*TEB294496-01 Capstan Belt
CD-1740/A/B/E/U
No. 4133
«= 16—
