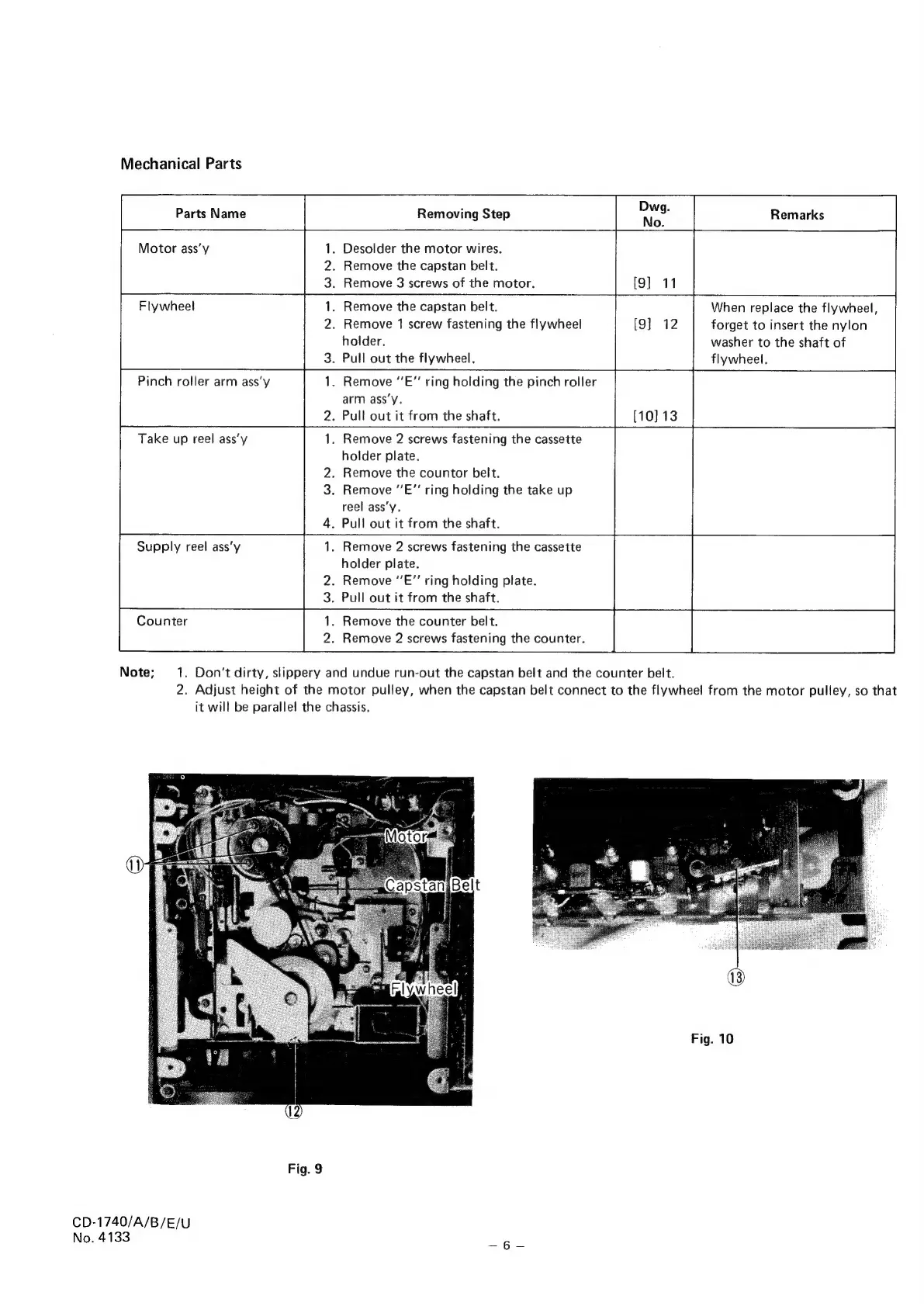

Mechanical Parts
Parts Name Removing Step
1. Desolder the motor wires.
2. Remove the capstan belt.
3. Remove 3 screws of the motor.
Motor ass’y
When replace the flywheel,
forget to insert the nylon
washer to the shaft of
flywheel.
1. Remove the capstan belt.
2. Remove 1 screw fastening the flywheel
holder.
3. Pull out the flywheel.
Flywheel
1. Remove “’E” ring holding the pinch roller
arm ass’y.
2. Pull out it from the shaft.
Pinch roller arm ass’y
1. Remove 2 screws fastening the cassette
holder plate.
2. Remove the countor belt.
3. Remove “E” ring holding the take up
reel ass’y.
4. Pull out it from the shaft.
1.
Take up reel ass’y
Remove 2 screws fastening the cassette
holder plate.
2. Remove “’E” ring holding plate.
3. Pull out it from the shaft.
Counter 1. Remove the counter belt.
2. Remove 2 screws fastening the counter.
Note; 1. Don’t dirty, slippery and undue run-out the capstan belt and the counter belt.
2. Adjust height of the motor pulley, when the capstan belt connect to the flywheel from the motor pulley, so that
it will be parallel the chassis.
Supply reel ass’y
Fig. 10
Fig. 9
CD-1740/A/B/E/U
No. 4133 an
