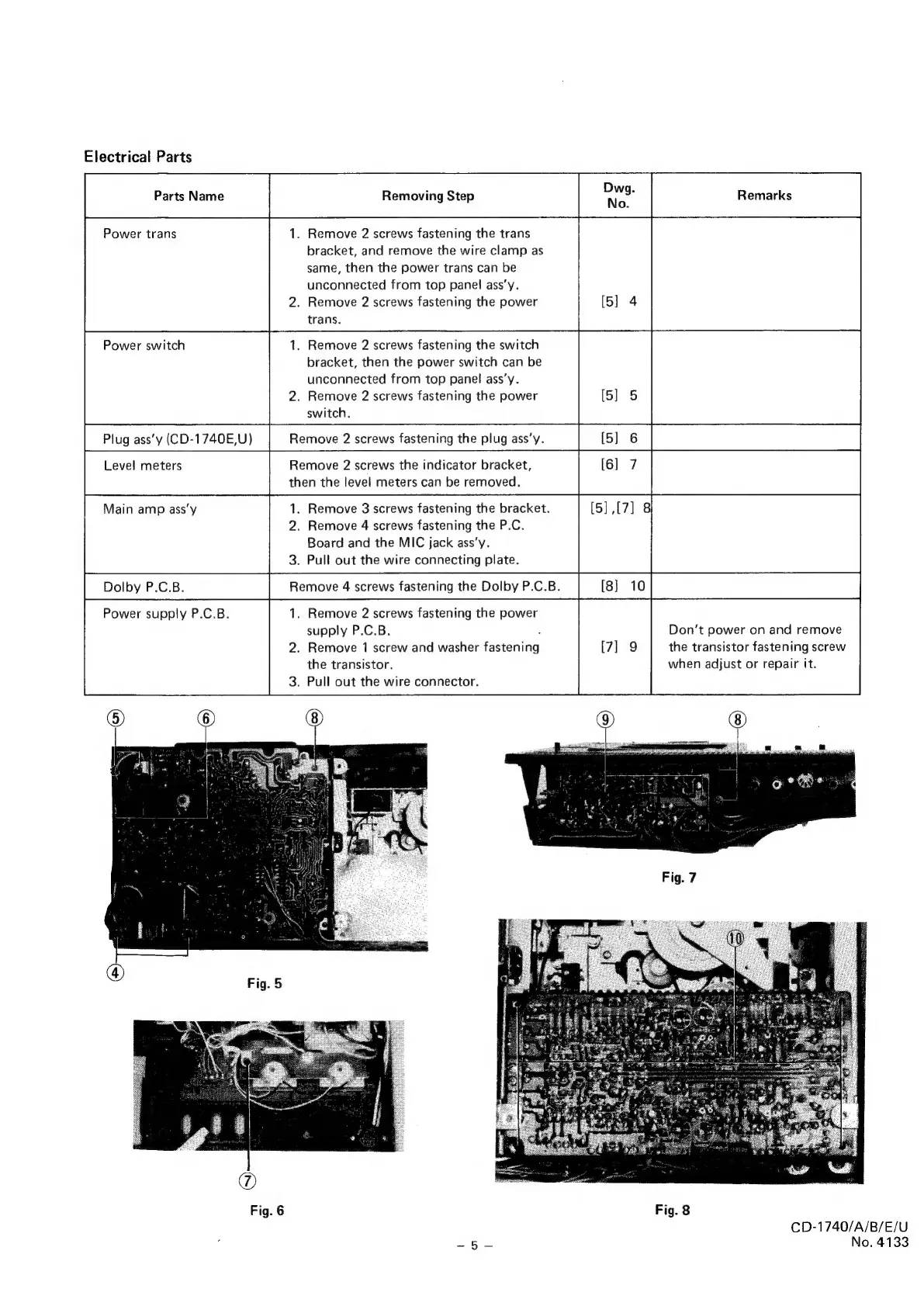

Electrical Parts
Power trans
Power switch
1. Remove 2 screws fastening the trans
bracket, and remove the wire clamp as
same, then the power trans can be
unconnected from top panel ass’y.
2. Remove 2 screws fastening the power
trans.
1. Remove 2 screws fastening the switch
bracket, then the power switch can be
unconnected from top panel ass’y.
2. Remove 2 screws fastening the power
switch.
Plug ass’y (CD-1740E,U) Remove 2 screws fastening the plug ass’y.
Level meters Remove 2 screws the indicator bracket,
then the level meters can be removed.
1. Remove 3 screws fastening the bracket.
2. Remove 4 screws fastening the P.C.
Board and the MIC jack ass’y.
3. Pull out the wire connecting plate.
Main amp ass‘y
Remove 4 screws fastening the Dolby P.C.B.
Dolby P.C.B.
1. Remove 2 screws fastening the power
supply P.C.B. F
2. Remove 1 screw and washer fastening
the transistor.
3. Pull out the wire connector.
Power supply P.C.B.
Don’t power on and remove
the transistor fastening screw
when adjust or repair it.
Fig. 8
CD-1740/A/B/E/U
SG No. 4133
