JVC CD-1740 User Manual

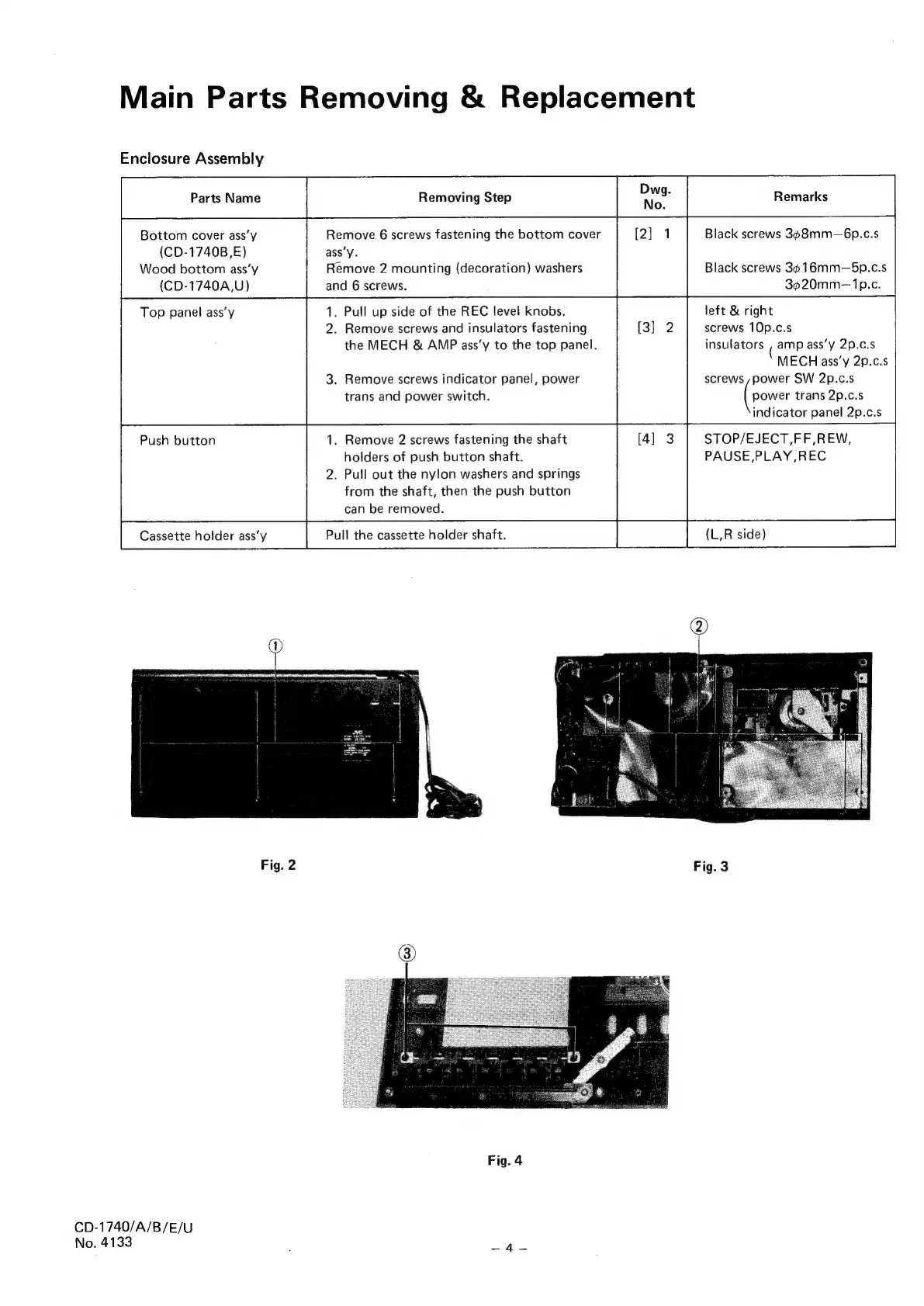

Main Parts Removing & Replacement
Enclosure Assembly
oe ei iz -
Bottom cover ass‘y Remove 6 screws fastening the bottom cover Black screws 368mm-—6p.c.s
(CD-1740B,E) ass’y.
Wood bottom ass’y Remove 2 mounting (decoration) washers
(CD-1740A,U) and 6 screws.
. Pull up side of the REC level knobs.
2. Remove screws and insulators fastening
the MECH & AMP ass’y to the top panel.
Black screws 36 16mm-—5p.c.s
3¢20mm-—1p.c.
left & right
screws 10p.c.s
insulators ( amp ass’y 2p.c.s
MECH ass’y 2p.c.s
mower SW 2p.c.s
Top panel ass’y
3. Remove screws indicator panel, power
trans and power switch. power trans 2p.c.s
indicator panel 2p.c.s
STOP/EJECT,FF,REW,
PAUSE,PLAY,REC
1. Remove 2 screws fastening the shaft
holders of push button shaft.
2. Pull out the nylon washers and springs
from the shaft, then the push button
can be removed.
Push button
Fig. 2 Fig. 3
Fig. 4
CD-1740/A/B/E/U
No. 4133 re
