Projection Screen Size (Diagonal
Length) of Aspect Ratio 16:9
40" (Approx. 101.6 cm)
50" (Approx. 127.0 cm)
60" (Approx. 152.4 cm)
70" (Approx. 177.8 cm)
80" (Approx. 203.2 cm)
90" (Approx. 228.6 cm)
100" (Approx. 254.0 cm)
110" (Approx. 279.4 cm)
120" (Approx. 304.8 cm)
130" (Approx. 330.2 cm)
140" (Approx. 355.6 cm)
150" (Approx. 381.0 cm)
160" (Approx. 406.4 cm)
170" (Approx. 431.8 cm)
180" (Approx. 457.2 cm)
190" (Approx. 482.6 cm)
200" (Approx. 508.0 cm)
Approximate Projecting Distance
W (Wide) - T (Tele)
(Approx. 1.58 m) - (Approx. 2.07 m)
(Approx. 1.99 m) - (Approx. 2.60 m)
(Approx. 2.39 m) - (Approx. 3.12 m)
(Approx. 2.79 m) - (Approx. 3.64 m)
(Approx. 3.19 m) - (Approx. 4.16 m)
(Approx. 3.60 m) - (Approx. 4.69 m)
(Approx. 4.00 m) - (Approx. 5.21 m)
(Approx. 4.40 m) - (Approx. 5.74 m)
(Approx. 4.81 m) - (Approx. 6.26 m)
(Approx. 5.21 m) - (Approx. 6.78 m)
(Approx. 5.61 m) - (Approx. 7.31 m)
(Approx. 6.02 m) - (Approx. 7.83 m)
(Approx. 6.42 m) - (Approx. 8.36 m)
(Approx. 6.82 m) - (Approx. 8.88 m)
(Approx. 7.23 m) - (Approx. 9.41 m)
(Approx. 7.63 m) - (Approx. 9.93 m)
(Approx. 8.03 m) - (Approx. 10.45 m)
Installing the Projector (continued)
● The projection screen sizes (recommended) and projecting distances in the table above are provided only as a guide.
Please use them as reference during installation.
The projected image size may vary depending on the manufacturing tolerance of the lens.

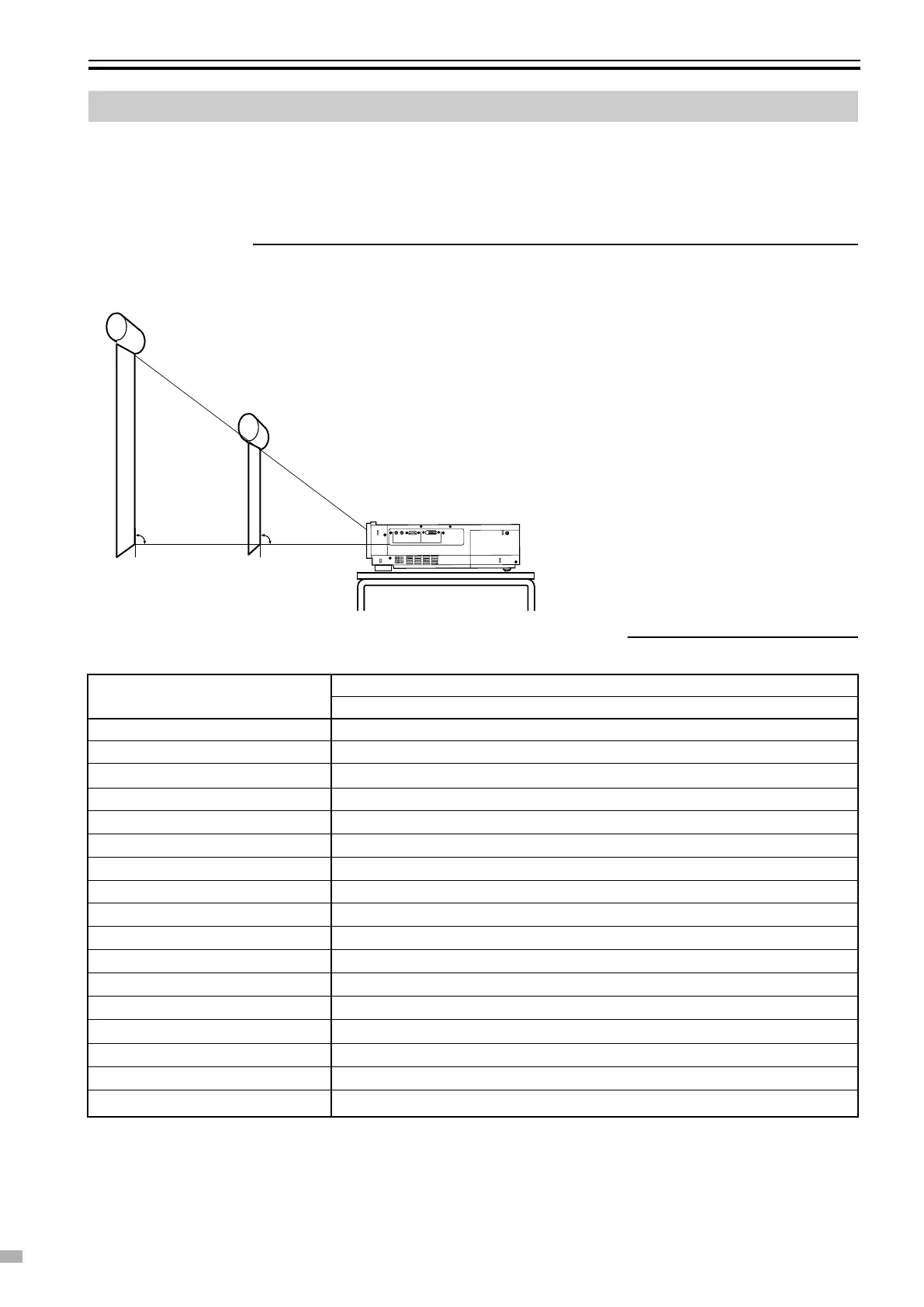

Relationship Between Projection Distance and Projection Screen Size
90˚ 90˚
Screen Installation
Screen
● This unit uses a 1.3x manual zoom lens for projection.
● Although the focusable projection distance is about 1.5 m to 12 m, the projection distance recommendable for performance
is about 2 m to 8 m. Install this unit within this range and adjust the screen size when the aspect ratio of the screen is 16:9.
Screen Size and Projection Distance
