JVC DLA-HD2KE - Page 39

39
181 20
67.5
298
89
267
15
27
38.2
298
300
360
292
92.3
8.2
115.9
65.4
25~56
109
36.2

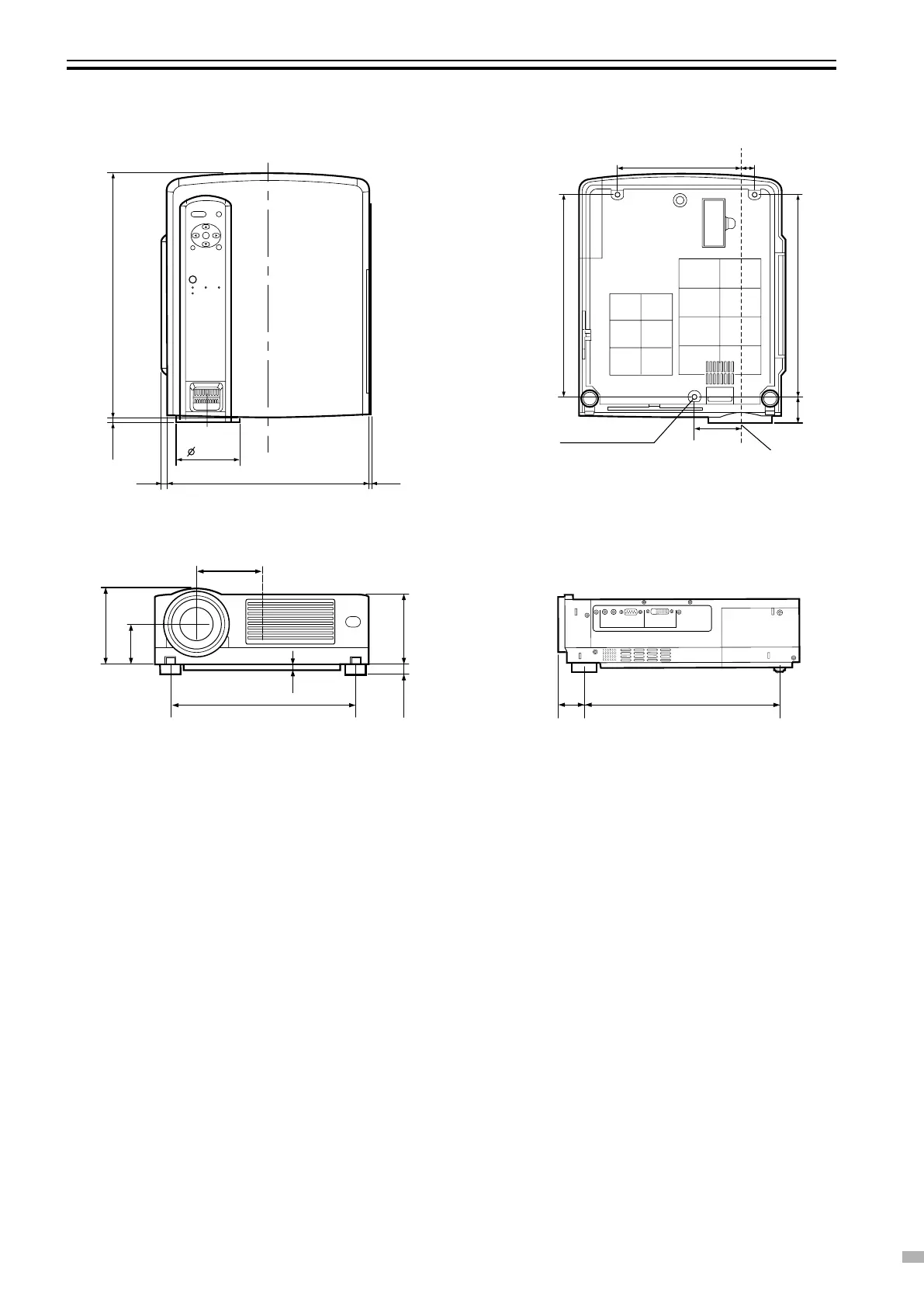

 Dimensions (Unit: mm)
Top
Front
Side
Bottom
M6 (Depth: 10 mm)
Mounting screw should be more than 6
mm but less than 10 mm in length.
Center of Lens
