z Set ACOMPB in the setting menu to ASCARTB. (pP27 - P)
z Set ACOMPB in the setting menu to ARGBB. (pP27 - P)
z For information on compatible input signals, see ASpecificationsB. (pP48)

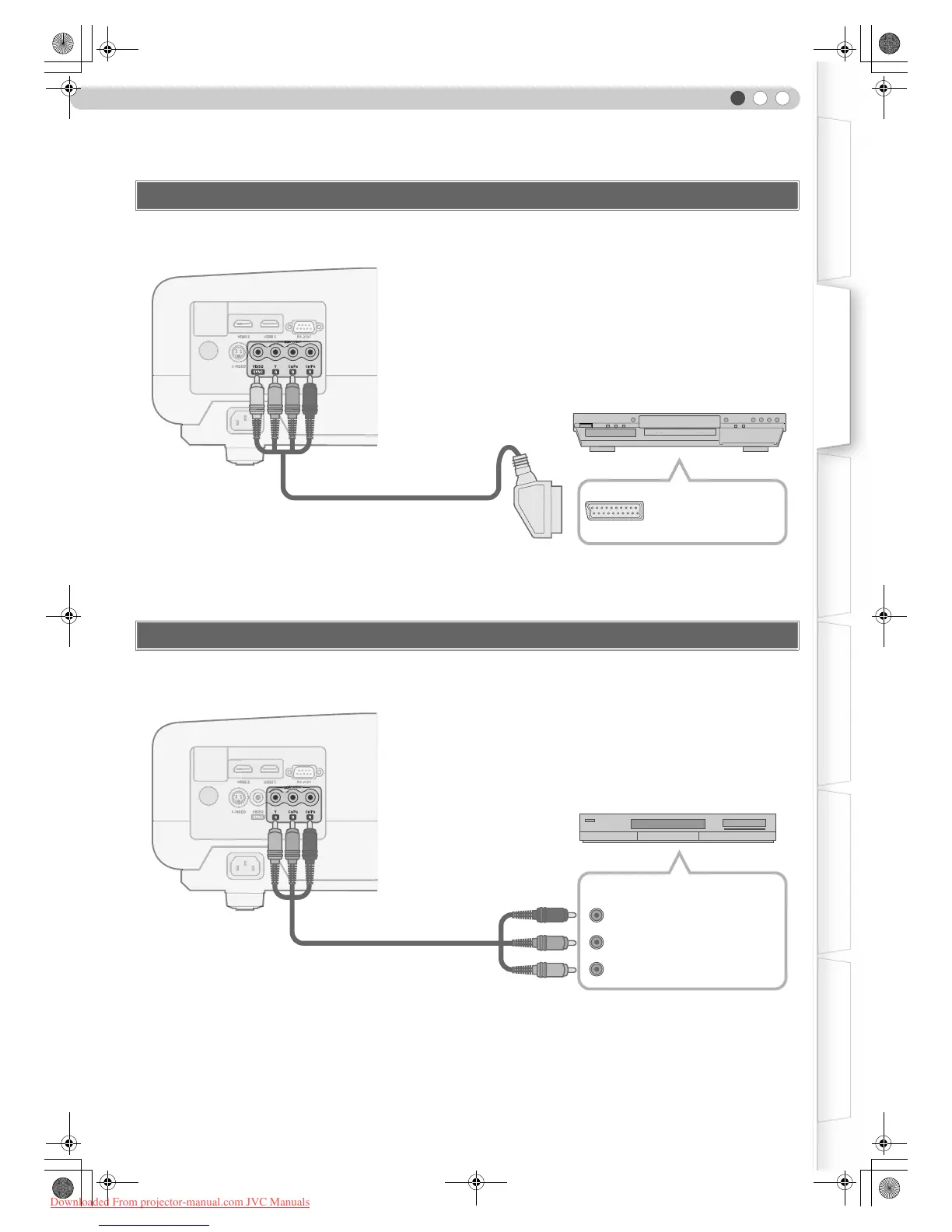

Connecting via SCART-RCA Cable
Connecting via RGB Video Cable
SCART-RCA cable
(sold separately)
DVD player for European market
To RGB video and sync signal input terminals
This unit
SCART terminal
RGB video output terminals
RGB video cable
(sold separately)
Device equipped with RGB output
To RGB video input terminals
This unit
R (Red)
B (Blue)
G (Green) (Includes sync signal)
