19
Getting Started Preparation Basic Operation Settings Troubleshooting Others
ENGLISH

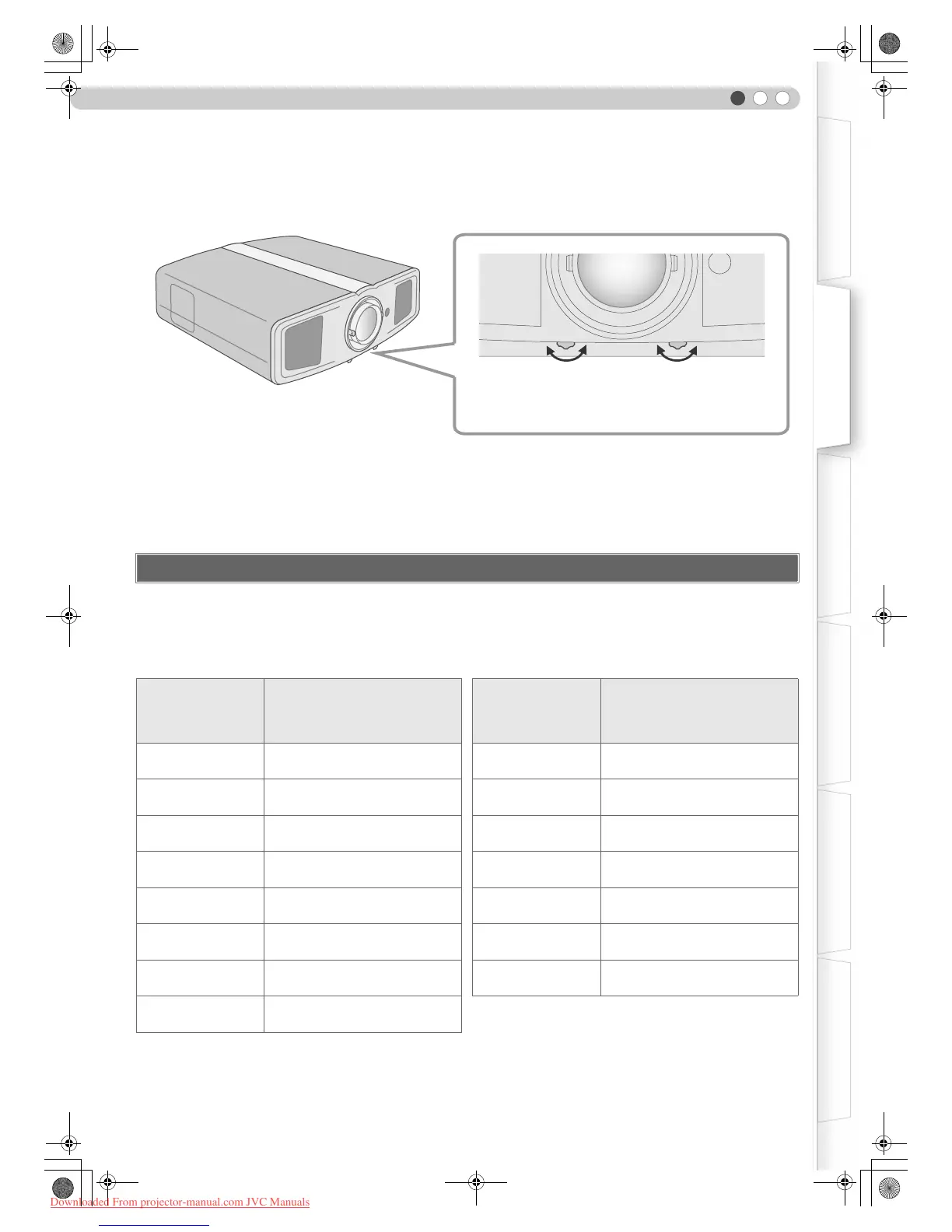

B Adjust such that the projected image is in the center of the screen
z It may be necessary to set APixel AdjustB in the setting menu after adjusting the image position. (pP26 - J)
Determine the distance from the lens to the screen to achieve your desired screen size.
This unit uses a 2.0x manual zoom lens for projection.
Relationship Between Projection Screen Size and Projection Distance
z
The projection distances in the table are provided only as a guide. Use them as a reference during installation.
z To adjust the installation, use a projected image of aspect ratio 16:9.
Screen Size and Projection Distance
Projection Screen
Size
(Diagonal Length)
Aspect Ratio 16:9
Approximate Projection Distance
W (Wide) f T (Tele)
Projection Screen
Size
(Diagonal Length)
Aspect Ratio 16:9
Approximate Projection Distance
W (Wide) f T (Tele)
60"
(Approx. 152.4 cm)
Approx.
1.78 m
f
Approx.
3.63 m
140"
(Approx. 355.6 cm)
Approx.
4.24 m
f
Approx.
8.54 m
70"
(Approx. 177.8 cm)
Approx.
2.09 m
f
Approx.
4.24 m
150"
(Approx. 381.0 cm)
Approx.
4.55 m
f
Approx.
9.16 m
80"
(Approx. 203.2 cm)
Approx.
2.40 m
f
Approx.
4.86 m
160"
(Approx. 406.4 cm)
Approx.
4.86 m
f
Approx.
9.77 m
90"
(Approx. 228.6 cm)
Approx.
2.71 m
f
Approx.
5.47 m
170"
(Approx. 431.8 cm)
Approx.
5.16 m
f
Approx.
10.38 m
100"
(Approx. 254.0 cm)
Approx.
3.01 m
f
Approx.
6.08 m
180"
(Approx. 457.2 cm)
Approx.
5.47 m
f
Approx.
11.00 m
110"
(Approx. 279.4 cm)
Approx.
3.32 m
f
Approx.
6.70 m
190"
(Approx. 482.6 cm)
Approx.
5.78 m
f
Approx.
11.61 m
120"
(Approx. 304.8 cm)
Approx.
3.63 m
f
Approx.
7.31 m
200"
(Approx. 508.0 cm)
Approx.
6.08 m
f
Approx.
12.23 m
130"
(Approx. 330.2 cm)
Approx.
3.93 m
f
Approx.
7.93 m
Moves the image up or
down
Moves the image to the
left or right
