12 EN
Page 12 March 11, 2004 8:46 pm
INDEX

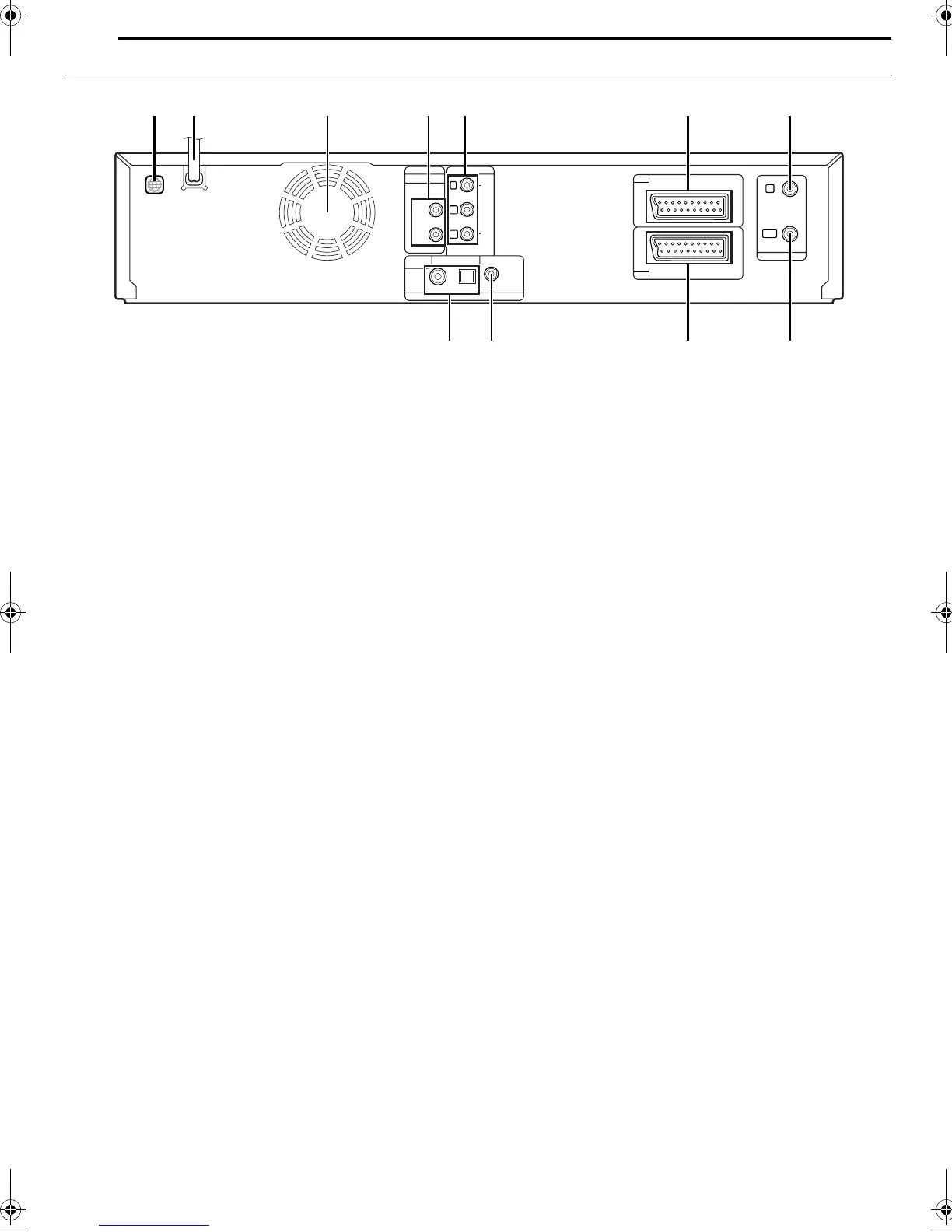

Rear View
A Region Number Label 墌 pg. 7
B AC Power Cord
墌 pg. 16
C Cooling Fan
● This prevents the temperature from rising inside the unit.
Do not remove it.
● Install the unit so as not to block the area around the fan.
● The cooling fan on the rear of the unit may be activated even if
the unit is turned off in the following cases;
— In the Auto Satellite Programme Recording standby mode
(
墌 pg. 48), slightlybefore the starting time of VPS/PDC
recording (
墌 pg. 44)
— If you connect the decoder or the satellite receiver to the L-2
IN/DECODER connector and if “L-2 SELECT” is set to
“DECODER” or “SAT VIDEO” or “SAT S-VIDEO”. (
墌 pg. 72)
— “JUST CLOCK” is set to “ON” (
墌 pg. 85)
(Set “JUST CLOCK” to “OFF” if you mind the noise of the fan.)
D Audio Output Connectors (AUDIO OUTPUT (LEFT/
RIGHT))
墌 pg. 16, 71
E Component Video Output Connectors (COMPONENT
VIDEO OUT) (DVD deck only)
墌 pg. 16
F L-1 Input/Output Connector (L-1 IN/OUT)
墌 pg. 16, 71,
76, 77
G Antenna Input Connector (ANTENNA IN)
墌 pg. 16
H Digital Audio Output Connectors
(DIGITAL AUDIO OUT (COAXIAL/OPTICAL)) (DVD
deck only)
墌 pg. 73, 77
I Satellite Control Connector (SAT CONTROL)
墌 pg. 21
J L-2 Input/Decoder Connector (L-2 IN/DECODER)
墌 pg. 21, 71, 76, 77
K Antenna Output Connector (ANTENNA OUT)
墌 pg. 16
L-1
L-2
IN/OUT
IN/DECODER
ANTENNA
IN
OUT
DVD/VCR
AUDIO OUT
LEFT
RIGHT
DIGITAL
AUDIO OUT
PCM/
STREAM
COAXIAL OPTICAL
DVD
DVD
SAT CONTROL
COMPONENT
VIDEO OUT
PB
PR
Y
2
A B C DFE
H
G
KI J
DR-MV1SE_04Name.fm Page 12 Thursday, March 11, 2004 8:46 PM
