Masterpage:Right0
EN 11
Filename [DR-MV1SE_04Name.fm]
Page 11 March 11, 2004 7:27 pm
INDEX

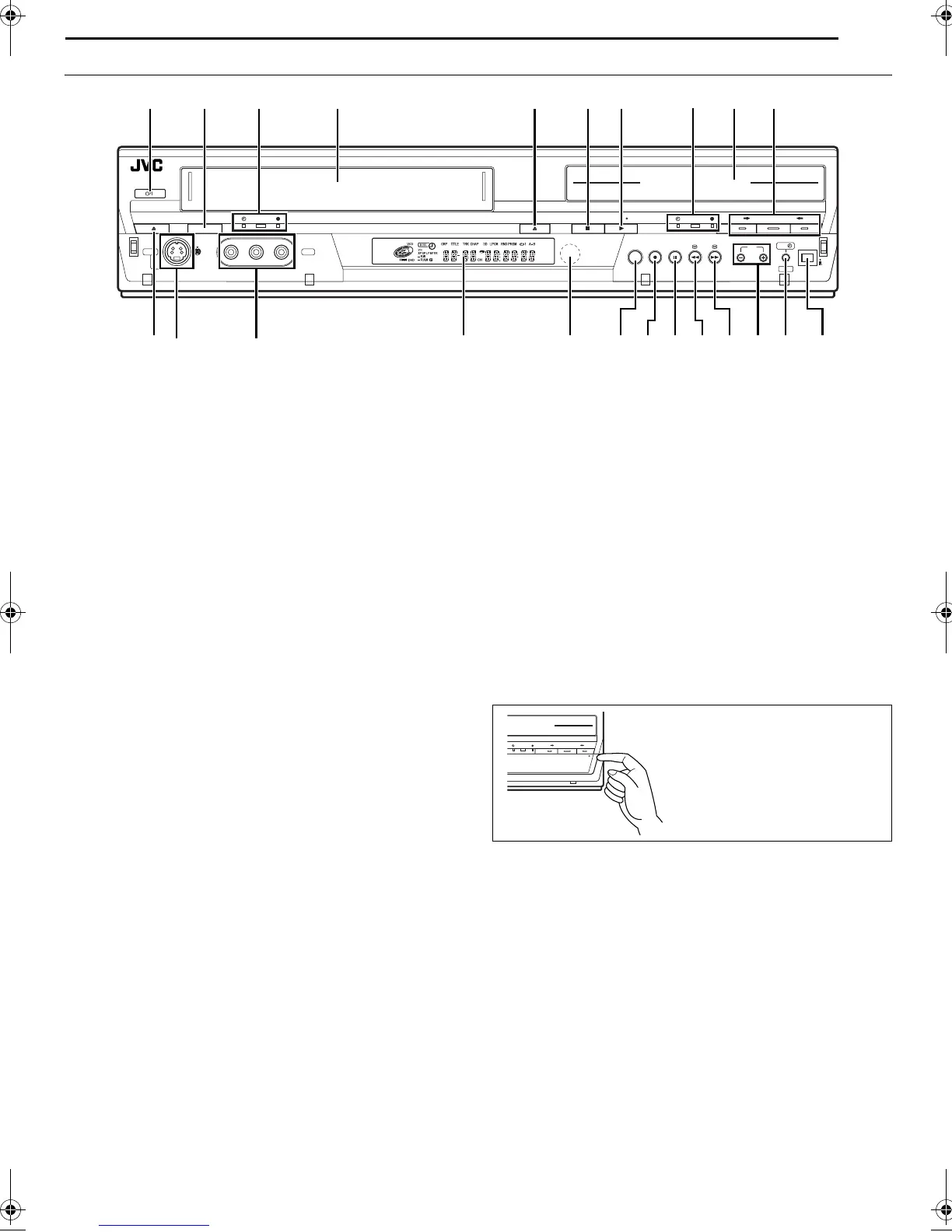

Front View
A Standby/On Button (1)
B VCR/DVD Button
墌 pg. 20
C VCR Timer Lamp (#)
墌 pg. 54
VCR Lamp
墌 pg. 49
VCR Recording Lamp (7)
墌 pg. 52
D Cassette Loading Slot
E Open/Close Button (x)
墌 pg. 9
F Stop Button (8)
墌 pg. 24, 49
G Play Button (4)
墌 pg. 24, 49
H DVD Timer Lamp (#)
墌 pg. 43
DVD Lamp
墌 pg. 20, 24
DVD Recording Lamp (7)
墌 pg. 40
I Disc Tray
J Dubbing Button (DUB)
墌 pg. 65
Dubbing Direction Button (VCR]/}DVD)
墌 pg. 65, 67
K Eject Button (x)
墌 pg. 49
L S-Video Input Connectors (S-VIDEO) (DVD deck only)
墌 pg. 70
M Video/Audio Input Connectors (VIDEO/AUDIO (L/R))
墌 pg. 70
When using a monaural audio cable, use AUDIO L (MONO) input
connector. In this case, the sound on the left channel is also
recorded on the right channel.
N Front Display Panel 墌 pg. 13
O Infrared Beam Receiving Window
P Remain Button (REMAIN)
墌 pg. 27, 41
Recording Mode Button (REC MODE)
墌 pg. 40, 52
Q Record Button (7)
墌 pg. 40, 52
R Pause Button (9)
墌 pg. 24, 49
S Reverse Search Button (3) (DVD deck)
墌 pg. 25, 32
Rewind Button (3) (VCR deck)
墌 pg. 49, 50
Reverse Slow Button (SLOW –)
墌 pg. 26
T Forward Search Button (5) (DVD deck)
墌 pg. 25, 32
Fast Forward Button (5) (VCR deck)
墌 pg. 49, 50
Forward Slow Button (SLOW +)
墌 pg. 26
U Channel Button (PR +/–)
墌 pg. 40, 52
V Automatic Satellite programme Recording Button
(SAT #) (DVD deck only)
墌 pg. 48
W DV Input connector (DV IN (i*)) (DVD deck only)
墌 pg. 69
* i (i.Link) refers to the IEEE1394-1995 industry specification and
extensions thereof. The i logo is used for products compliant with the
i.Link standard.
STANDBY/ON
DVD
S-VIDEO
VIDEO (MONO) L - AUDIO - R
VCR/DVD VCR
REMAIN
REC MODE SLOW
(–) (+)
PR
DV IN
SAT
DVD
DVD DVDVCR DUB
F-1
PONLMK Q S TRUWV
A B C D GFE IH J
To access covered connectors, pull
and open the connector cover.
SLOW
<< >>
PR
DV IN
SAT
DVD
DVD DVDVCR DUB
PULL-OPEN
