83
REFERENCES
ENGLISH
Compatible File System: FAT 32/16/12
SD
Capacity 8 Mbytes to 2 Gbytes
Data Transfer Rate Maximum 10 Mbps
USB Standards: USB 2.0 Full Speed
USB
Data Transfer Rate Full Speed: Maximum 12 Mbytes
Low Speed: Maximum 1.5 Mbytes
Compatible Device: Mass storage class
Compatible File System: FAT 32/16/12
Max. Current: Less than 500 mA/5V
Screen Size: 7 inch wide liquid crystal display
MONITOR
Number of Pixel: 336 960 pixels: 480 × 3 (horizontal) × 234 (vertical)
Drive Method: TFT (Thin Film Transistor) active matrix format
Color System: NTSC/PAL
Aspect Ratio: 16:9 (wide)
Power Requirement: Operating Voltage: DC 14.4 V (11 V to 16 V allowance)
GENERAL
Grounding System: Negative ground
Allowable Storage Temperature: –10°C to +60°C
Allowable Operating Temperature: 0°C to +40°C
Dimensions (W × H × D):
• With trim plate and
sleeve attached
Installation Size (approx.): 182 mm × 111 mm × 160 mm
Panel Size (approx.): 188 mm × 117 mm × 10 mm
Mass (approx.): 3.3 k g (including trims and sleeve)
CAUTION:
When ejecting the monitor, leave an
open space for the monitor to come out. If you do
not, the monitor may obstruct the steering wheel
and gearshift lever operations, and this may result

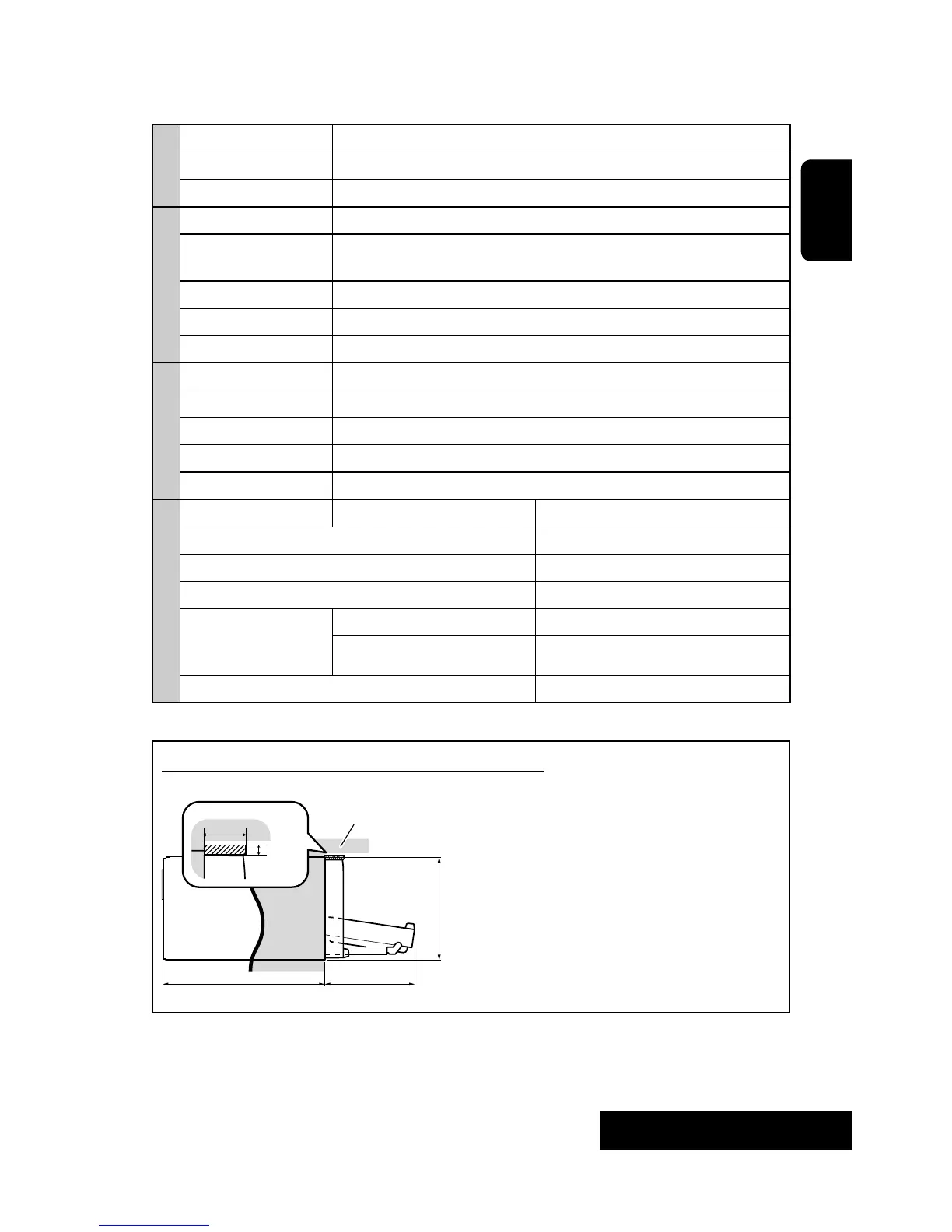

Required space for installation and the monitor ejection
in a traffic accident.
Unit: mm
160 91.3
20
100
Design and specifications are subject to change without notice.
Dashboard
4
