PLAYBACK Connections
These are some basic types of connections. When making the connections, refer also to your VCR and TV
instruction manuals.
A/V cable
(provided)
Yellow to
Video Output
TV
VCR
Connector cover*
To TV or VCR
Yellow to VIDEO

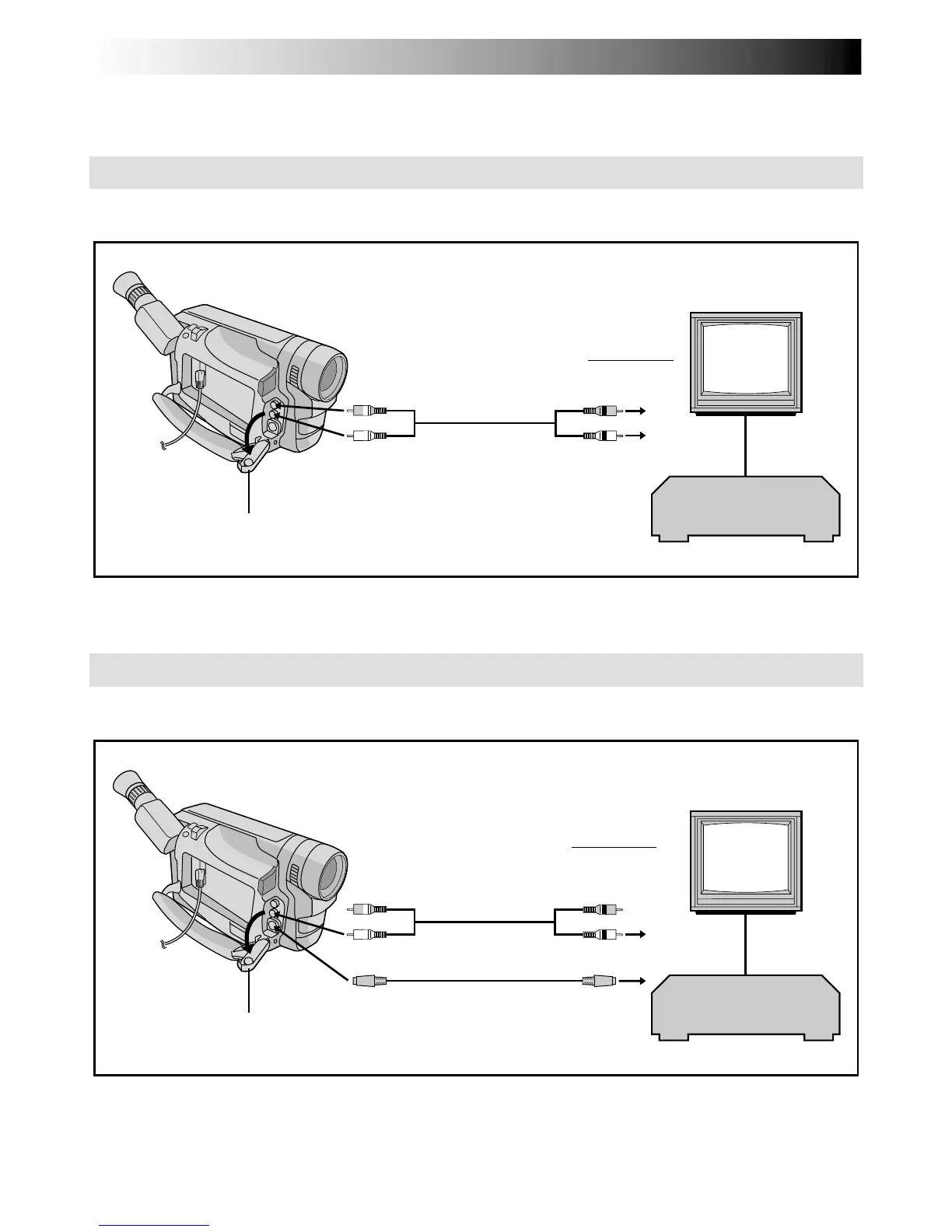

A. Connection to a TV or VCR equipped only with A/V input connectors
Use the provided Audio/Video (A/V) cable.
White to
Audio Output
White to AUDIO
(L/MONO)
Yellow: not
connected
B. Connection to a TV or VCR equipped with an S-VIDEO IN and A/V input connectors
Use the provided Audio/Video (A/V) cable and S-Video cable.
Yellow: not
connected
To S-VIDEO
IN
To S-Video
Output
To TV or VCR
* When connecting the cables, open this cover.
Connector cover*
White to
AUDIO in
S-Video cable
(provided)
White to
Audio Output
A/V cable
(provided)
TV
VCR
* When connecting the cables, open this cover.
